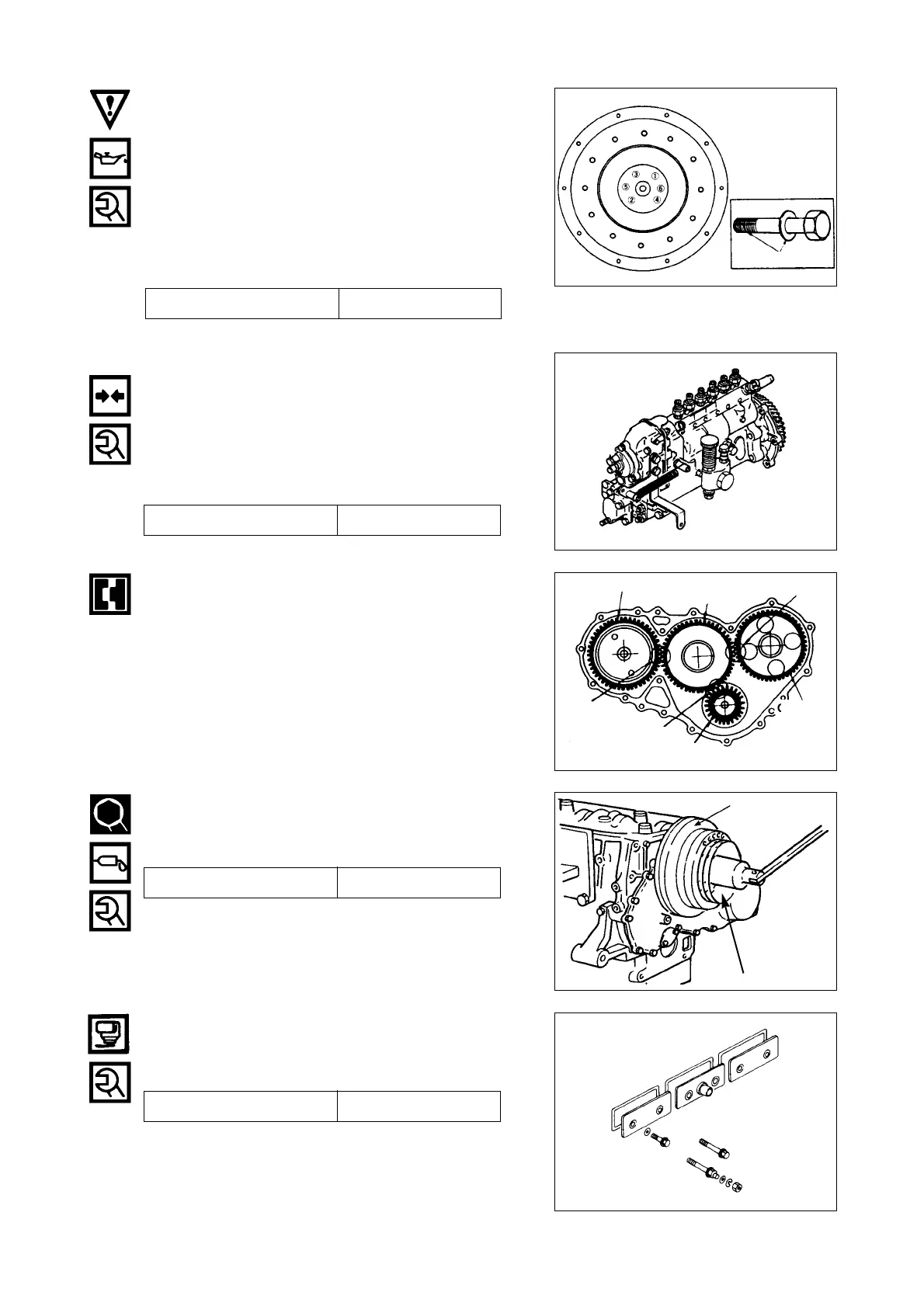

Flywheel
1) Apply engine oil on the flywheel bolt.
2) Orderly tighten the fly wheel bolt.(see figure)
Injection Pump
Tighten the injection pump bolt as it is a
specified torgue after assemble the injection
pump that it was agreed idler gear angle "C"
carving seal and injection pump driving gear
angle "C".
Crank shaft pulley nut
Tighten a nut with wrench.
EJM2142S
EJM1029S
EJM2130S
EJM2144S
EJM2145S
Bolt Torque 22.3±2.2 kg∙m
Bolt Torque 2.6±0.5 kg∙m
Torque 60.0±5.0 kg∙m
Tappet Chamber Cover
Tighten a bolt spread sealant at the gasket.
Torque 2.6±0.5 kg∙m
Injection pump
gear
Idler gear
�B�mark
�C�mark
Camshaft
gear
�A�mark
Crankshaft gear
Camshaft
gear
Lubricate with enging oil
pulley
wrench
