G424 Service Manual Governing System104
Air Governor
Disassembly and Reassembly

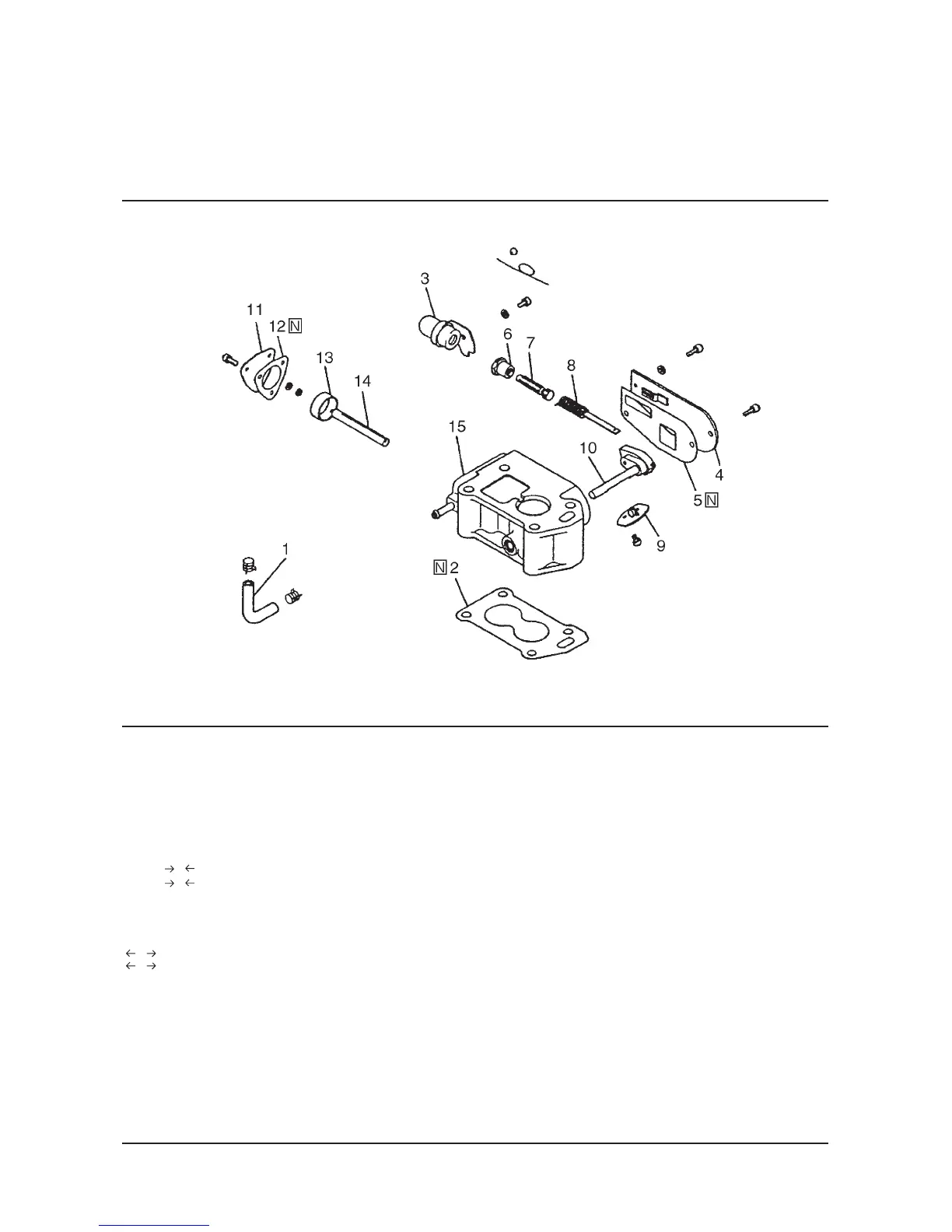

Disassembly steps
1. Ventilation hose
2. Gasket
3. Sealing cap
4. Cover plate assembly
5. Gasket
6. Adjusting nut
7. Adjusting screw
8. Plate assembly
9. Valve assembly
10. Valve shaft assembly
11. Piston cover
12. Gasket
13. Stabilizer piston
14. Piston shaft
15. Governor body
A
A
A
B
Disassembly Service Points
Caution: Since the air governor has been adjusted and sealed
in the manufacturer’s factory to conform to the specifications, it
should not be disassembled in general cases. Like any other
sealed components, the air governor should not be
disassembled anywhere except the locations where a warranty
claim decision is authorized. In addition, the cam on the throttle
valve shaft should never be removed.
6EN0862
