G424 Service Manual Gasoline Fuel System66

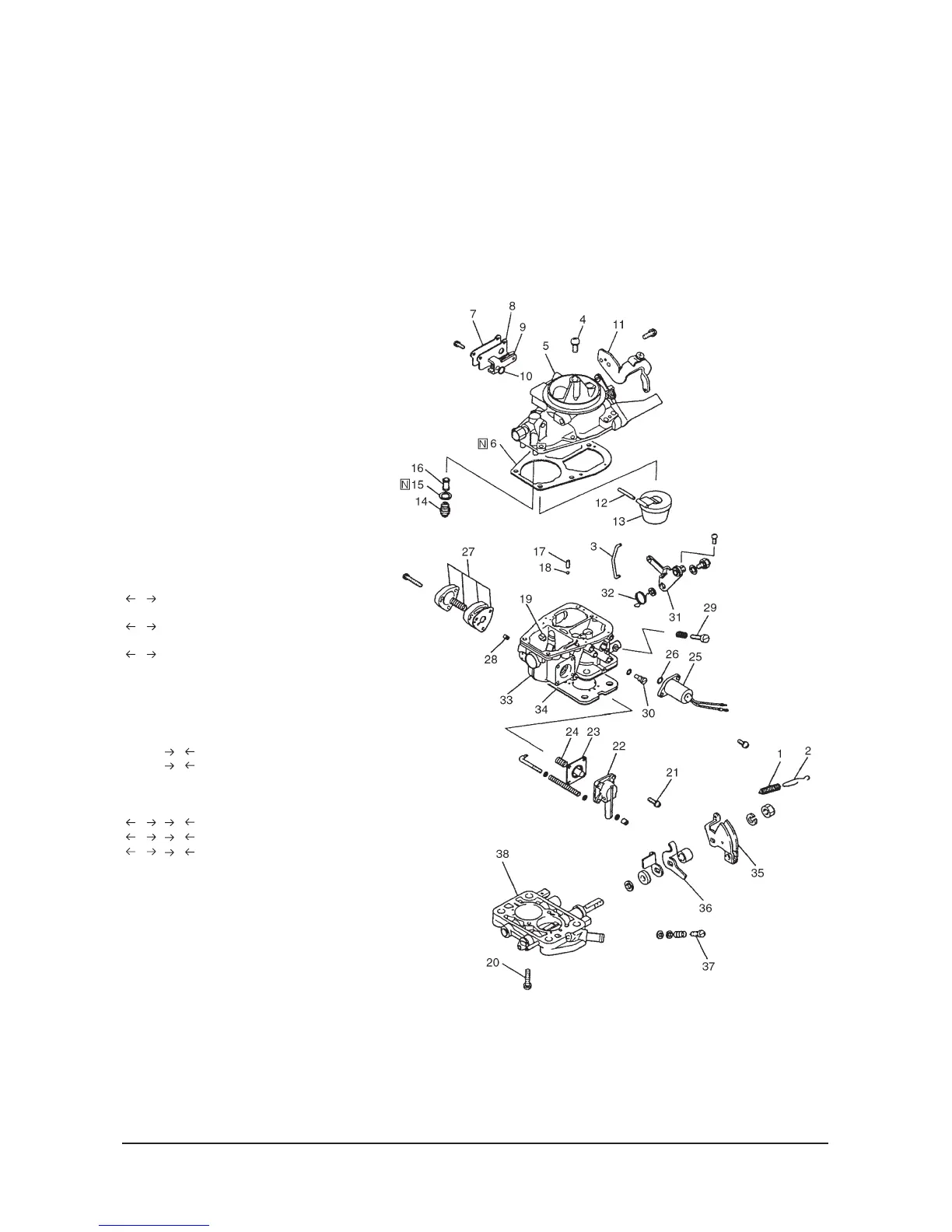

Gasoline Carburetor
Disassembly and Reassembly
Disassembly steps
1. Throttle return spring
2. Damper spring
3. Choke rod
4. Screw
5. Float chamber cover
6. Float chamber cover gasket
7. Cover
8. Packing
9. Bimetal
10. O-ring
11. Accelerator wire bracket
12. Float pin
13. Float
14. Needle valve assembly
15. Packing
16. Filter
17. Weight
18. Ball
19. Main jet
20. Screw
21. Screw
22. Accelerator pump cover
23. Diaphragm
24. Spring
25. Fuel cut solenoid
26. O-ring
27. Enrichment
28. Enrichment jet
29. Speed adjust screw
30. Pilot jet
31. Choke lever
32. Spring
33. Main body
34. Insulator gasket
35. Throttle lever
36. Throttle control lever
37. Mixture adjusting screw
38. Throttle body
C
C
B
B
A
A
A
B
C
C
D
6En0850
