Daewoo GC25E-3 Service Manual

G424 Service Manual Base Engine Service Procedure125
DEN0602
6EN0571
6EN0572
6EN0573

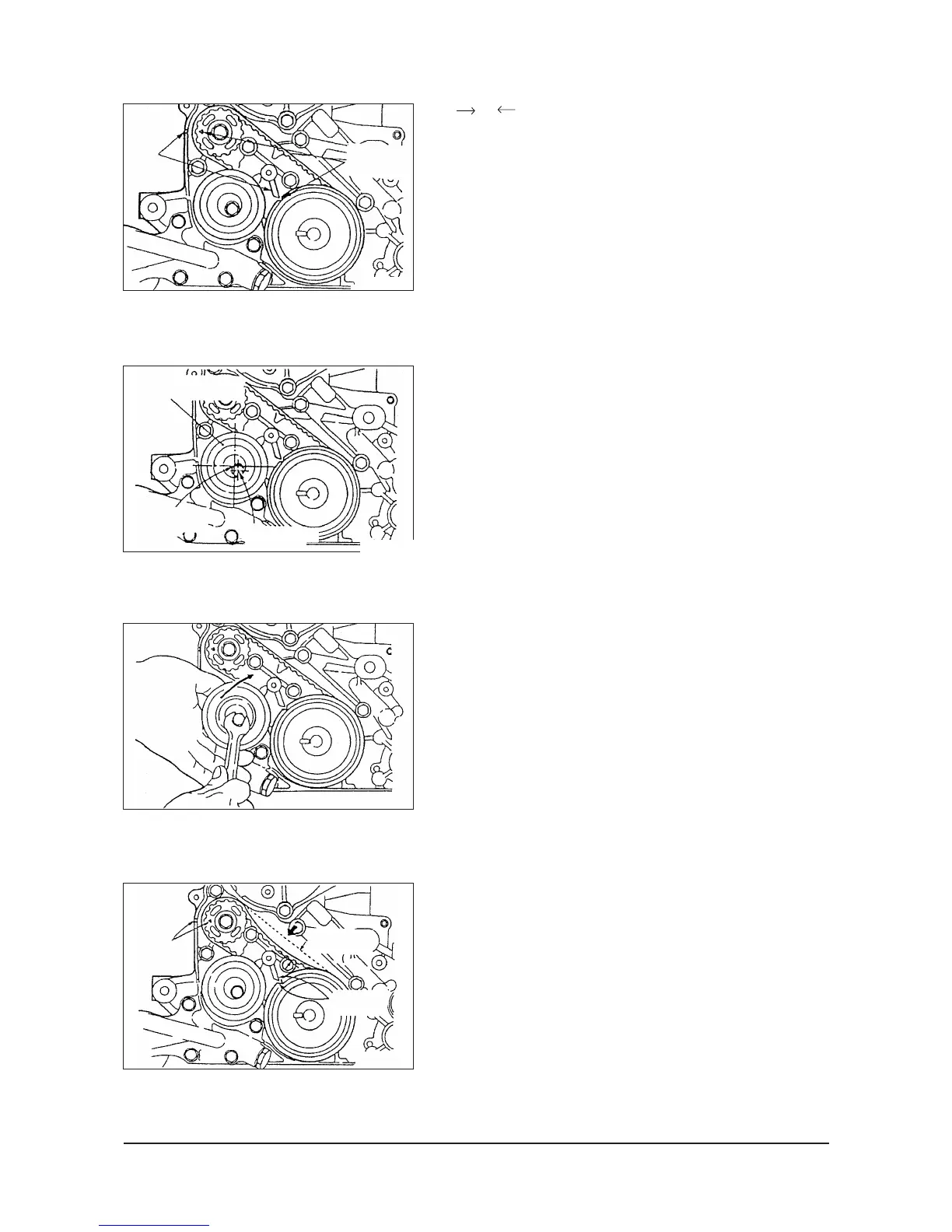

D Timing belt “B” installation
(1) Align timing mark on the crankshaft sprocket “B” and
counterbalance shaft sprocket with the marks on the front
case respectively.
(2) Install the timing belt “B” on the crankshaft sprocket “B”
and counterbalance shaft sprocket. There should be no
slack on the tension side.
(3) Make sure that the relationship between the tensioner
pulley center and the bolt center is as shown in the
illustration.
(4) Move the tensioner “B” in the direction of arrow while
lifting with a finger to give a sufficient tension to the
tension side of timing belt. In this condition, tighten bolt to
secure tensioner “B”. When the bolt is tightened, use care
to prevent shaft from turning together. If shaft is turned
together, belt will be over tensioned.
(5) Check to ensure that timing marks on sprockets and front
case are in alignment.
(6) Press with index finger the center of span on the tension
side of timing belt “B”. The belt must deflect 5 to 7 mm.
[0.196 to 0.276 in].
timing
marks
Tensioner “B”
Center of
tensioner
paller
Center of bolt
Timing
marks
(on fron
case)
Timing
marks
Belt
deflection
timing
marks
