G424 Service Manual Engine System25

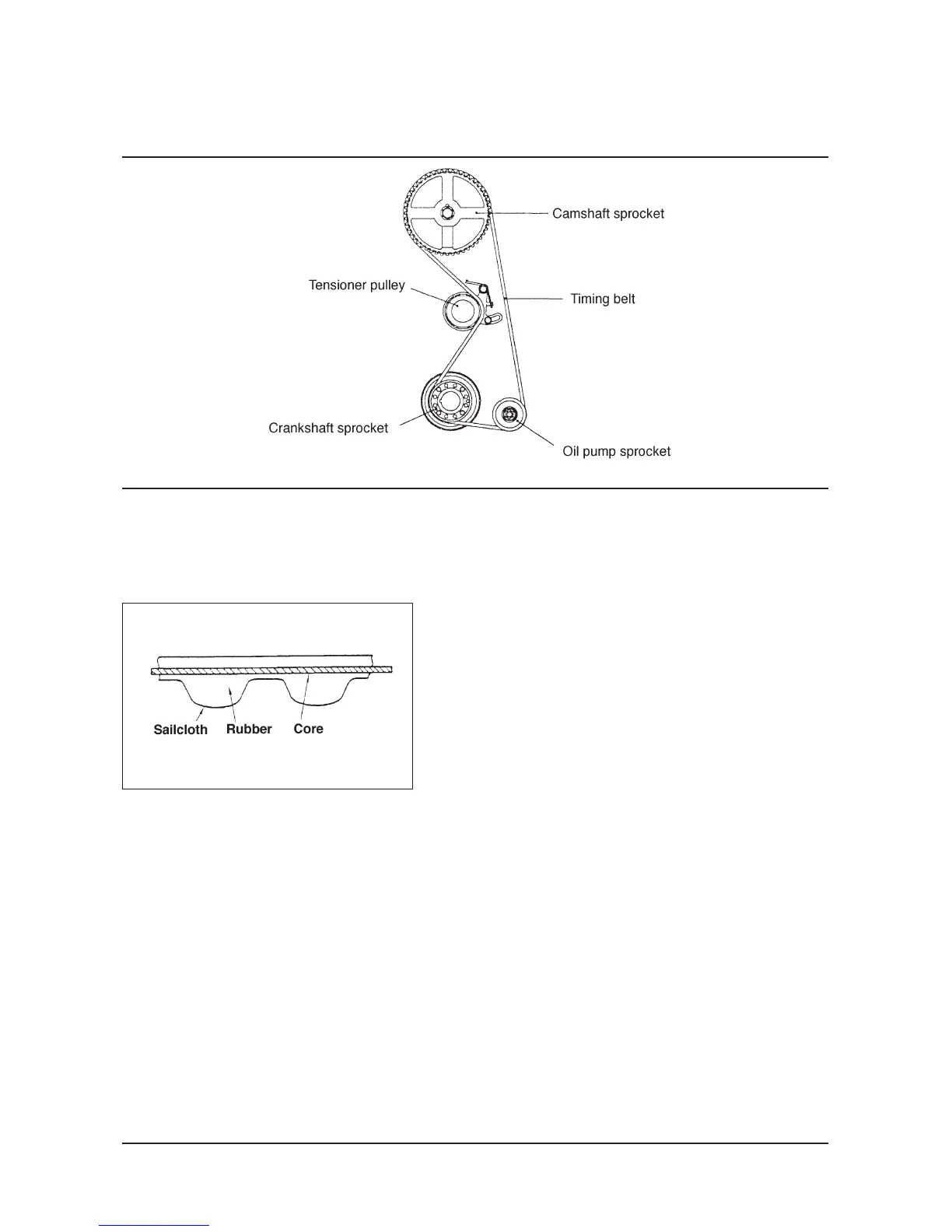

Timing System
The timing belt is meshed with the sprockets, the
crankshaft sprocket becomes the drive sprocket, and
thus functions to drive the camshaft and oil pump.
Timing belt
The timing belt is the cogged type, using rubber as its basic
material, and it employs a high-strength glass fiber core
which does not expand or contract.
The features of the cogged-type belt compared to a chin are
no expansion/contraction, low noise level, no necessity for
lubrication, light weight, etc.
