G424 Service Manual LPG Fuel System84

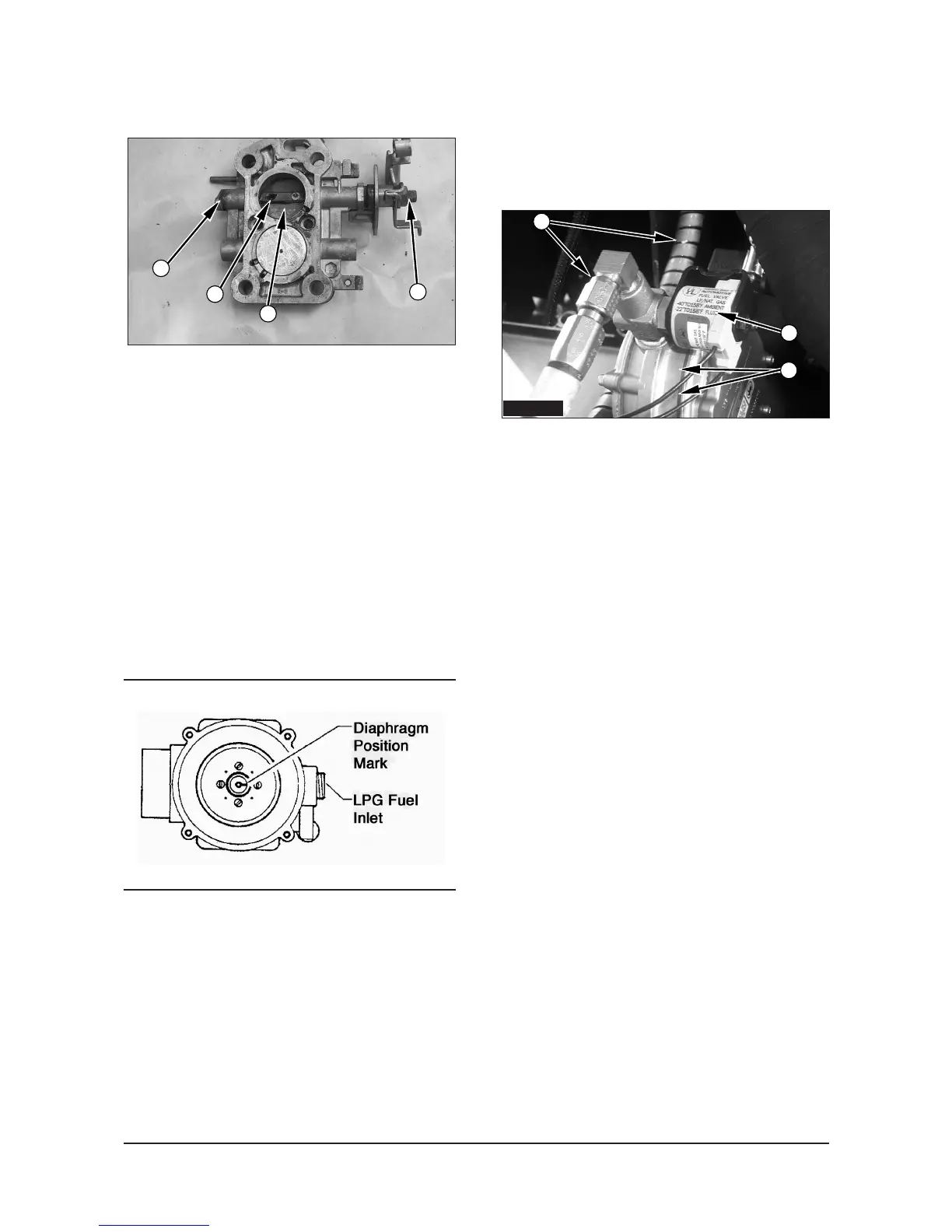

Assemble LP Gas Carburetor
1. Check all parts for damage. Replace damaged
parts with new as necessary.
2. Make sure all parts are clean and free of dirt and
foreign material.
3. Put throttle shaft (17) in position in the throttle
body, and install stop lever (16).
4. Put throttle plate (15) in position and install the two
screws.
5. Assemble in reverse order of disassembly.
NOTE : Air valve diaphragm must be oriented with
position mark pointing toward LPG inlet.
6. See Testing & Adjusting for proper test and adjust
procedures.
End By:
a. Install LP Gas Carburetor.
LP Gas Fuelock
Remove & Install LP Gas Fuelock
1. Disconnect fuel lines (1).
2. Disconnect wire (2).
3. Remove fuelock (3).
NOTE: For the installation of the LP gas fuelock,
reverse the removal steps.
Apply loctite PST or equivalent to fuelock pipe
threads before installation.
