G424 Service Manual LPG Fuel System85
LP Gas Converter

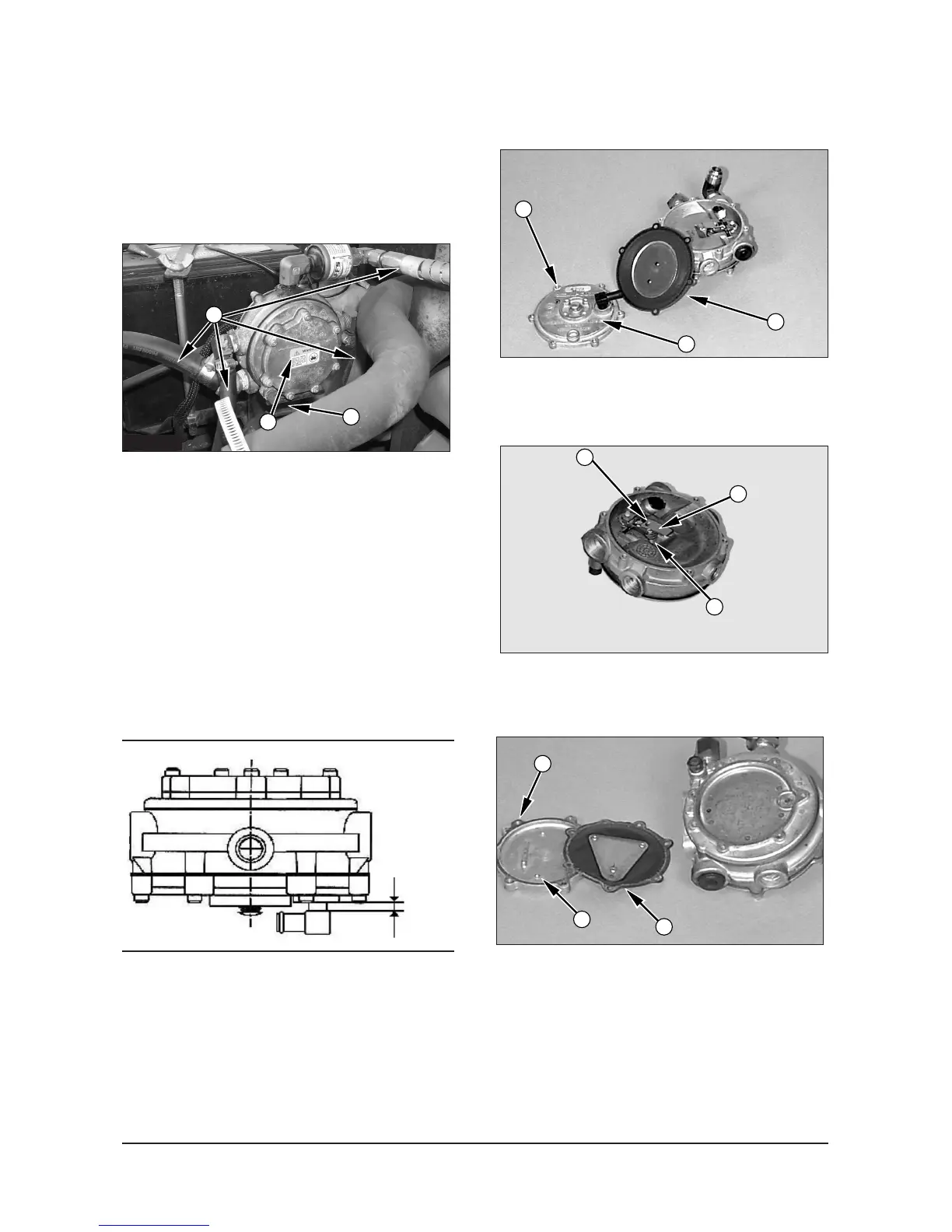

Remove & Install LP Gas Converter
Start by : Remove LP Gas Fuelock.
1. Remove lines (1).
2. Remove two bolts and nut (2).
3. Remove LP gas converter (3).
NOTE : For the installation of the LP gas converter,
reverse the removal steps.
NOTE : When you assemble the elbow on LP
converter, the elbow must be installed on the
converter, keeping the minimum distance shown in the
figure, to prevent contact with the secondary
diaphragm.
Disassembly of LP Gas Converter
1. Remove six screws (1), cover (2), and diaphragm
(3) from the converter.
2. Remove screw (4), secondary lever (5), the seat,
the pin and the spring (6).
3. Turn the converter body around, remove the seven
screws (7), back cover (8), and the diaphragm (9).
To Next Page
