G424 Service Manual Base Engine Service Procedure121
6EN0716
6EN0884
6EN0663
6EN0868

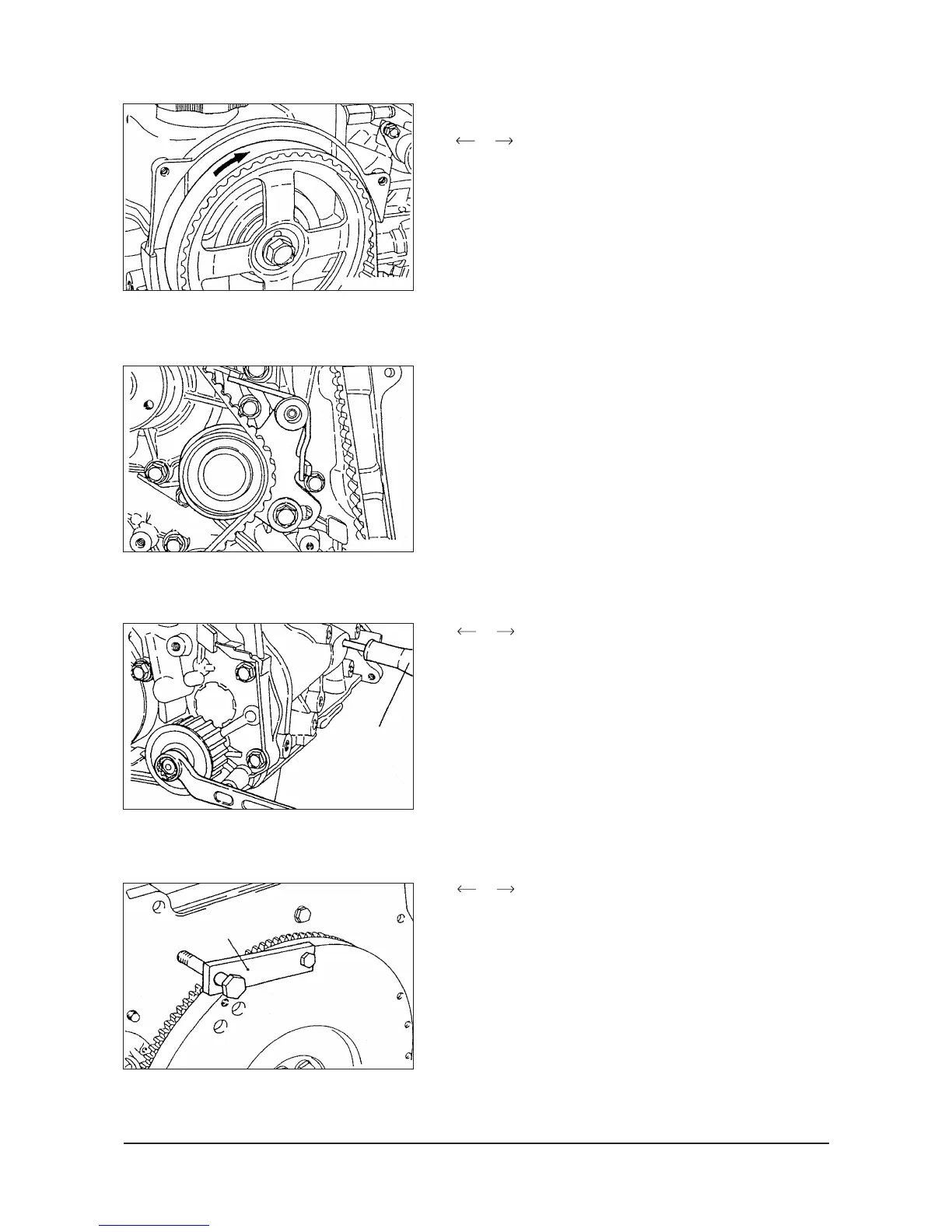

Removal Service Points
A Timing belt removal
(1) When the timing belt is to be re-used, make an arrow
mark on the back surface on the belt to indicate the
rotating direction with a chalk or the like so that the belt
can be installed in the same direction.
(2) Move the timing belt tensioner upward and temporarily
tighten the tensioner lock bolt.
(3) Remove the timing belt.
B Oil pump sprocket removal
(1) Remove the plug on the left side of cylinder block.
(2) Insert a screwdriver (shank diameter 8 mm[0.31 in.]) to
block the counterbalance shaft.
(3) Remove the nut.
(4) Remove the oil pump sprocket.
C Crankshaft bolt removal
(1) Hold the flywheel with the special tool as shown.
(2) Remove the crankshaft bolt.
Screw driver
MD998781
To Next Page
