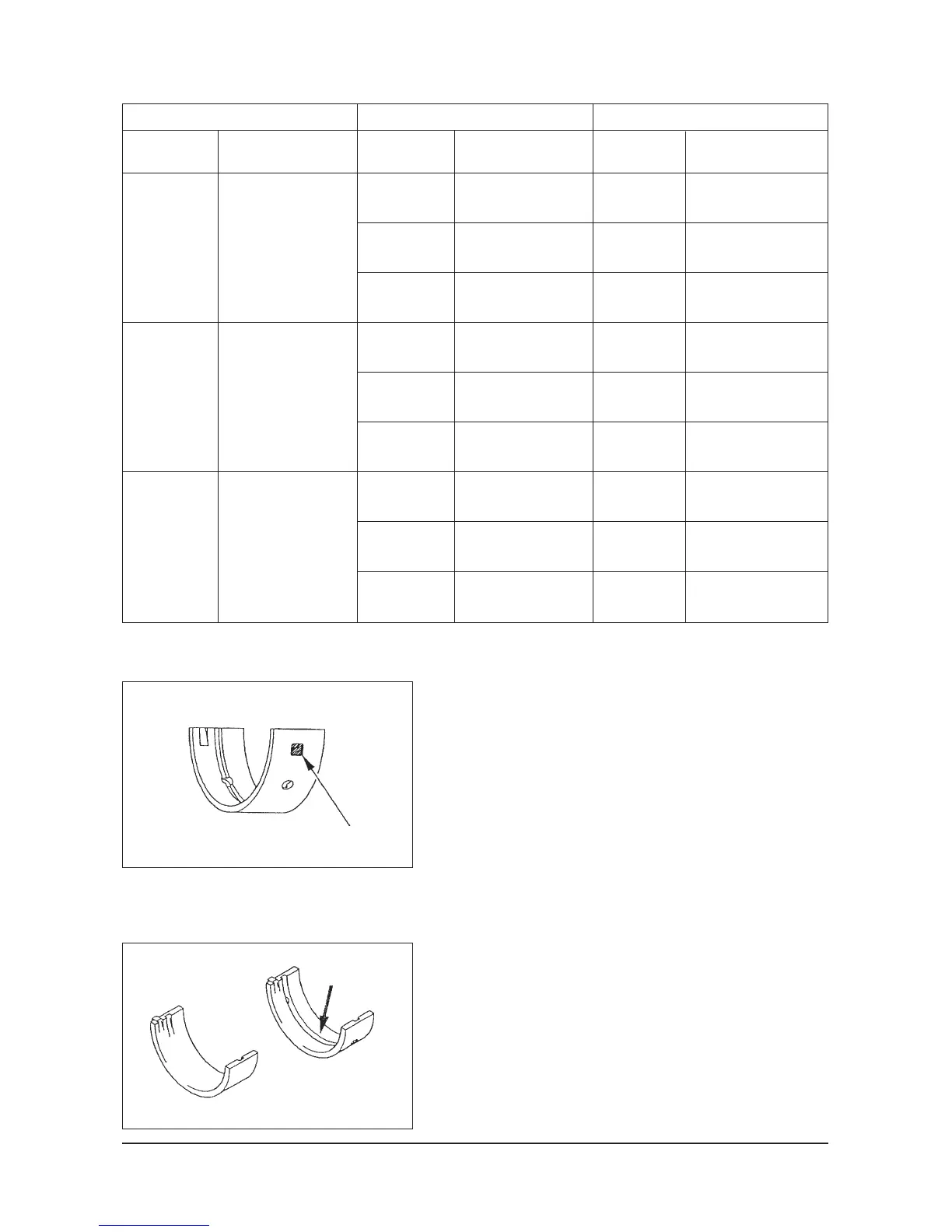

G424 Service Manual Base Engine Service Procedure166
Crankshaft journal Cylinder block bearing support section Crankshaft bearing
Identification O.D. mm (in.) Identification I.D. mm (in.) Identification
Thickness mm(in.)
color mark mark
Yellow 0 61.000 to 61.006 1 1.988 to 1.991
(2.40157 to 2.40181) (0.07827 to 0.07839)
56.994 to 57.000 1 61.006 to 61.012 2 1.991 to 1.994
(2.24385 to 2.24409) (2.40181 to 2.40204) (0.07839 to 0.07850)
2 61.012 to 61.018 3 1.994 to 1.997
(2.40204 to 2.40228) (0.07850 to 0.07862)
None 0 61.000 to 61.006 2 1.991 to 1.994
(2.40157 to 2.40181) (0.07839 to 0.07850)
56.988 to 56.944 1 61.006 to 61.012 3 1.994 to 1.997
(2.24362 to 2.24189) (2.40181 to 2.40204) (0.07850 to 0.07862)
2 61.012 to 61.018 4 1.997 to 2.000
(2.40204 to 2.40228) (0.07862 to 0.07874)
White 0 61.000 to 61.006 3 1.994 to 1.997
(2.40157 to 2.40181) (0.07850 to 0.07862)
56.982 to 56.988 1 61.006 to 61.012 4 1.997 to 2.000
(2.24338 to 2.24362) (2.40181 to 2.40204) (0.07862 to 0.07874)
2 61.012 to 61.018 5 2.000 to 2.003
(2.40204 to 2.40228) (0.07874 to 0.07886)
6EN1096
6EN1558
(2) Install the bearing having an oil groove to the cylinder
block.
(3) Install the bearing having no oil groove to the bearing
caps.
Identification mark of
color
Groove
for upper
for lower
To Next Page
