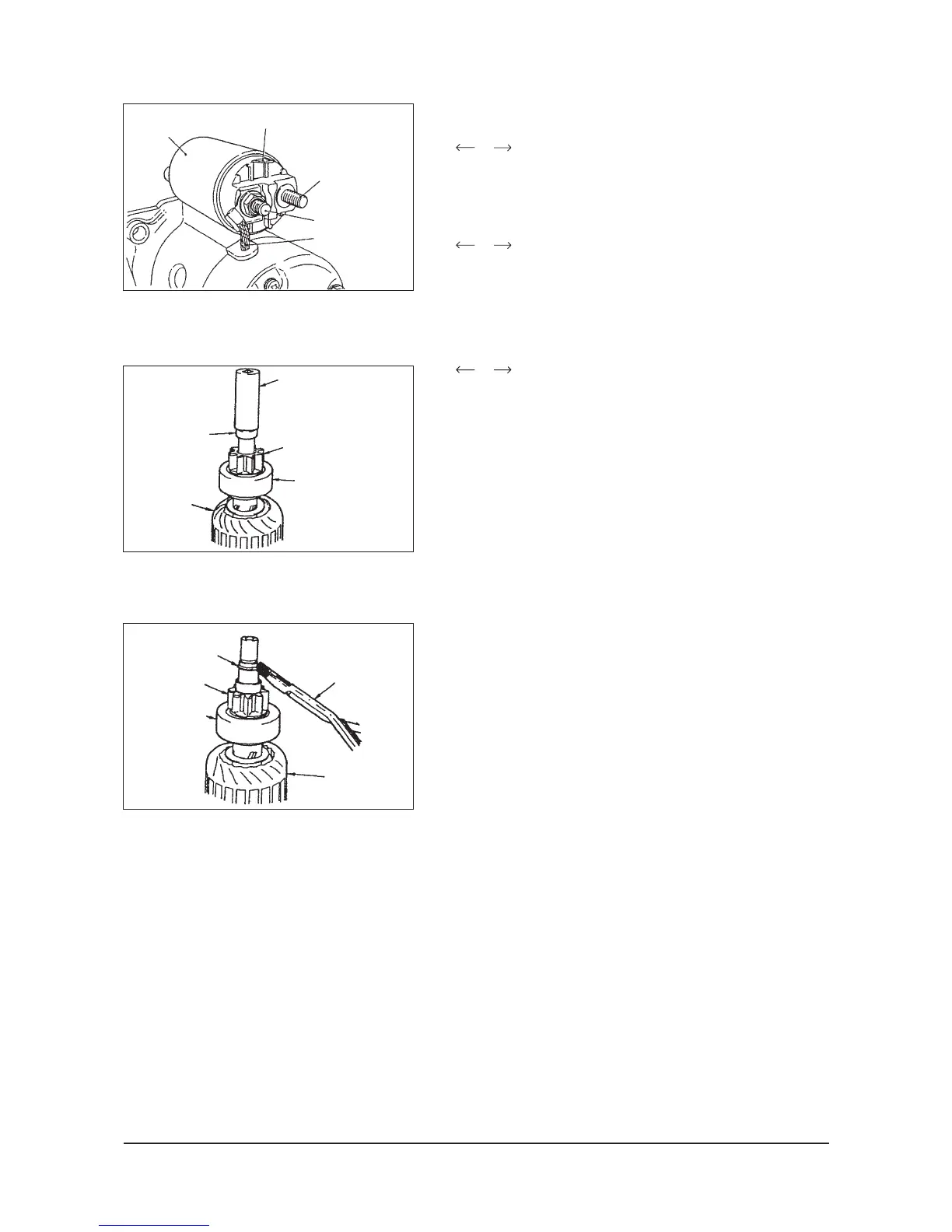

Disassembly Service Points
A Magnetic switch removal
Disconnect the field coil wire from terminal M of the magnetic
switch
B Armature/ball removal
Caution: When removing the armature, take care not to lose
the ball (Which is used as a bearing) in the armature end.
C Snap ring/stop ring removal
(1) Press stop ring off snap ring with a suitable socket.
(2) Remove snap ring with snap ring pliers and then remove
stop ring and overrunning clutch.
Cleaning of Starter Motor Parts
Do not immerse the parts in cleaning solvent. Immersion of
the yoke, field coil assembly and/or armature will damage to
insulation.
Do not immerse the drive unit cleaning solvent.
Overrunning clutch is pre-lubricated at the factory and
solvent will wash lubricant form clutch.
The drive may be cleaned with a brush moistened with
cleaning solvent and wiped dry with a cloth.
“S” teminal
“B” terminal
“M” terminal
Fieldcoid wire
Maguetic switch
Socket
Pinion gear
Overrunning
clutch
Stop ring
Armature
Snap ring
Snap ring
pliersa
Armature
Pinion
gear
Overrunning
clutch
