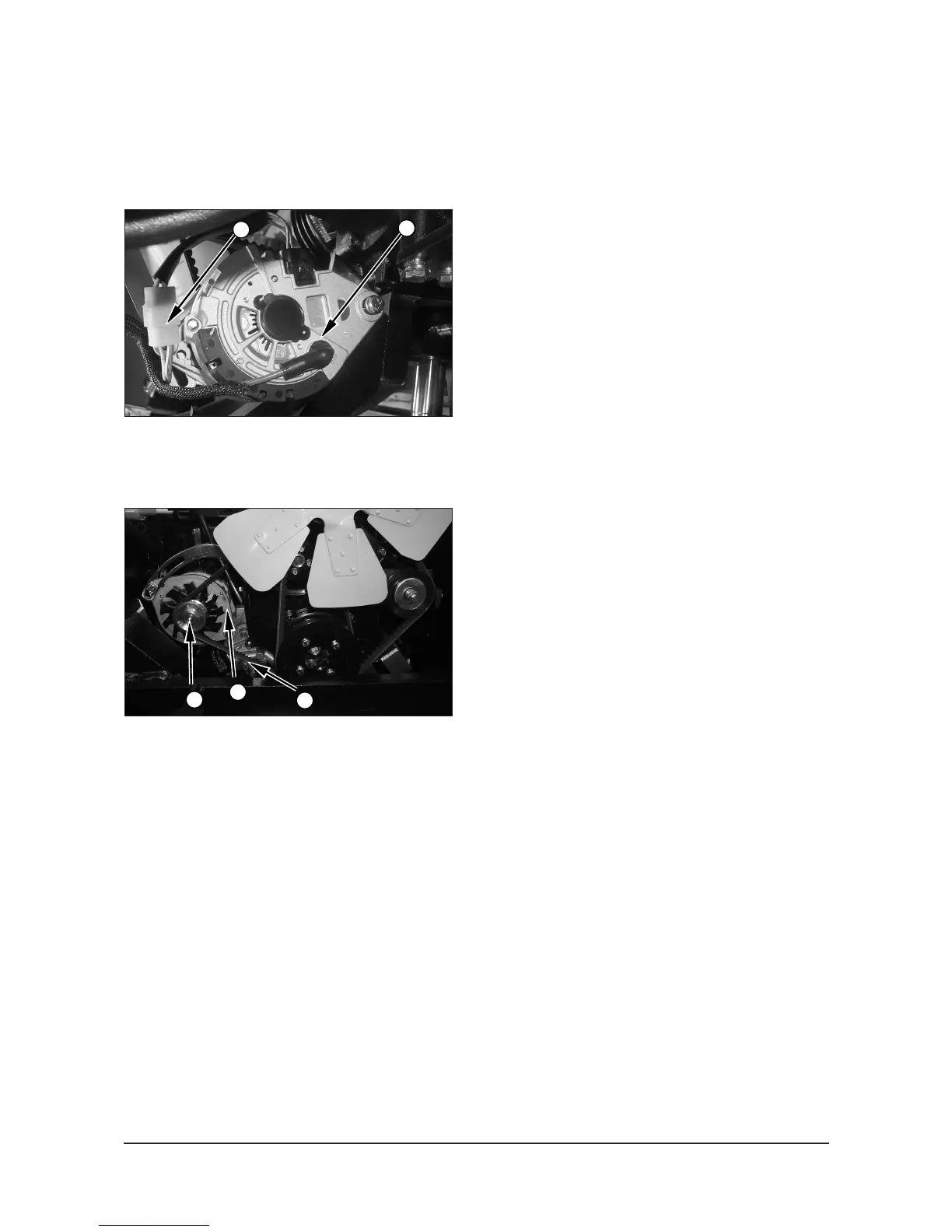

G424 Service Manual
Charging System
49
Remove & Install
Alternator
NOTE :
Hood, seat and dry air cleaner have been
removed for photographic purposes.
1.
Disconnect wire (1) and wire (2)
2.
Remove bolt and washer (3), and remove belt (4).
3.
Remove alternator (5).
NOTE :
For the installation of the alternator
, reverse
the removal steps.
1
2
4
3
5
