G424 Service Manual Ignition System57
1EL0052
1EL0053
1EL0054

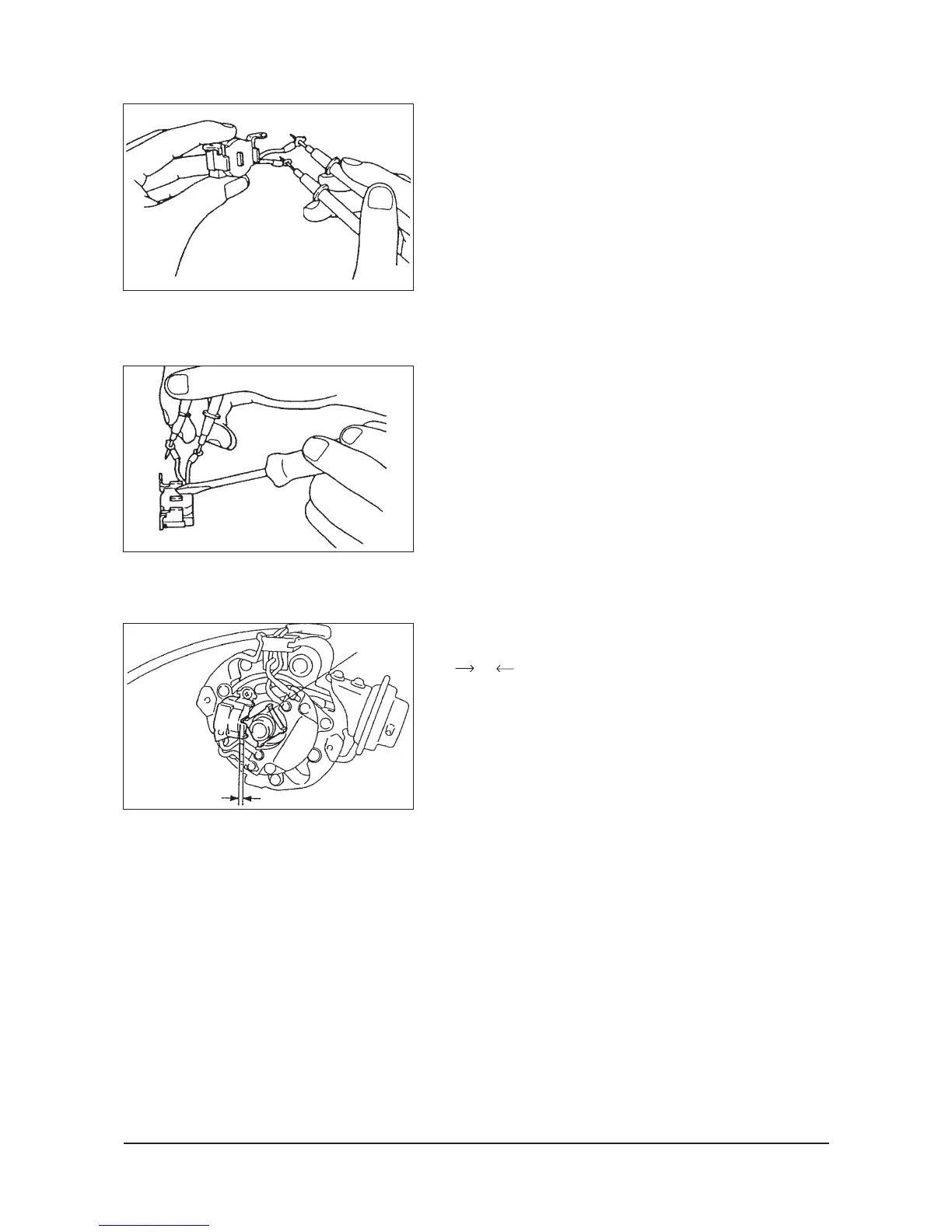

Inspection
Pickup Coil
(1) Using a tester, check the resistance of the pickup coil.
Standard value: 420 to 540Ω
(2) Check to make sure the pointer of the tester oscillates
when the tip of a screwdriver is moved past by the core of
the pickup col assembly.
Reassembly Procedure
A Pickup coil assembly installation
Check the air gap between the signal rotor and pickup
assembly.
Standard value: 0.35 to 0.45 mm (0.0138 to 0.0177 in.)
Signal rotor
To Next Page
