4-28 Inspection, Maintenance and Adjustment 022-00028AE Operation and Maintenance Manual
4. Fill engine with correct oil through oil fill
port (2, Figure 51). Refer to Lubrication
Table of this manual for recommended oil
for the operating conditions.
5. Start engine and check engine oil pressure
light.
6. Shut down engine. Look for signs of leaks
at filter. Recheck oil level using dipstick (1,
Figure 51).
REPLACE HYDRAULIC SYSTEM BRAKE
AND PILOT FILTER

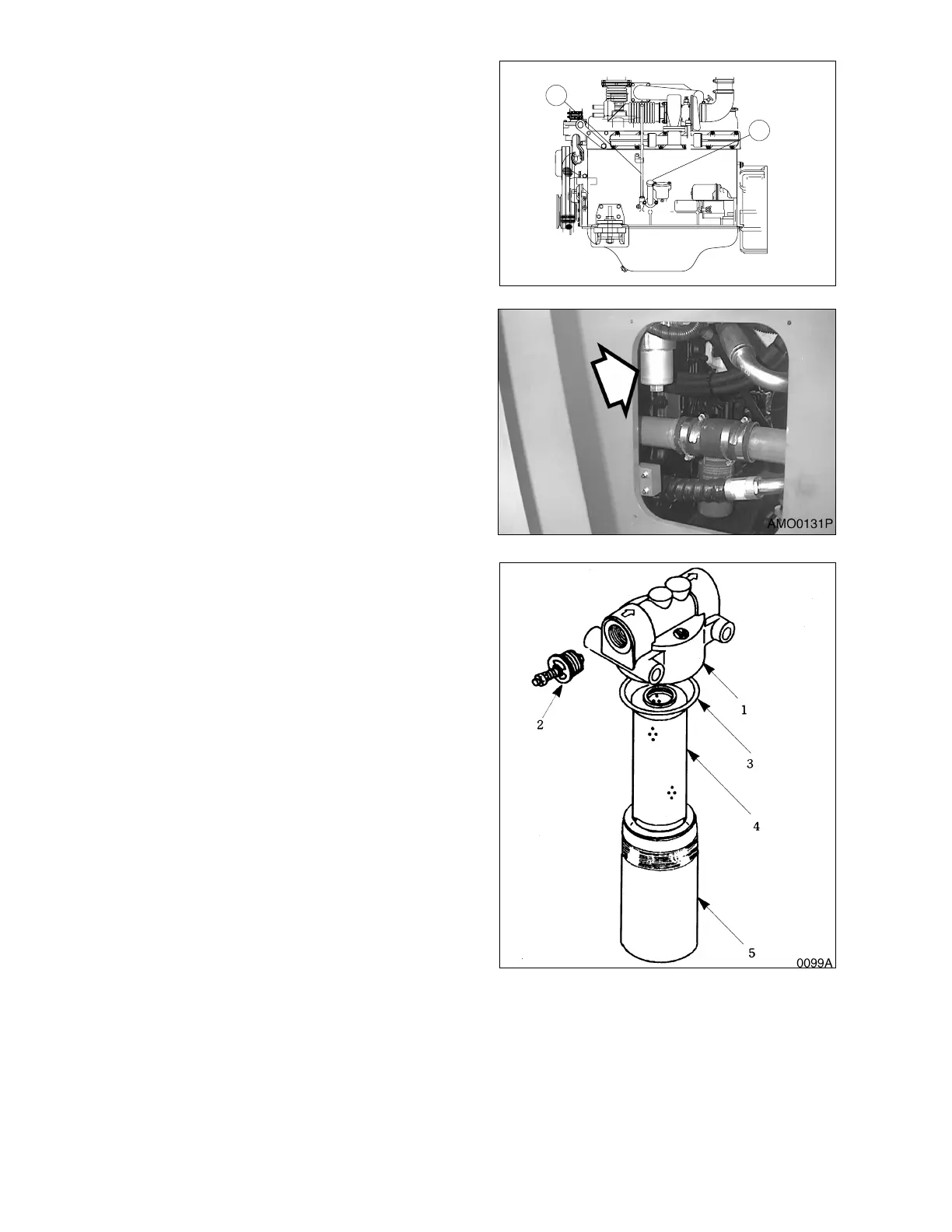

Replace filter element in pilot filter. Perform the
following steps:
1. Vent hydraulic oil tank.
2. Unscrew element cover (5, Figure 53).
Cover is filled with oil. Dispose of oil.
3. Remove O-ring (3, Figure 53) and filter
element (4).
4. Use a nonflammable, nontoxic solvent to
clean out cover (5, Figure 53).
5. Insert a new filter element (4, Figure 53)
into cover (5). Install a new O-ring (3).
6. Screw cover (5, Figure 53) onto filter head
(1).
APO0100L
1
2
Figure 51
Figure 52
Figure 53
