A transmission neutral lever lock is in base
of transmission lever. This neutral lever
lock prevents the transmission lever from
being moved out of "NEUTRAL."
N "NEUTRAL LOCK" position.
Prevents lever from being moved out
of "NEUTRAL."
D "DRIVE" position. Allows lever to be
moved from "NEUTRAL" to
"FORWARD and REVERSE."
10. FRONT INSTRUMENT PANEL
See “Front Instrument Panel” on
page 2-18.
11. TRANSMISSION DISPLAY
See “Transmission Display” on page 2-16.
CAUTION!
"LOCK" transmission lever. When
ever machine is parked, "LOCK"
transmission lever in "NEUTRAL" to
prevent accidental machine
movement.

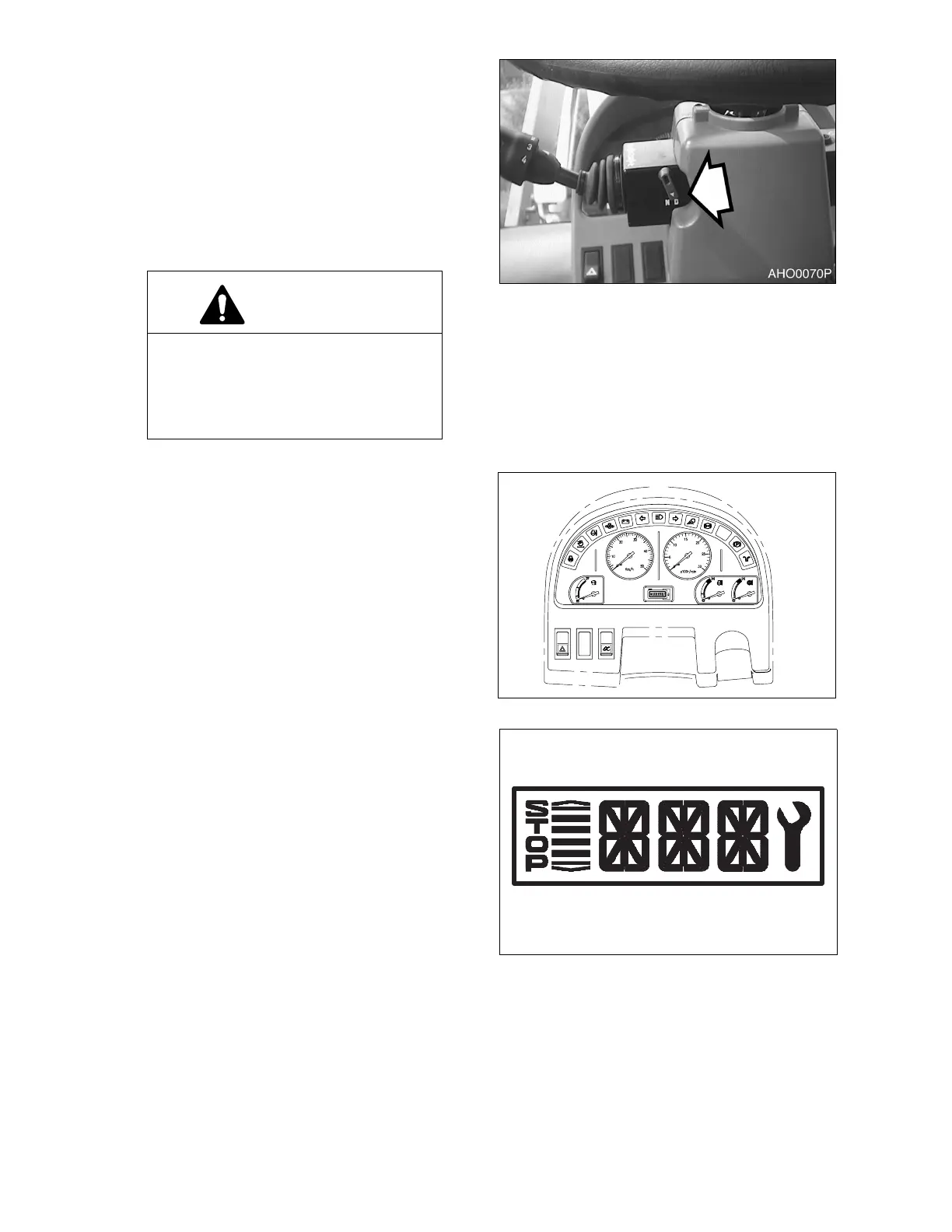

Figure 18
APO0050L
Figure 19
HAAA3773
Figure 20
