2-14 Operating Controls 022-00028AE Operation and Maintenance Manual

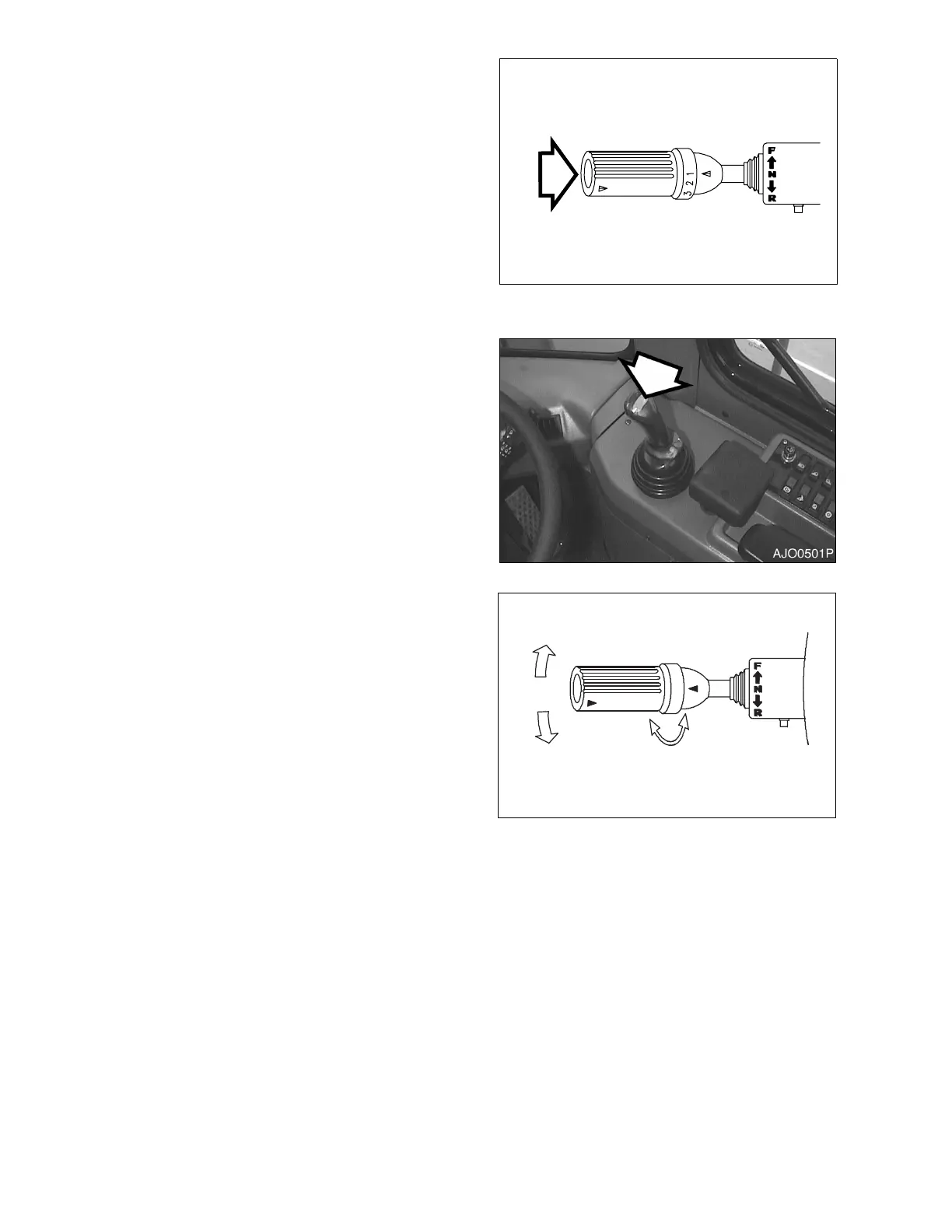

8. KICK-DOWN SWITCH (TWO PLACES)
When transmission is in 2nd gear,
pressing this switch will shift transmission
into 1st gear. This will allow the driver to
perform a quick digging movement.
NOTE:
Kick-down is "RELEASED"
when transmission is placed in
"NEUTRAL" position or the
switch is pressed again.
Kick-down function range:
• Automatic: 2nd, 3rd, 4th.
• Manual: 2nd.
A second kick-down switch (Figure 16) is
on the right button in the tip of the pilot
control valve lever (joystick).
9. TRANSMISSION LEVER
F Forward - When the lever is pushed
forward, transmission is in
"FORWARD." 1st, 2nd, 3rd and 4th
are available.
N Neutral - When the lever is returned
to the center position, between
forward and reverse, the
transmission is in "NEUTRAL."
R Reverse - When the lever is pulled
back, transmission is in "REVERSE"
1st, 2nd and 3rd are available.
Rotating the switch shifts transmission
between 1st, 2nd, 3rd, or 4th gear.
NOTE:
There is a transmission display,
on the dash, that indicates,
gears, direction of travel, error
codes and kick-down activation.
(See page 2-16)
AHO0900L
Figure 15
Figure 16
R
N
F
2
3
1
HAAA3680
Figure 17
