User's Manual
23
No.
Port Name
Function
3 Audio input port
Receives audio signal output from the devices such as
microphone. It corresponds to video input port 1.
4
DB25 port
Connects to the audio splitter taken from the package to convert
to audio input port which receives the audio signal from devices
such as microphone. It corresponds to video input ports 2–16.
5
Audio output port
Outputs audio signal to the devices such as the sound box.
6 HDMI port
High definition audio and video signal output port.
The port outputs the uncompressed high definition video and
multi-channel audio data to the connected display with HDMI
port.
7 USB port
Connects to external devices such as USB storage device,
keyboard and mouse.
8 Network port Connects to Ethernet port.
9
RS485
communication
port
Connects to the control devices such as speed dome PTZ.
RS485_A port is connected by the cable A and RS485_B is
connected to the cable B.
10 Power input port Inputs 12 VDC power.
11 VGA port
Outputs analog video data to the connected display with VGA
port.
12 Power button Turns on/off the DVR.
13
Power cable
fastener
Use a cable tie to secure the power cable on the DVR to prevent
loss.
14 Ground terminal.

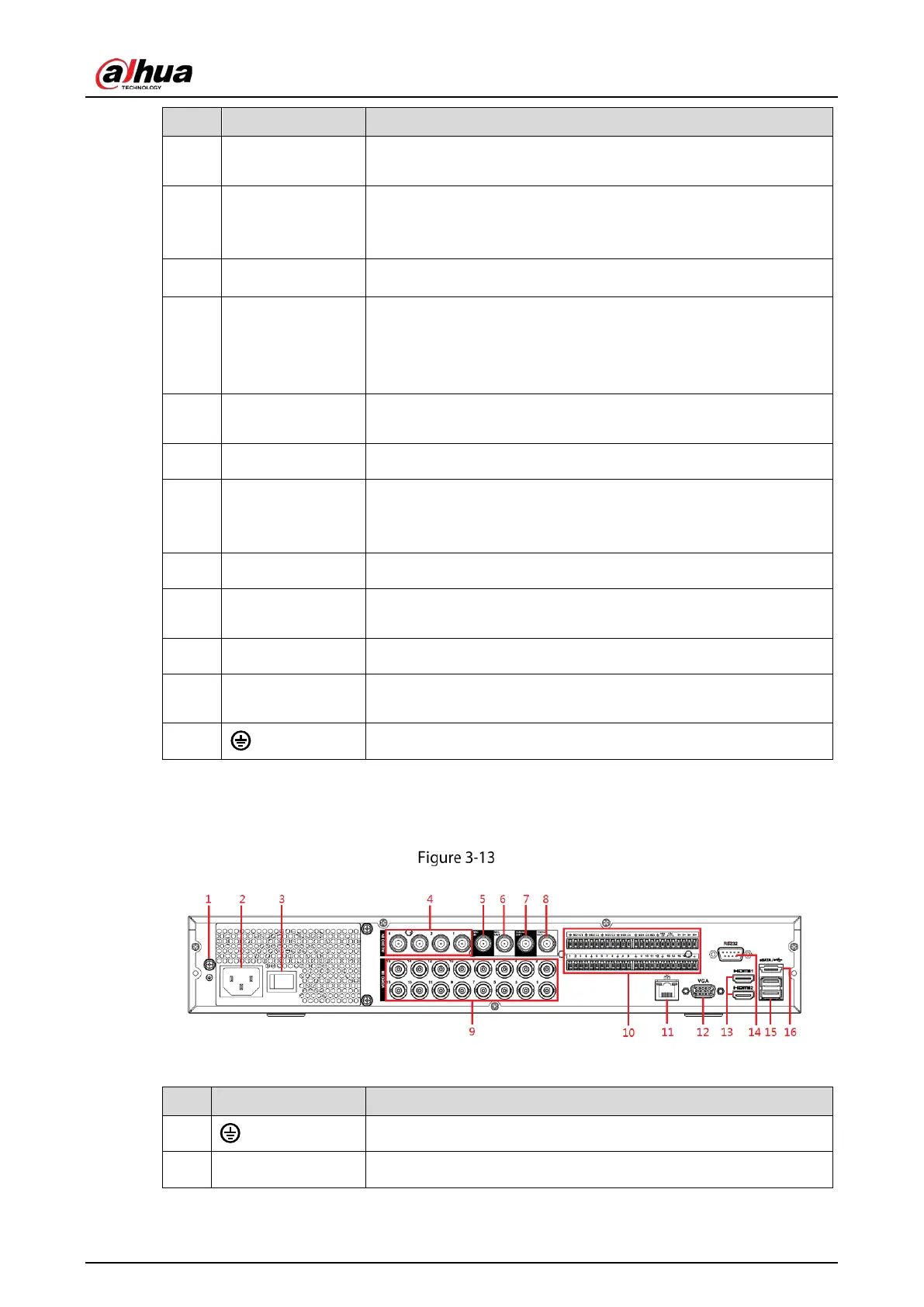

3.2.7 DHI-XVR7416L-4KL
Rear panel
Table 3-12 Rear panel description
No.
Port Name
Function
1 Ground terminal.
2 Power input port Inputs power.
