Dahua DH-XVR5108C-X User Manual

The Grand Tour 17
No.
Port Name
Function
5
Network port
Connects to Ethernet port.
6
Power input port
Inputs 12V DC power.
7
Ground terminal.
Table 3-11
3.2.2 DH-XVR7104E-4KL-X/DH-XVR7108E-4KL-X/DH-XVR7104E-
4KL-B-X/ DH-XVR7108E-4KL-B-X

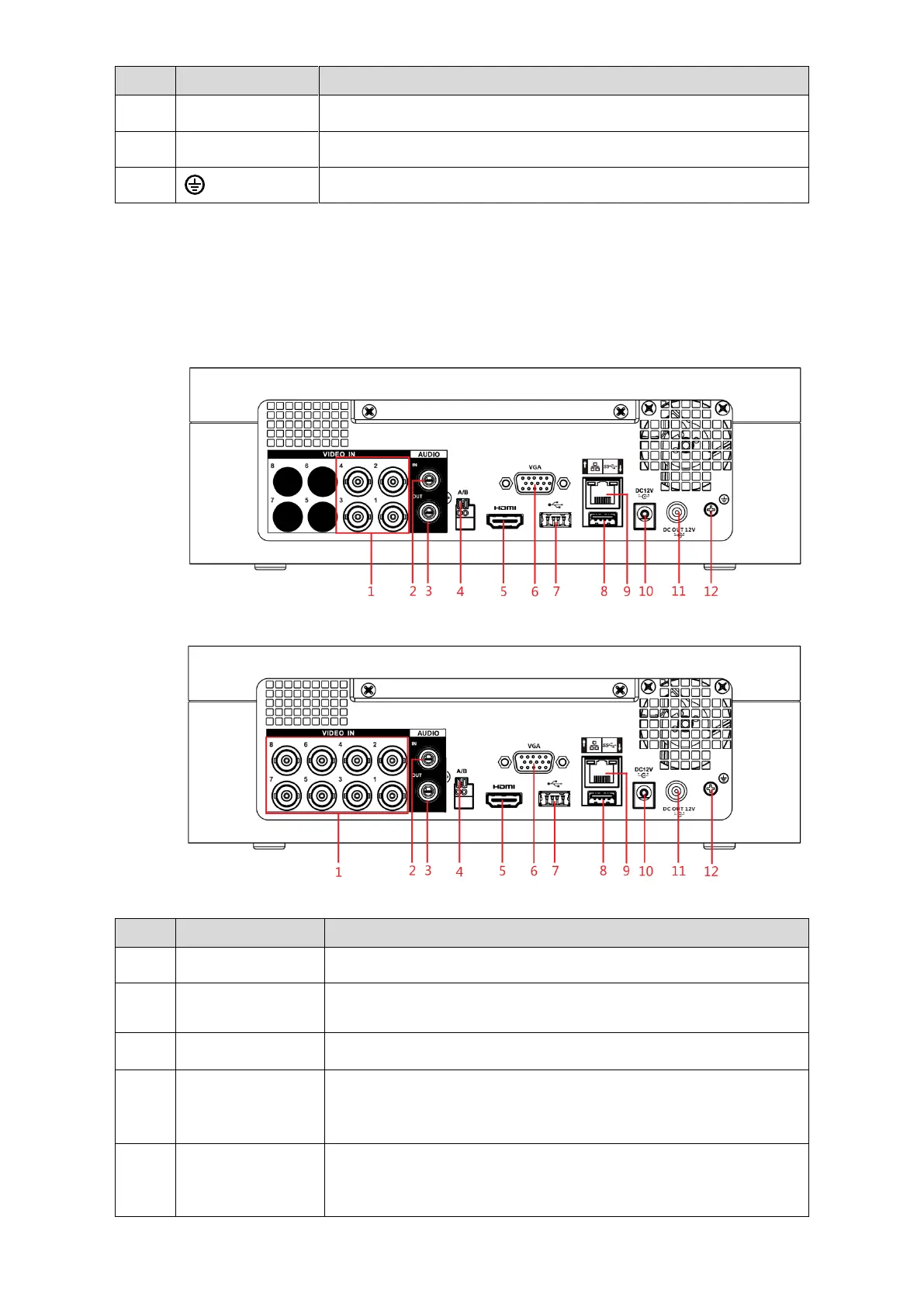

Figure 3-12
Figure 3-13
No.
Port Name
Function
1
Video input port
Connects to analog camera to input video signal.
2
Audio input port
Receives audio signal output from the devices such as
microphone.
3
Audio output port
Outputs audio signal to the devices such as the sound box.
4
RS-485
communication
port
Connects to the control devices such as speed dome PTZ.
RS-485_A port is connected by the cable A and RS-485_B is
connected to the cable B.
5
HDMI port
High definition audio and video signal output port.
The port outputs the uncompressed high definition video and
multi-channel audio data to the connected display with HDMI
