5.10.3 Alarm Output Settings
5.10.3.1 Configuring Alarm Output
When the Device activates alarms, the connected alarm device generates alarms in the way
that you can configure in this section. You can connect to the output port of the Device or
connect wirelessly.
Auto: When an alarm event is triggered on the Device, the connected alarm device
generates alarms.
Manual: The alarm device is forced to keep generating alarms.
Stop: The alarm output function is not enabled.
Select Main Menu > ALARM > ALARM OUTPUT > ALARM Out. Step 1

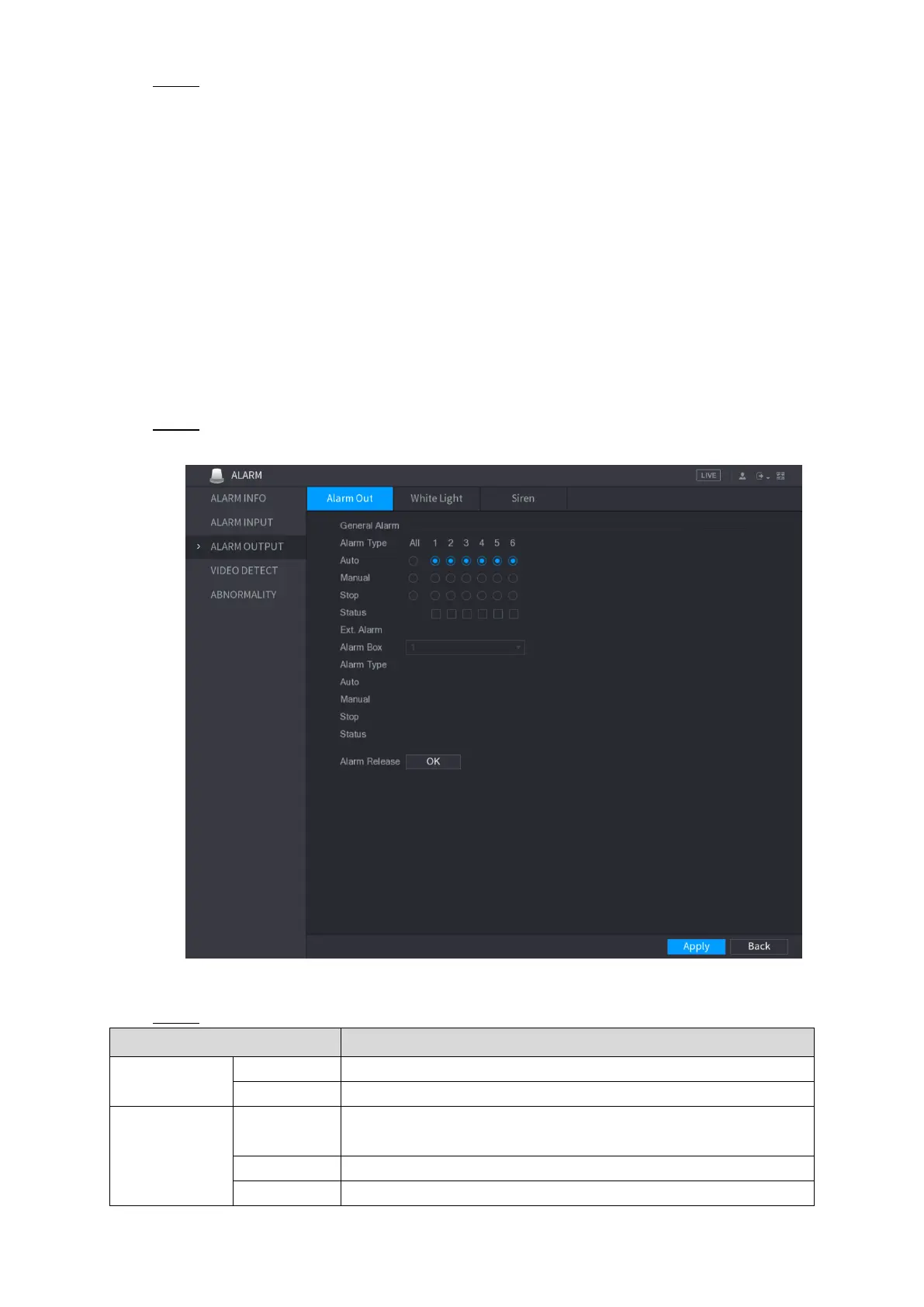

The ALARM OUTPUT interface is displayed. See Figure 5-123.
Figure 5-123
Configure the settings for the alarm output. For details, see Table 5-36. Step 2
Select alarm type for each alarm output port.
Indicates the status of each alarm output port.
Select the alarm box number corresponding to the address
number configured by the DIP switch on the Alarm Box.
Select the alarm type for each alarm output ports.
Indicates the status of each alarm output port.
To Next Page
