Dahua DH-XVR5108C-X User Manual

The Grand Tour 32
No.
Port Name
Function
1
Video input port
Connect to analog camera to input video signal.
2
Audio input port
Receives the analog audio signal output from the devices such
as microphone.
3
Audio output port
Outputs the analog audio signal to the devices such as the sound
box.
4
VGA video output
Outputs analog video signal. It can connect to the monitor to view
analog video.
5
HDMI port
High definition audio and video signal output port. It outputs the
same video source as VGA. It supports 4K resolution output and
supports mouse operation and control.
Please note when the HDMI output resolution is 4K, the VGA
output stops.
6
USB port
Connects to the external devices such as keyboard, mouse, and
USB storage device.
7
Network port
Connects to Ethernet port.
8
Power input port
Inputs power.
9
GND
Ground.
Table 3-22
3.2.13 DH-XVR1B08H/DH-XVR1B16/DH-XVR1B16H

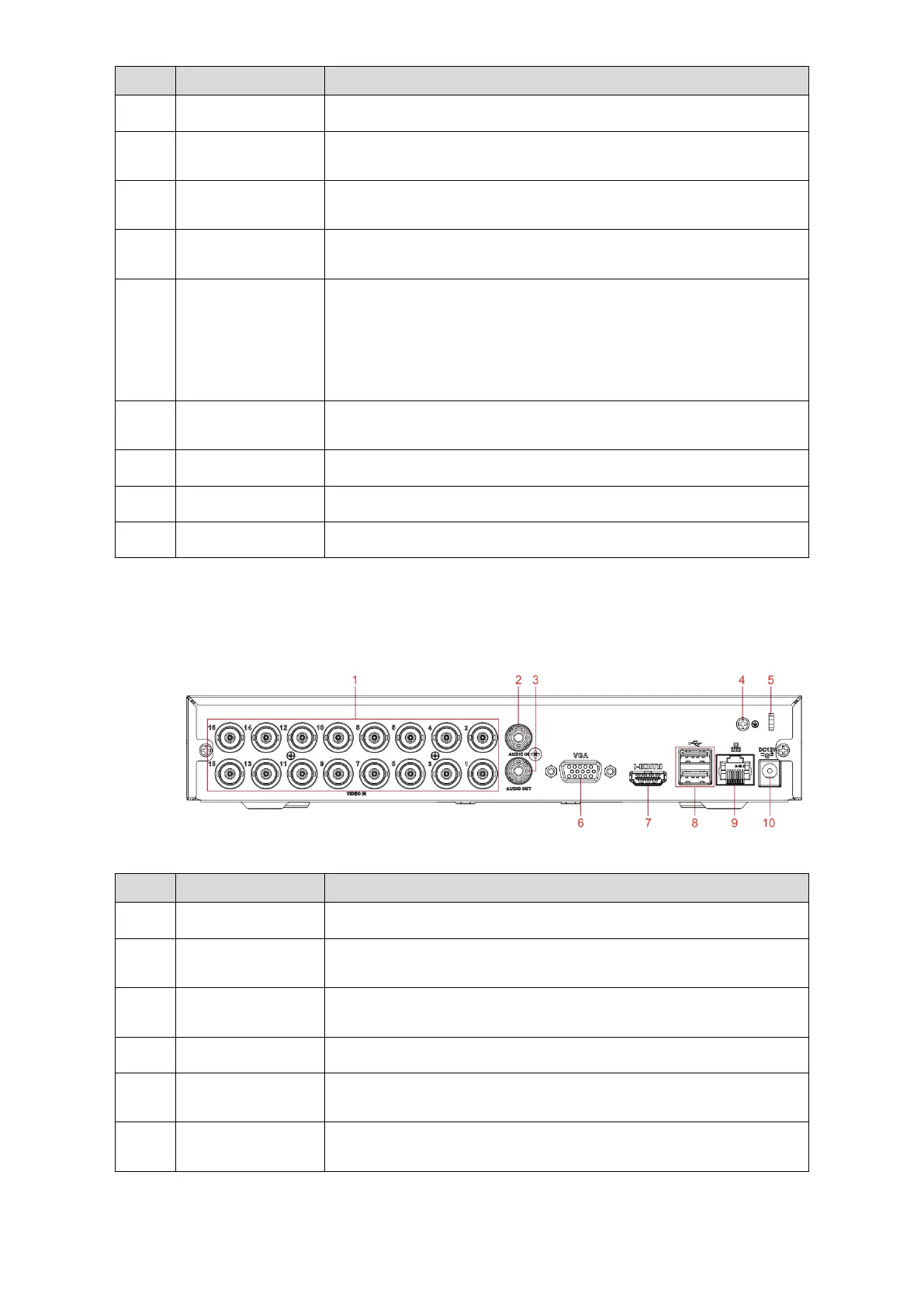

Figure 3-24
No.
Port Name
Function
1
Video input port
Connect to analog camera to input video signal.
2
Audio input port
Receives the analog audio signal output from the devices such
as microphone.
3
Audio output port
Outputs the analog audio signal to the devices such as the sound
box.
4
GND
Ground.
5
Power cable
fastener
Use clamp to secure the power cable on the DVR in case there is
any loss.
6
VGA video output
Outputs analog video signal. It can connect to the monitor to view
analog video.

Dahua DH-XVR5108C-X Specifications

General

Brand	Dahua
Model	DH-XVR5108C-X
Category	DVR
Language	English
