Indoor Monitor (VTH) Installation
2.3.1 Installing with 86 Box
Install the device with 86 box, which is suitable for all types of devices. Take "VTH1560B/BW"
for example.
Embed 86 box into a wall at a proper height.
Fix installation bracket on the 86 box with screws.
Hang the indoor monitor (VTH) on the installation bracket.

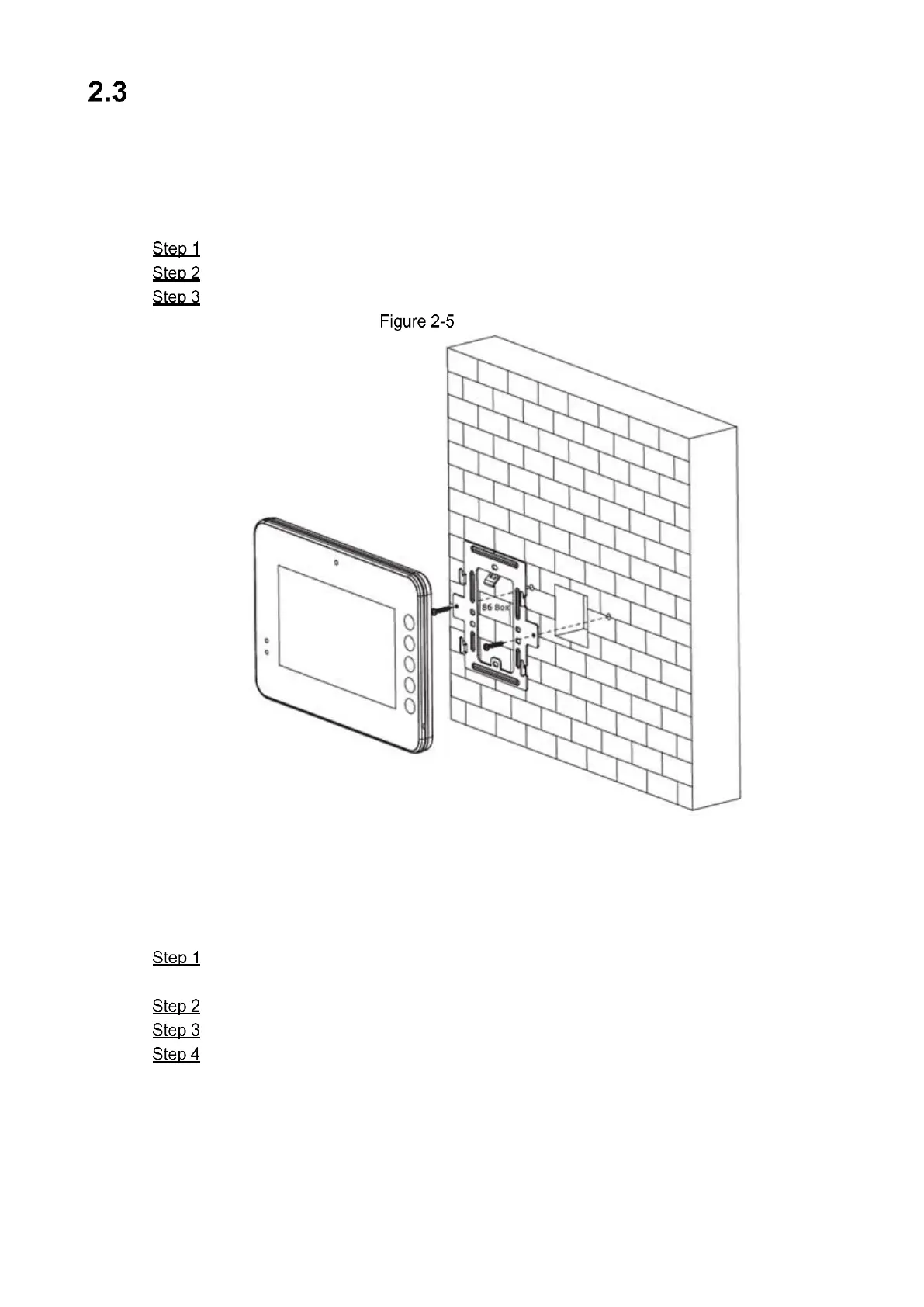

Installing with 86 box
2.3.2 Installing with Desktop Bracket
Install the device with bracket on the desktop, which only applies to handset indoor monitor
(VTH). Take “VTH5221E-H” for example.
With two M3×6 cross recessed countersunk head screws, tighten the metal bracket on
the top two nuts of desktop bracket.
Connect cables.
Thread the cable through the rear cable outlet or bottom cable outlet.
Hang the indoor monitor (VTH) on the metal bracket.
