2 Front Panel and Rear Panel
2.1 Front Panel
2.1.1 Beneficio smart 1U/Beneficio smart 1U(S2)/ 4K smart 1U (S2)/ Beneficio 4K
Smart 1U(S2) Series

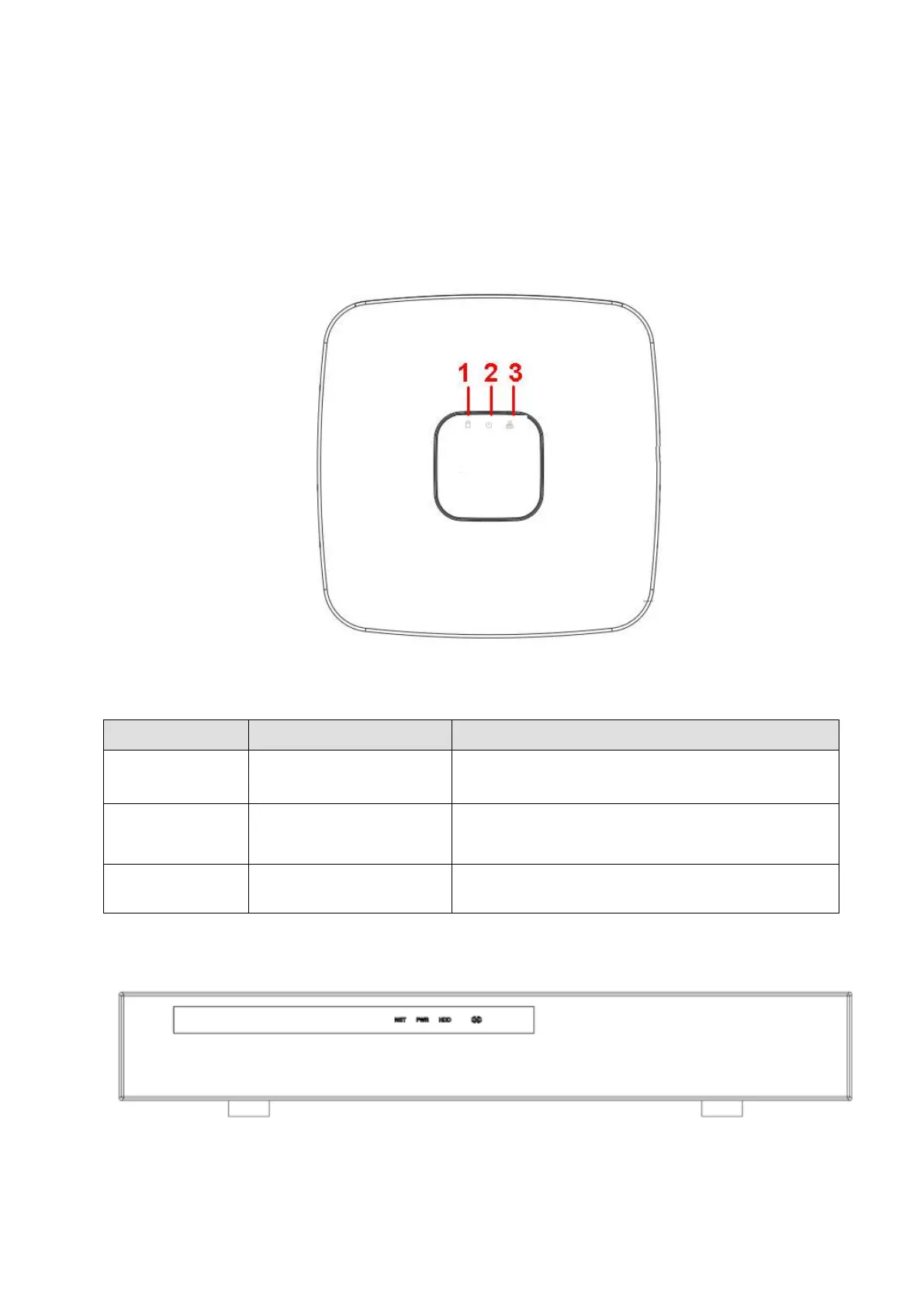

The front panel is shown as in Figure 2-1.
Figure 2-1
Please refer to the following sheet for detailed information.
SN
Name
Function
1
HDD status indictor light
The red light becomes on when HDD is abnormal.
2
Power indicator light
The red light becomes on when the power
connection is OK.
3
Network status indicator
light
The red light becomes on when the network
connection is abnormal.
2.1.2 Beneficio Mini 1U Series
The front panel is shown as in Figure 2-2.
Figure 2-2
Please refer to the following sheet for detailed information.
