Dahua Lite NVR2104-4KS2 User Manual

74
Network
abnormal
indicator light
Net
Network error occurs or there is no network connection, the
light becomes red to alert you.
HDD
abnormal
indicator light
HDD
HDD error occurs or HDD capacity is below specified
threshold value, the light becomes red to alert you.
Record light
1-16
System is recording or not. It becomes on when system is
recording.
IR Receiver
IR
It is to receive the signal from the remote control.
2.1.6 Compact 1U（S2）/ 4K compact 1U (S2)/ Compact 1U 4K（S2） Series

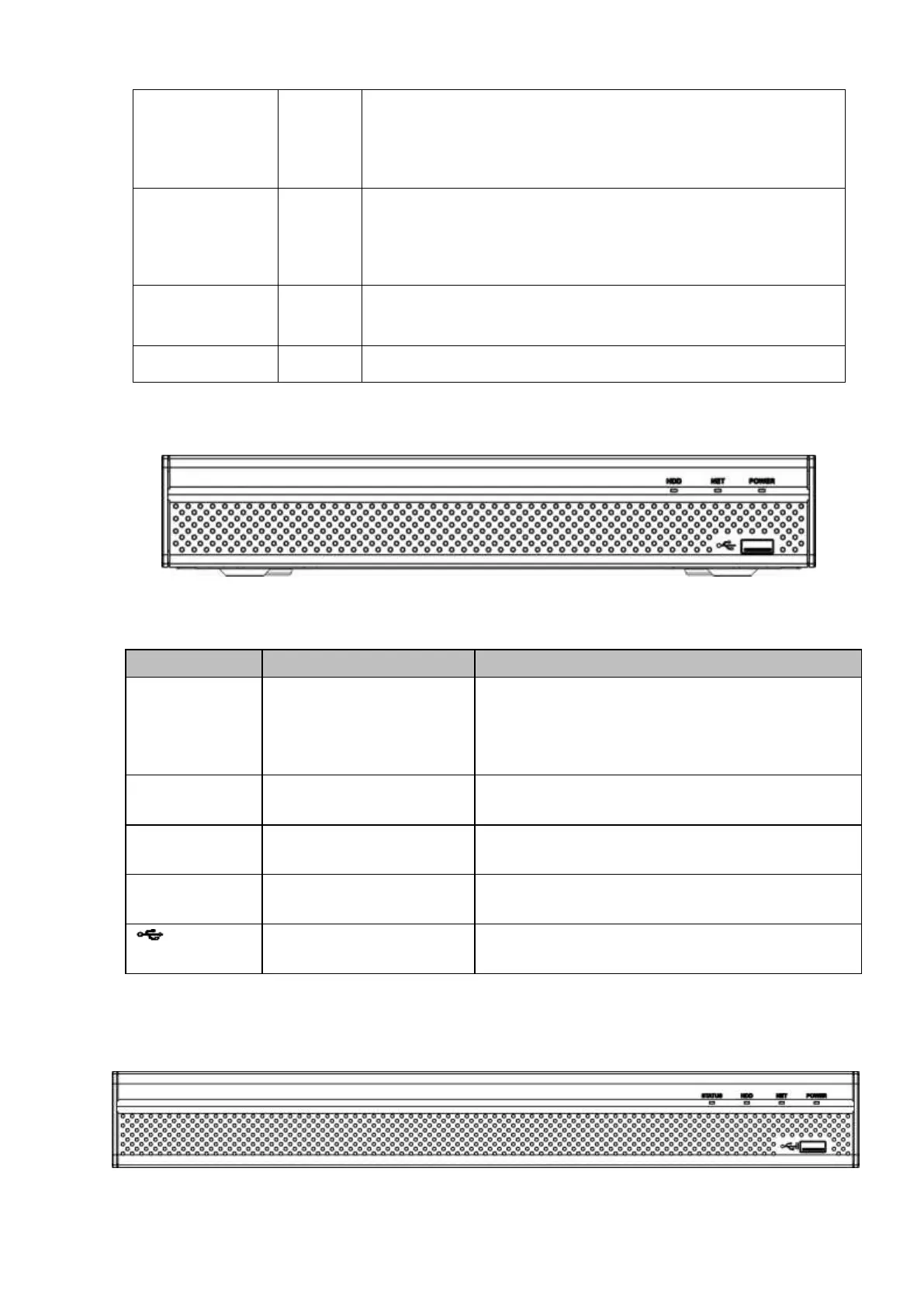

The series front panel is shown as below. See Figure 2-6.
Figure 2-6
Please refer to the following sheet for front panel button information.
Icon
Name
Function
STATUS
Status indicator light
The blue light is on when the device is malfunction.
Note
General compact 1U（S2） series product does not
support STATUS indicator light.
HDD
HDD status indicator
light
The blue light is on when the HDD is malfunction.
NET
Network status indicator
light
The blue light is on when the network connection is
abnormal.
POWER
Power status indicator light
The blue light is on when the power connection is
OK.
USB port
Connect to peripheral USB storage device, mouse
and etc.
2.1.7 1U/1.5U/2U Series
The 1U series front panel is shown as in Figure 2-7.
Figure 2-7
