Dahua Lite NVR2104-4KS2 User Manual

89

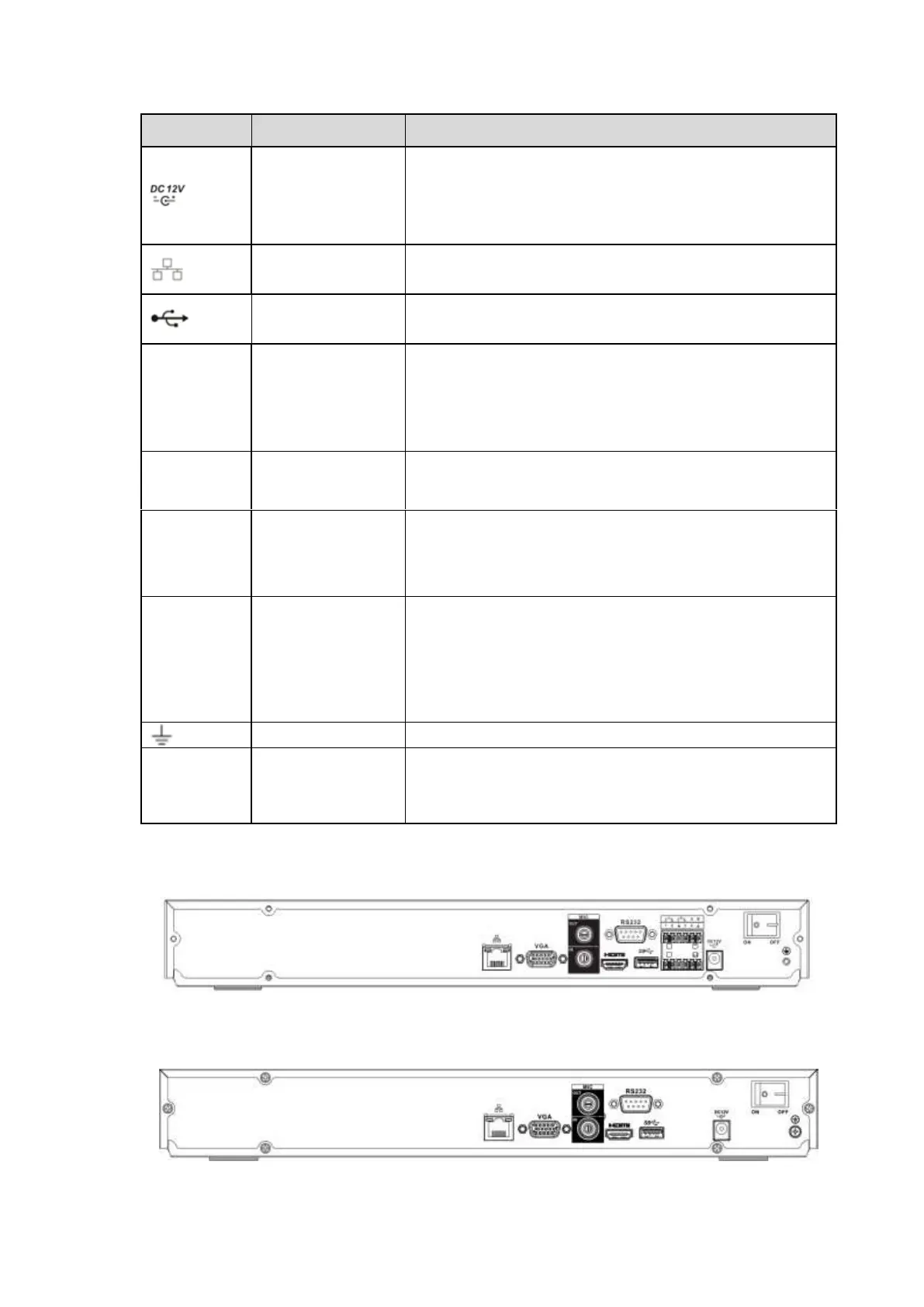

Please refer to the following sheet for detailed information.
Port Name
Connection
Function
Power input port
Power socket.
 For general series, input DC 12V/4A.
 For 4 PoE ports series, input DC 48V/1.5A.
 For 8 PoE ports series, input DC 53V 120W.
Network port
10M/100Mbps self-adaptive Ethernet port. Connect to the
network cable.
USB port
USB port. Connect to mouse, USB storage device and
etc.
HDMI
High Definition
Media Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device. HDMI version is 1.4.
VGA
VGA video output
port
VGA video output port. Output analog video signal. It can
connect to the monitor to view analog video.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the analog
audio signal output from the devices such as microphone,
pickup.
MIC OUT
Audio output port
Audio output port. It is to output the analog audio signal to
the devices such as the sound box.
 Bidirectional talk output.
 Audio output on 1-window video monitor.
 Audio output on 1-window video playback.
GND
Ground end
PoE
PORTS
PoE port
Built-in switch. Support PoE function.
For PoE series product, you can use this port to provide
power to the network camera.
2.2.7 Beneficio 1U / Beneficio Entry-level 1U/ Beneficio 1U with 1 PoE port/ Beneficio
1U with 8 PoE ports/ Beneficio 1U with 16 PoE Ports Series
The beneficio 1U series NVR rear panel is shown as below. See Figure 2-30.
Figure 2-30
The beneficio entry-level 1U series rear panel is shown as below. See Figure 2-31.
Figure 2-31
