Dahua VTH5321GW-W User Manual

5
No.
Description
3
Bracket oval hole position
4
Screw hole distance
Drill four screw holes in the wall according to holes on the bracket. Step 1
Put anchor bolts into the screw holes. Step 2
Fix the bracket on the wall with screws. Step 3
Connect cables (power cable, network cables, and more). Step 4
Hang the indoor monitor on the bracket. Step 5
The installation is completed.
7 Inch

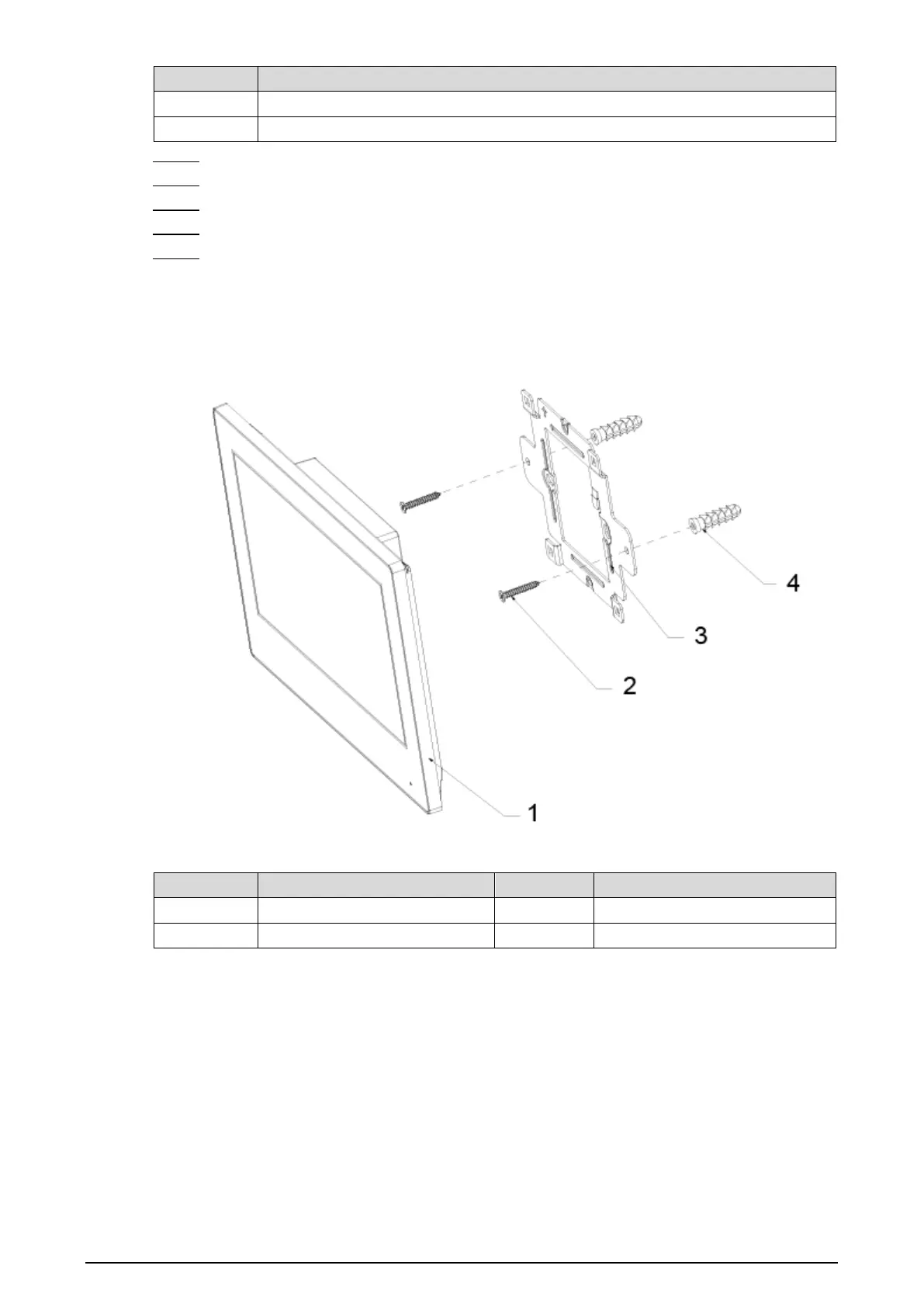

Installation Figure 2-3
Table 2-3 Components
No.
Name
No.
Name
1
Indoor monitor
3
Bracket
2
Bracket fixing screws
4
Anchor bolt
