Dahua VTO2211G User Manual

8
Table 2-9 Port description
No.
Name
No.
Name
1
Alarm input device
14
DOOR1_NC
2
Alarm output device
15
Not available
3
DC_IN-
16
DOOR1_COM
4
DC_IN+
17
Not available
5
ALARM_IN
18
DOOR1_NO
6
+12V_OUT
19
Not available
7
GND
20
GND
8
GND
21
Not available
9
ALARM_NO
22
DOOR1_FB
10
RS485B
23
Not available
11
ALARM_COM
24
GND
12
RS485A
25
Not available
13
Not available
26
DOOR1_PUSH
VTO1201G cable connection

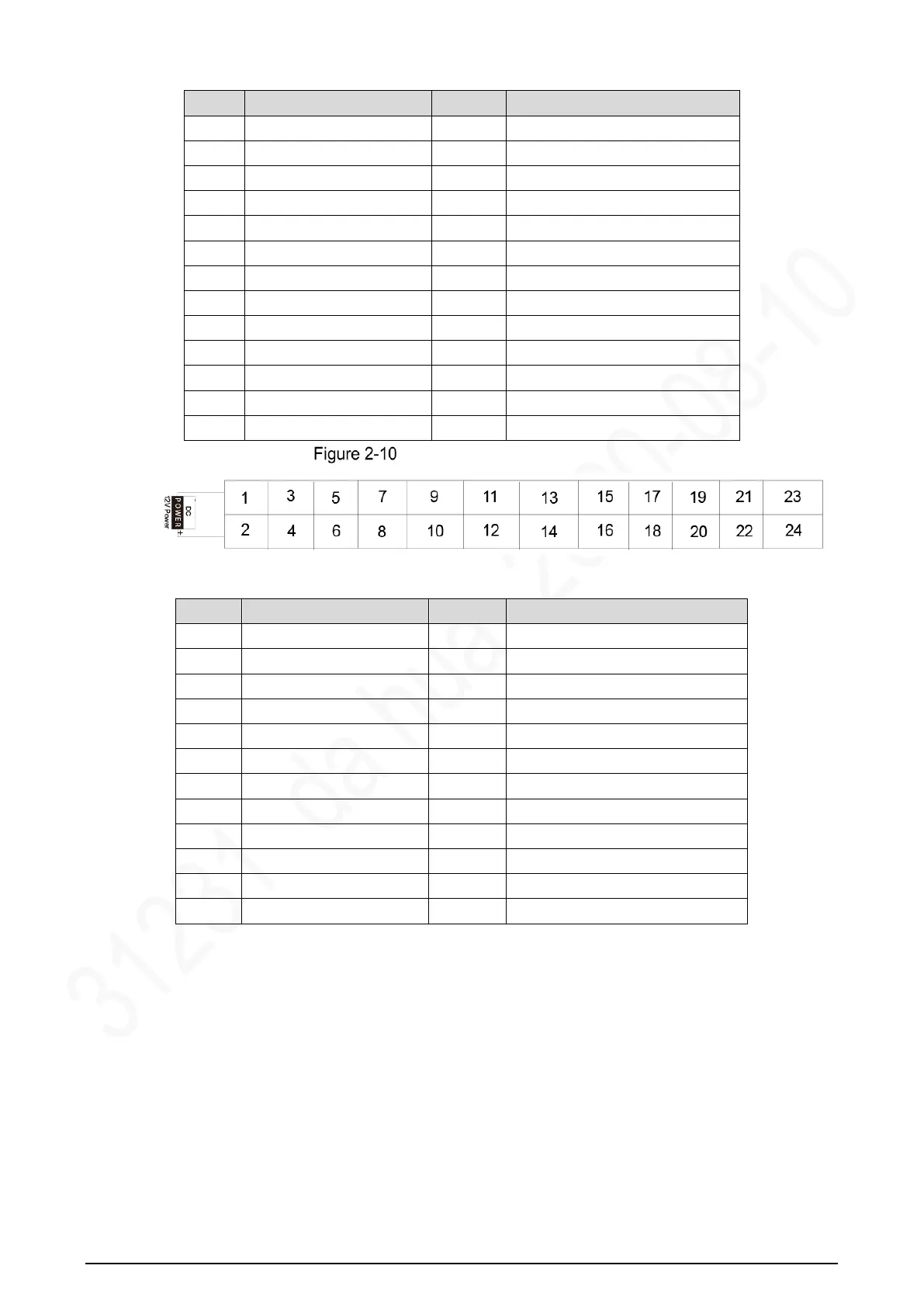

Table 2-10 Port description
No.
Name
No.
Name
1
DC_IN-
13
Not available
2
DC_IN+
14
Not available
3
Not available
15
Not available
4
Not available
16
Not available
5
Not available
17
Not available
6
Not available
18
Not available
7
Not available
19
Not available
8
Not available
20
Not available
9
Not available
21
Not available
10
Not available
22
Not available
11
Not available
23
Not available
12
Not available
24
Not available
