Daiichi Electronics ASY-96 - Handling; Dimension Diagram; Installation and Remove of Product

ASY‑206‑077
11
7.Handling

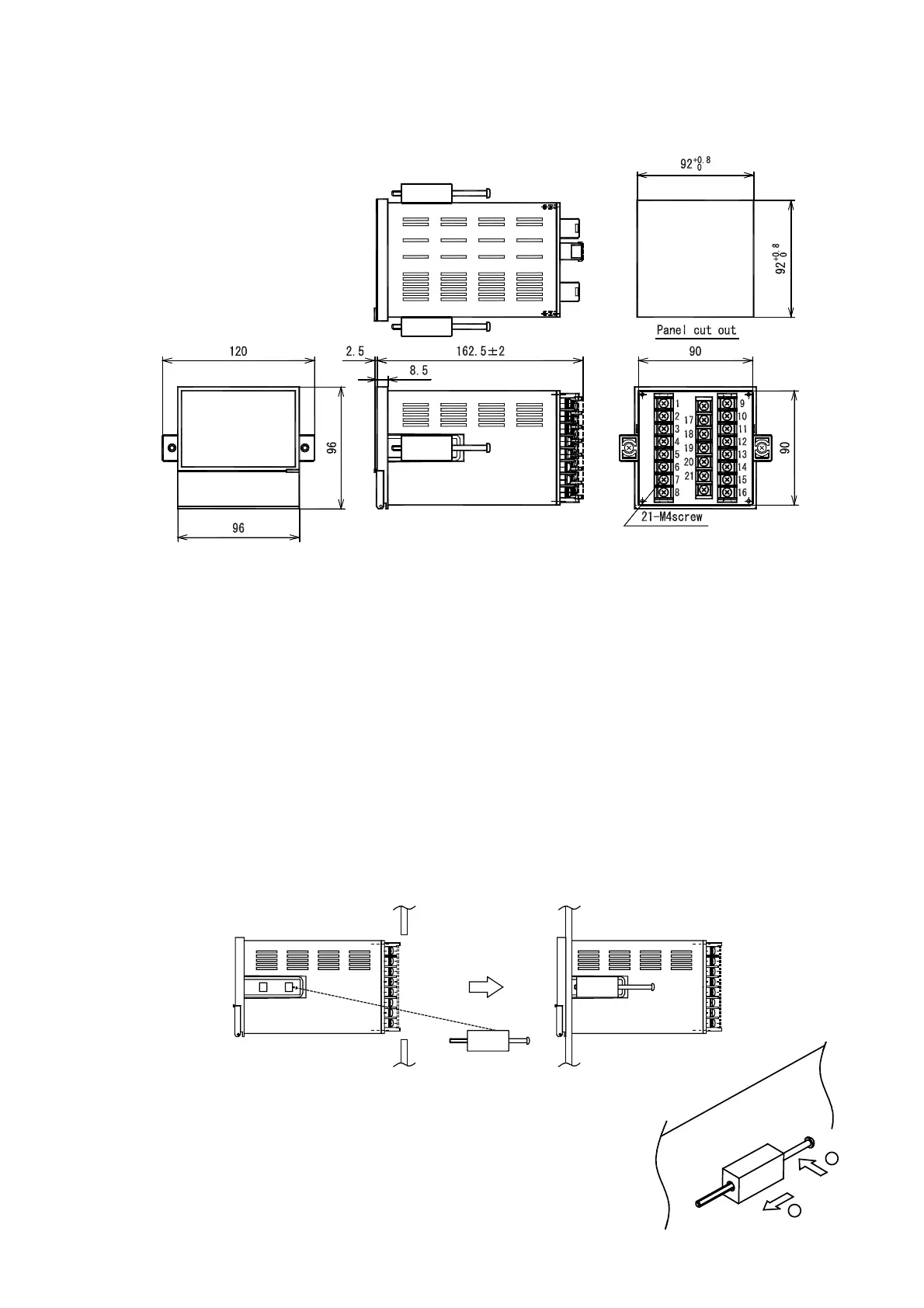

7.1Dimensiondiagram
<Note>Thiscontainerandspacingwiththeequipmentthatisnextgiveapanelcuttoformorethan27mm.
Thethicknessofaninstallationpanelis8mmorless.
■Installationenvironmentcondition
Installationselectsaplacesuitloweraccountofenvironmentcondition.Theplacethatthevibrationthat
ismechanicalanddustandcorrosivegasarefew.Placethatthereisnotaffectofstrongelectromagnetic
fieldbylargecurrentbusandsaturablecorereactor.
7.2Installationandremoveofproduct
(1)Installation
①Theyinsertaproductthanthefrontofpanel.
②Theyinstallattachedinstalltoolaholeofproductsideinpanelrearface.(Rightandleft,2places)
(Aholeofproductsidesetandhavepawlofinstalltoolinstalledtoterminalside.
③Theytightenscrewofinstalltoolinaplusdriverandtheyfixaproduct.(Rightandleft,2places)
Bindingfasttorque：0.59〜1.08N･m(6〜11kg･cm).Recommendationbindingfasttorque：0.88N･m(9kg･cm)
(Theydon'tcloseonlyonesidewhentheyclosescrew,andpleaseclosescrewinturn.Andpleaseusescrew
lockagentwhentheycaninstallationlocationtobeaccompaniedbyvibration.
(2)Removeway
Theycarryoutaninstallwayandreversework.
Wheninstalltoolishardtocomeoff,takeoffitinthenextpoint.
Afterhaveloosenascrew,Theyputaheadofscrewtodirectionof
mainframe(①)andtheybegintoputitonthefront(②).
①
②
③
Ｐ
ｒ
ｏ
ｄ
ｕ
ｃ
ｔ
ｓ
ｉ
ｄ
ｅ
２
１
