Daiichi Electronics ASY-96 - Simulation Test

ASY‑206‑077
19
8.Simulationtest
Qualityofthisdeviceisfullyconfirmed,however,simulatingtestcanbecarriedoutunderthefollowing
guidanceinordertoavoidtroubleinadvance.

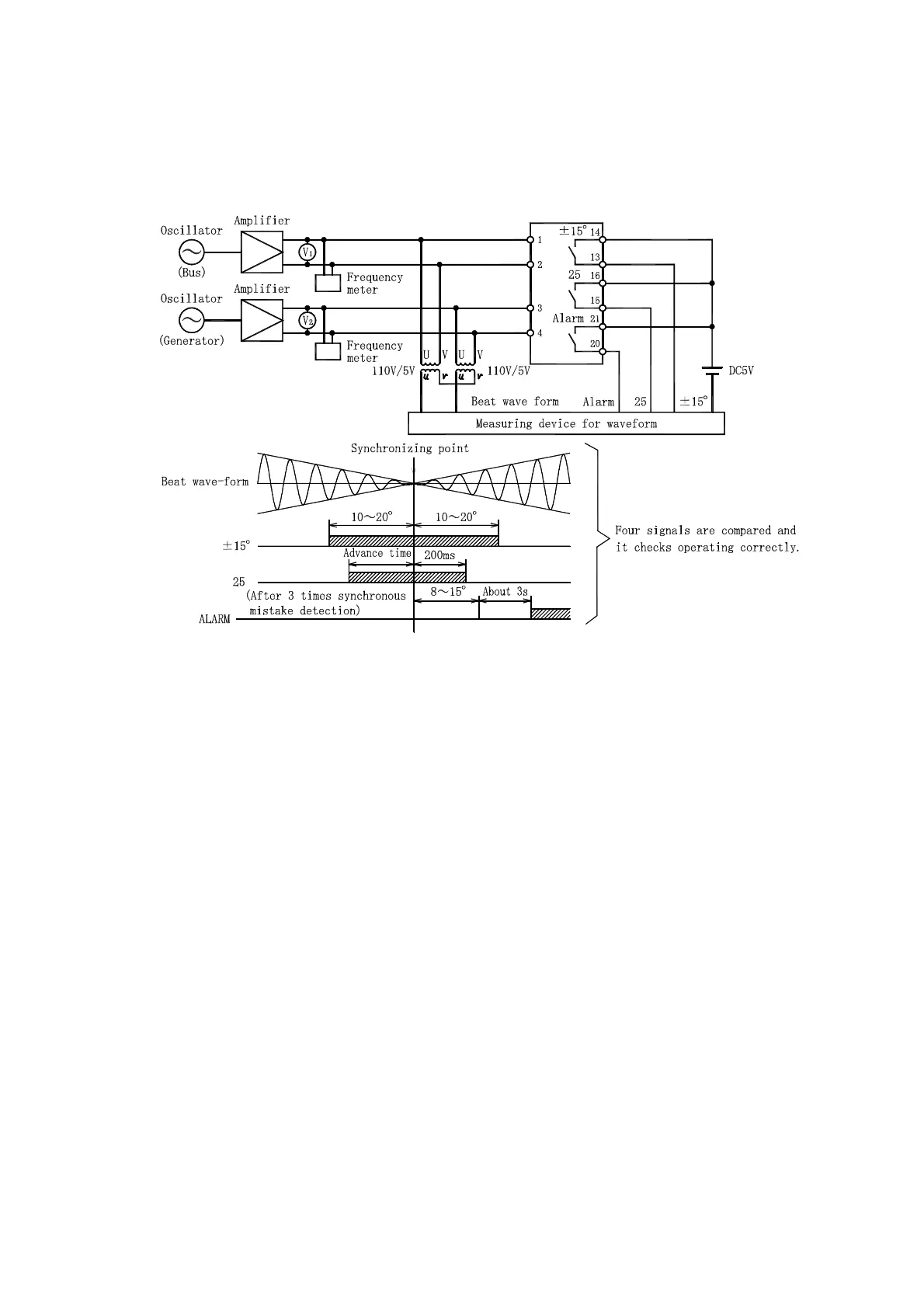

1)Simulationtest
Aftergivingvoltagebetweenbusinput(betweenterminal1‑2)andgeneratorinput(betweenterminal3‑4)and
whenvoltagedifferenceandfrequencydifferencearewithinthesettingvalue(LEDΔFis“ON”andLEDΔV
is“ON”)andthepulsedifferencebetweenthembecomessmaller,signal(±15°)turns“ON”firstandthencommon
signal(25)turnson.
VoltagedifferenceV
G ≧V B +settingvalue：Voltagedecreasesignal(60L)turnson.
VoltagedifferenceV
G ≦V B ‑settingvalue：Voltageincreasesignal(60R)turnson.
FrequencydifferenceF
G ≧F B +settingvalue：Governordecreasesignal(15L)turnson.
FrequencydifferenceF
G ≦F B ‑settingvalue：Governorincreasesignal(15R)turnson.
Controlwillstopundertherangeoutof90V≦V
B ≦125V,80V≦V G
IncaseofΔF=0〜±0.05Hz,15R(15Lincaseof“SLOW”sideclosingdesignation)isoutputatintervalsof
3second.
Underabovesimulatingtest,closingcommandsignal(25)isoutput3timescontinuouslyeveryphaseat
synchronizingpoint,becausebusvoltageandgeneratorvoltagedonotsynchronize,itbecomessynchronizing
failure(ALARM)andthecontrolwillstop.
