7.3Connection

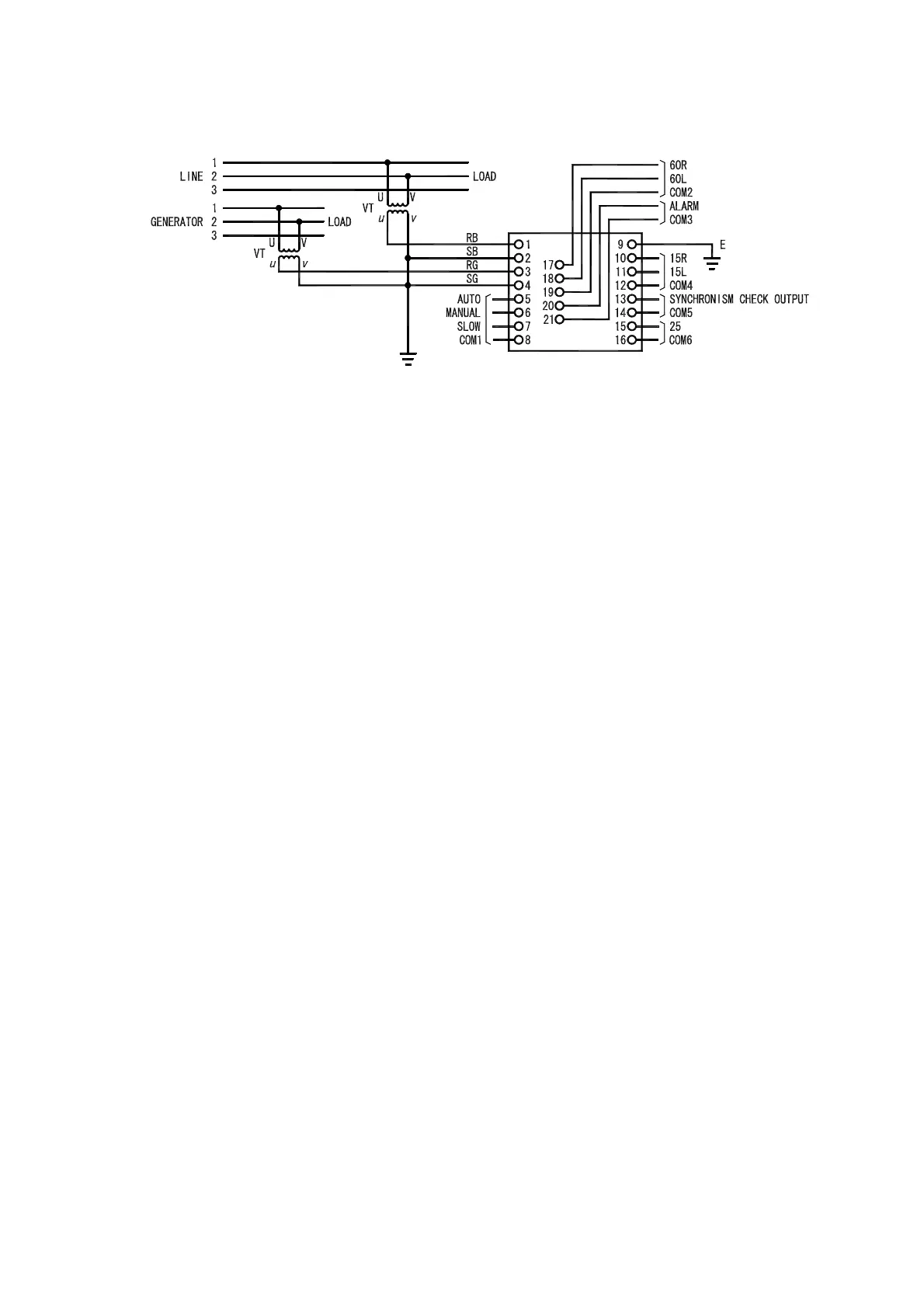

7.3.1Connectiondiagram
AUTO：Automaticsynchronizationstartsignal.
MANUAL：Manualsynchronizationstartsignal.
SLOW：SLOWsideclosingdesignationsignal.
60R：Voltageincreasesignal.
60L：Voltagedecreasesignal.
ALARM：Alarmsignal.
15R：Governorincreasesignal.
15L：Governordecreasesignal.
SYNCHRONISMCHECKOUTPUT：Signalwith±15°.
25：Circuitbreakerclosingsignal.
<Note>ControlsignalinputofAUTO,MANUAL,SLOWisnon‑voltagecontactinput.
7.3.2Precautionsforwiringconnection
z Setterminalcoverforsafety,withoutfail,afterfinishofthewiringconnection.
z Earthterminal“E”(No.9)mustbegrounded,withoutfail,toraiseshieldingeffect.
z Separatethewiringbothatpowersourcesideandsignalside,withoutfail.Caremustbepaidfornoise.
7.4Precautionsforoperation
7.4.1Inputandoutputsignal.
(1) Inputandoutputterminalsareprovidedwithacover.Setthiscover,forsafety,withoutfail,after
finishofthewiringconnection.Donottouchtheterminalsduringtheoperatingcondition.
(2) Controlsignalinputisnovoltagecontact.Donotinputthevoltagesignal.Incaseofsettingan
externalrelayforcontrolsignalinput,selecttherelaygoodenoughforminimumapplicableload(mA)
DC12V,10mAinswitchingvoltageandcurrent.
(3) Switchingcapacityofcontroloutput(opticalMOS‑FETrelay)isDC100V,50mAorDC24V,100mA.
Anelementmustbesetonthecoiloftherelayinordertoabsorbcountervoltageattimeofswitching.
7.4.2Precautionsattimeofstartofoperation
(1) Busvoltagemustbeinputafterthevoltage(AC90to125V)isstable.Operatingfailuremayhappen
underunstablerangeofthepowerwhenincreasingthevoltage,becausethepowersourceofthisdevice
isincommonwithbus.
(2) Controlinputlatchisnotprovided,sothatitmustbealwaysshortcircuitattimeofselection.
7.4.3Precautionsduringstartofoperation
(1) Settingchangecannotbeperformedduringaction.Ifitmakesasettingchange,acinput(busand
generatorvoltage)non‑voltageoracontrolstartinput(automaticandmanualsynchronousstart)is
settoOFF.TheSLOWsideclosingdesignationinputdoesnotmatterwithON.
(2) Ifautomaticisswitchedtomanualoperationduringaction.AfterOFFofautomatic,itwaits1secondor
more,andmanualisON.
(3) Pleasedonottouchequipmentduringaction.Itwillcausefailureinoperation.
7.4.4Precautionsafterfinishofsynchronizingcontrol
Asarule,ACinput(busvoltageandgeneratorvoltage)afterfinishofsynchronizingcontrolmustbe
novoltageandcontrolinput(automaticandmanualsynchronizationstart)mustbe“OFF”.
Thereisnoproblemiftheclosingdesignationinputat“SLOW”sideiskeptat“ON”condition.
