Daikin 2AMX40G3V1B Removal Procedure

PCB Si121295
10 Removal Procedure
6

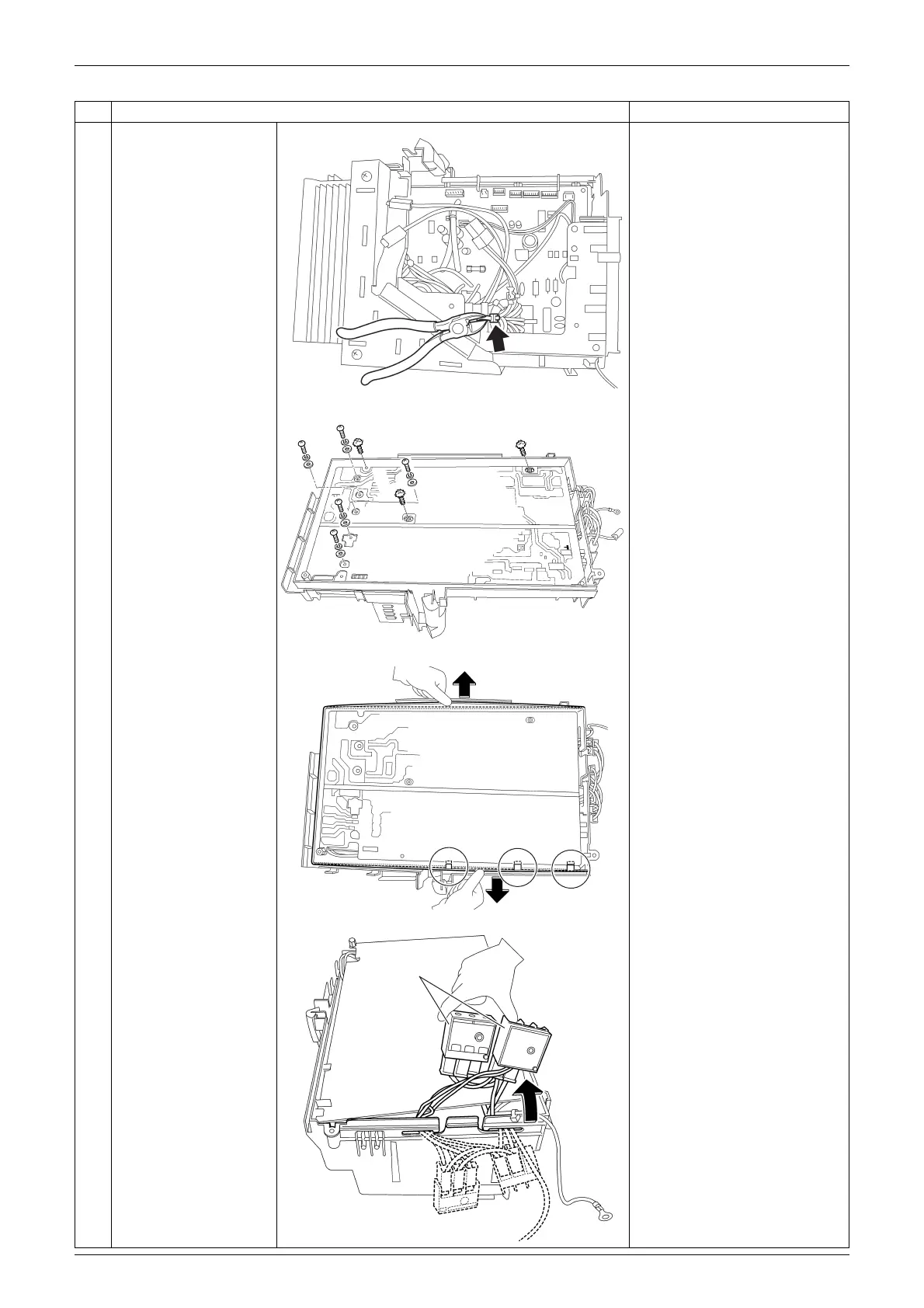

Cut the clamp and
release the wire
harnesses.
7
Remove the screws to
remove the PCB.

The number of screws varies
depending on the model.
8
Lift up the back side of
the electrical box
slightly and unfasten
the 3 hooks.

When reassembling, make
sure that the hooks of the
electrical box are placed on
the PCB.
9
Release the lead wires
from the hooks and
remove the terminal
boards.
Step
Procedure Points
(R7597)
(R18655)
(R7603)
Terminal board
(R7604)
