Daikin 2AMX40G3V1B Removal Procedure

Outer Panels Si121295
2 Removal Procedure
1. Outer Panels
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step
Procedure Points

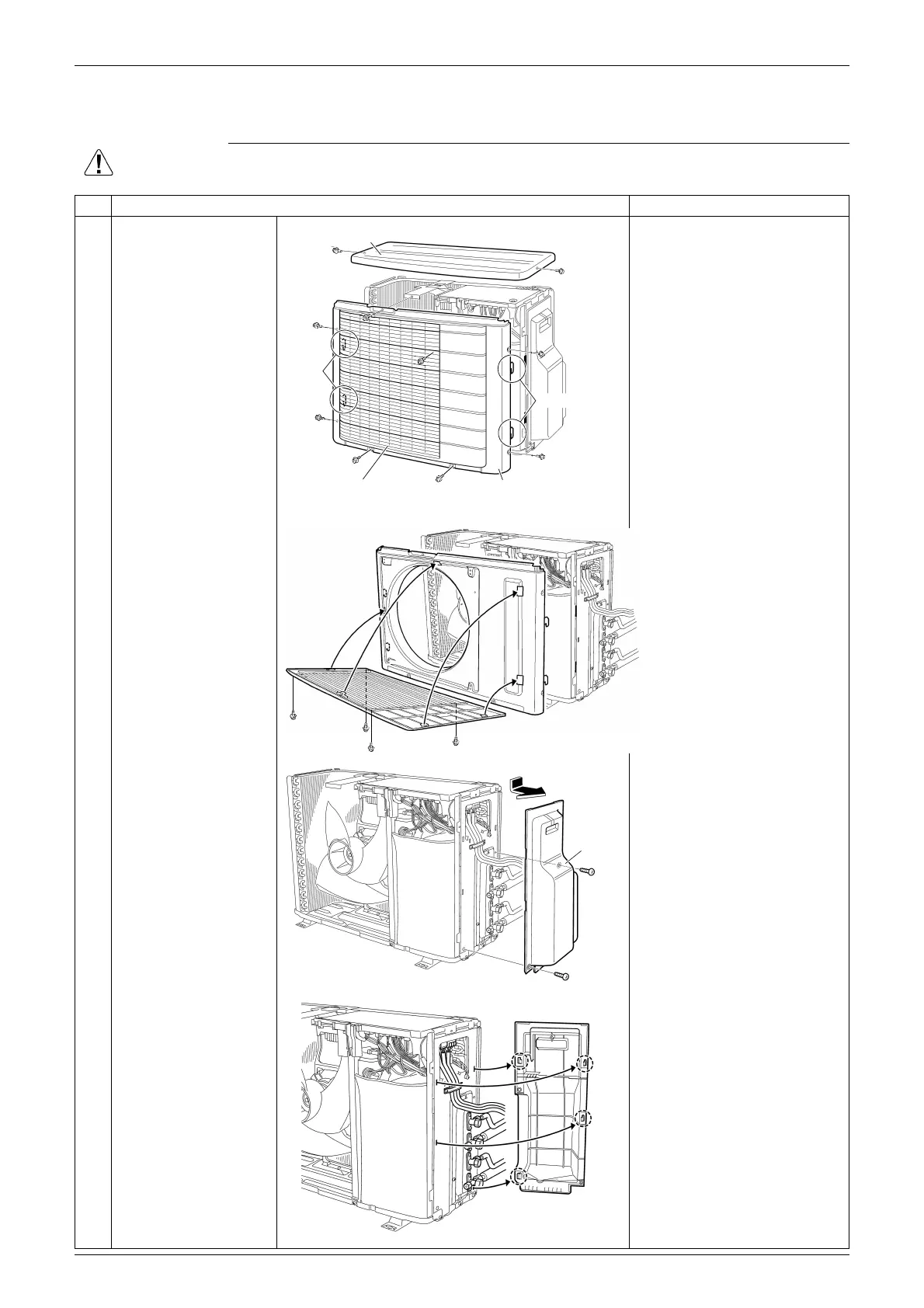

1
Remove the 2 screws
and remove the top
panel.

The front panel has 4 hooks.
2
Remove the 8 screws
and remove the front
panel.
3
Remove the 4 screws
and remove the
discharge grille.
4
Remove the 2 screws
and remove the stop
valve cover.

When reassembling, make
sure to fit the 4 hooks.
(R18653)
Top panel
Hook
Discharge grille
Front panel
Hook
(R12767)

When reassembling, make
sure to fit the 4 hooks.
(R7699)
Stop
valve
cover
(R7701)
