Daikin 2AMX40G3V1B Removal Procedure

Sound Blankets Si121295
12 Removal Procedure
5. Sound Blankets
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step
Procedure Points

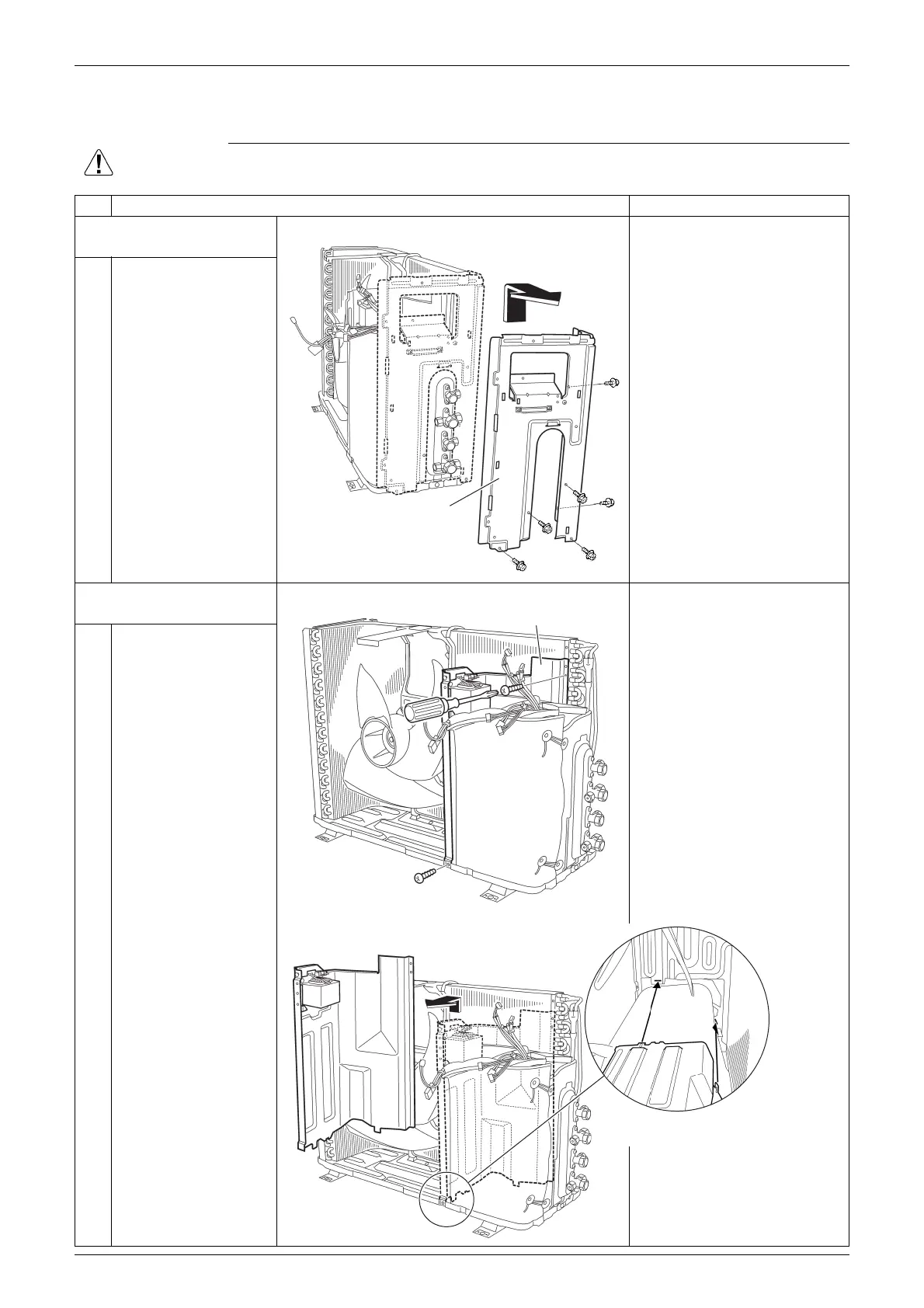

1. Remove the right side
panel.
1
Remove the 6 screws
and remove the right
side panel.
2. Remove the partition
plate.

When reassembling, fit the
lower hooks into the bottom
frame.
1
Remove the 2 screws.
2
The partition plate has
2 hooks on the lower
side. Lift and pull the
partition plate and
remove it.
(R12567)
Right side
panel
(R7611)
Partition plate
(R7612)

Remove the screw to
remove the reactor.
