Daikin 2AMX40G3V1B Removal Procedure

Si121295 Electrical Box

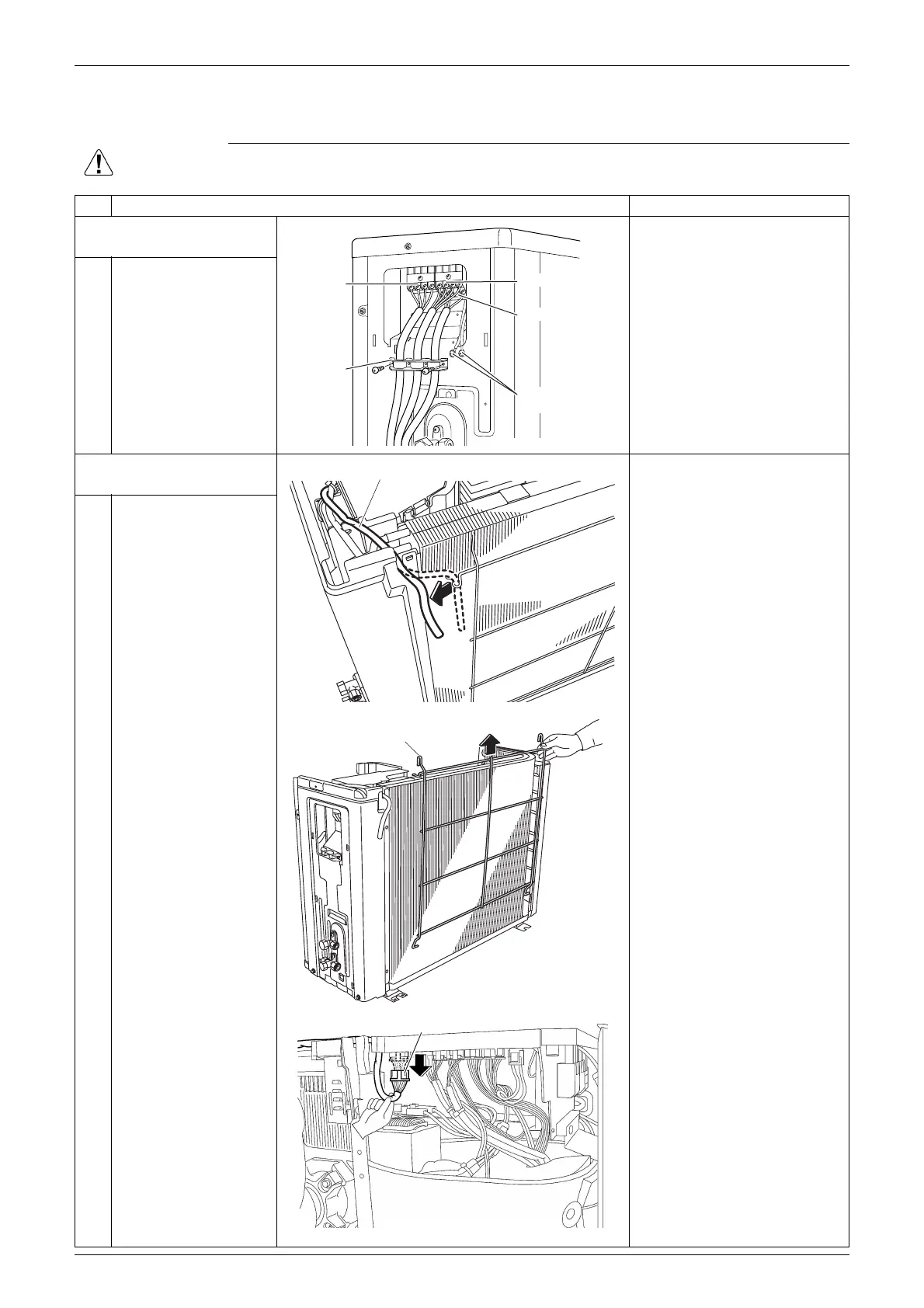

Removal Procedure 5
3. Electrical Box
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step
Procedure Points
1. Disconnect the
connecting wires.

When reassembling, fasten
the wires with screws on the
terminal board.
1
Remove the 2 screws
of earth wires.
Remove the 2 screws
and remove the wire
fixture.
Then remove all the
screws to disconnect
the power supply
cables and the
connecting wires.
2. Remove the electrical
box.
1
Release the outdoor
temperature thermistor.
2
Lift up the guard net
and remove it.
3
Disconnect the
connector [S70].
[S70]: fan motor
4
4
P
Room A
Room B
Power supply
(R18561)
Screw of
earth wire
Wire
fixture
(R7208)
Outdoor temperature thermistor
Guard net
(R7209)
[S70]
(R12529)
