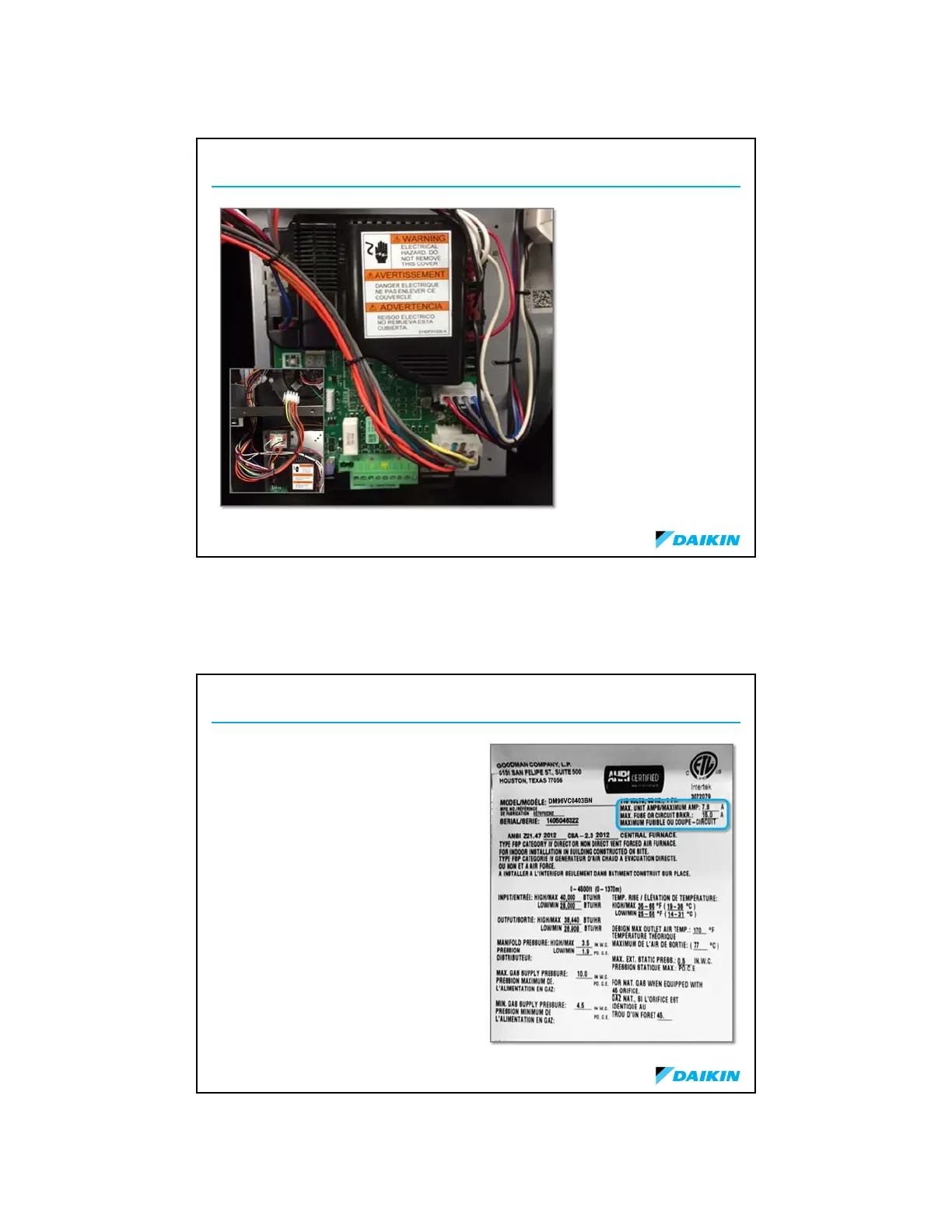

Daikin 90 Plus AFUE - Wiring Harness Overview; 115 Volt Line Power

29
©2014DaikinNorthAmerica,LLC
WiringHarness
 Wiresarecolorcoded
foridentification
purposes.
 Ifanyoftheoriginal
wireassuppliedwith
thefurnacemustbe
replaced,itmustbe
withwiringmaterial
havingatemperature
ratingofatleast105
degreeC.
 Mustalsobea copper
conductor.
©2014DaikinNorthAmerica,LLC
115VoltLineConnections
 Checkfurnacedataplatebefore
installingelectricalconnections.
 Powersupplytothefurnace
mustbeNECClass1,andmust
complywithallapplicablecodes.
 UseaSEPARATEfusedbranch
electricalcircuitcontaining
properlysizedwire,andfuseor
circuitbreaker.
 Anelectricaldisconnectmustbe
providedatthefurnaceloca
tion.

