Daikin Altherma 3 H MT W - To Connect the Domestic Hot Water Pump

9 | Electrical installation
Installer reference guide
118
EPRA08~12EAV3+W1 + ETBH/X12EF6V+9W
Daikin Altherma 3 H MT W
4P634885-1 – 2021.03
B
C
A
A
6 5 4 3
S3SS2S
CB
X5M
34
X5M
6 5

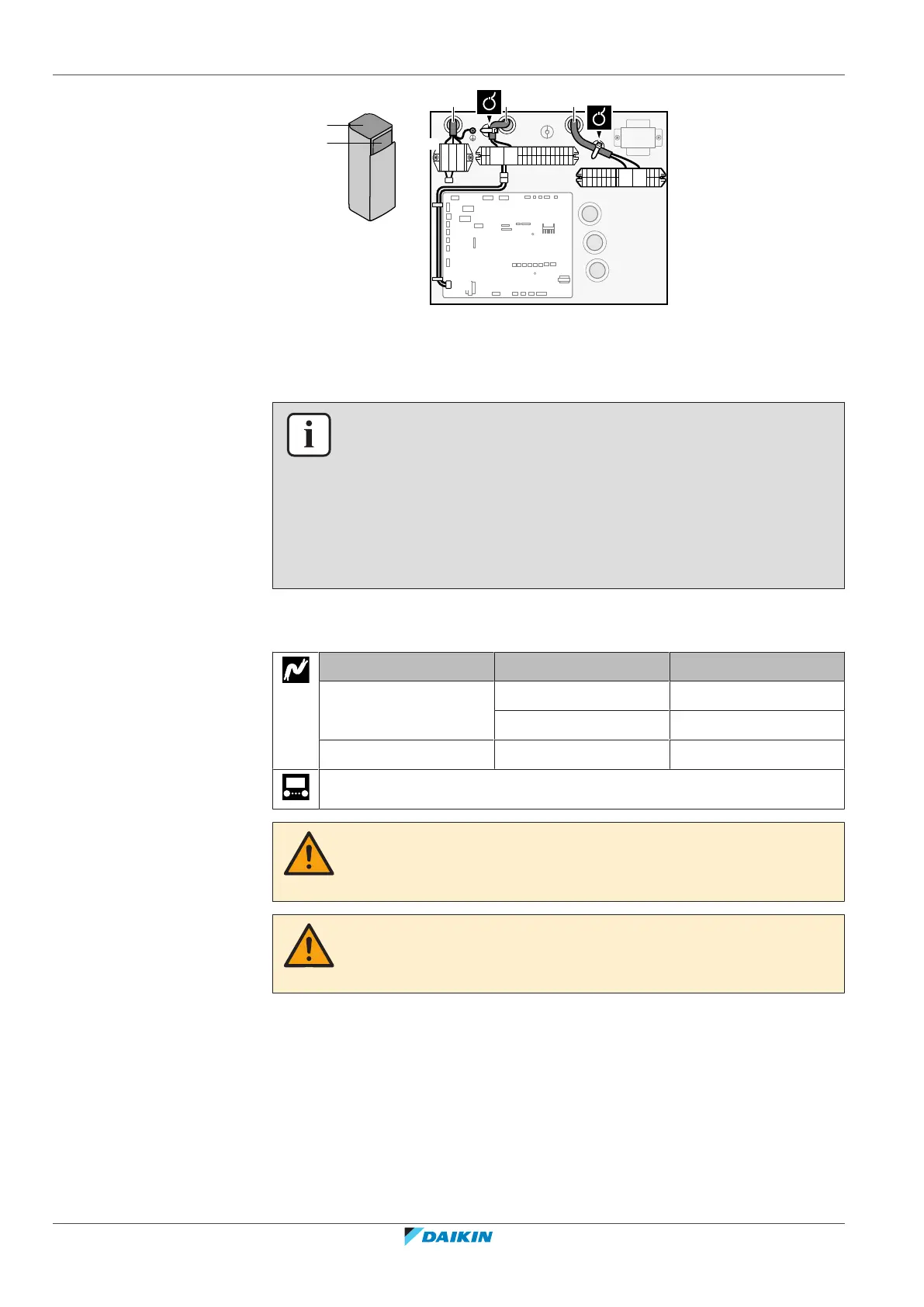

3 Fix the cable with cable ties to the cable tie mountings.
9.3.5 To connect the domestic hot water pump
Wires: (2+GND)×0.75mm²
DHW pump output. Maximum load: 2A (inrush), 230VAC, 1A
(continuous)
[9.2.2] DHW pump
[9.2.3] DHW pump schedule
1 Open the following (see "7.2.5To open the indoor unit"[471]):
1 Front panel
1
2
3
2 Switch box cover
3 Switch box
2 Connect the domestic hot water pump cable to the appropriate terminals as
shown in the illustration below.
