Daikin Altherma HT - Pressure Sensor

Pressure Sensor ESIE09-08B
242 Appendix
5. Pressure Sensor
Low Pressure (P L )
P H = 1.38V-0.69
P
L = 0.57V-0.28
P
H : High pressure (MPa)
V
L : Low pressure (MPa)
V : Voltage (V)
P
H : Detected Pressure [High Side] MPa
P
L : Detected Pressure [Low Side] MPa
V
H : Output Voltage [High Side] V DC
V L : Output Voltage [Low Side] V DC

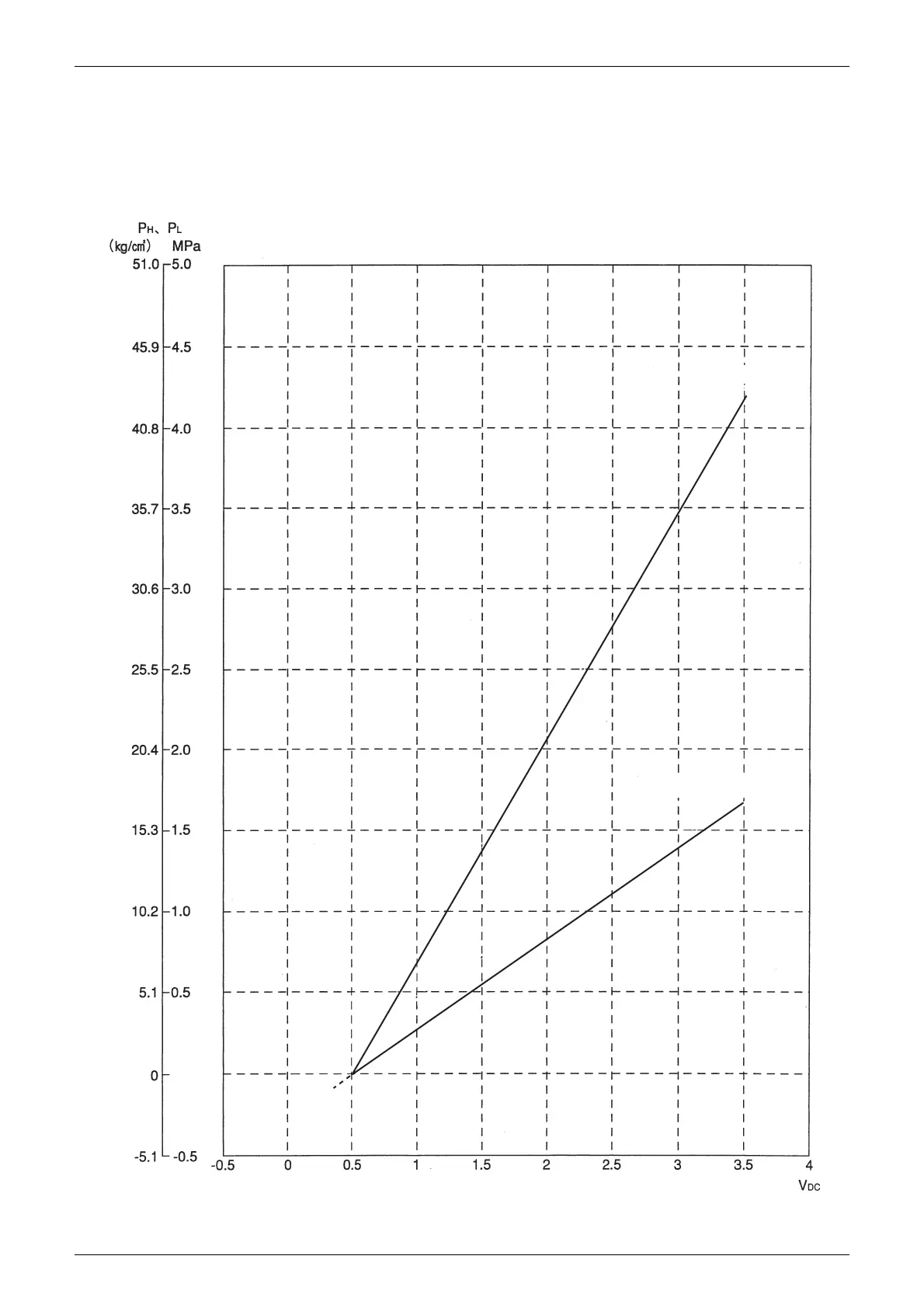

High Pressure (P H )
Low Pressure (P
L )
Detected Pressure
(V3053)
Detected Pressure
Output Voltage (V
H, V L)
