Daikin BRC1E53 - 22-5 Controller + DIII Central Control

Installer reference guide BRC1E53
49
4P419250-1 – 2015.10

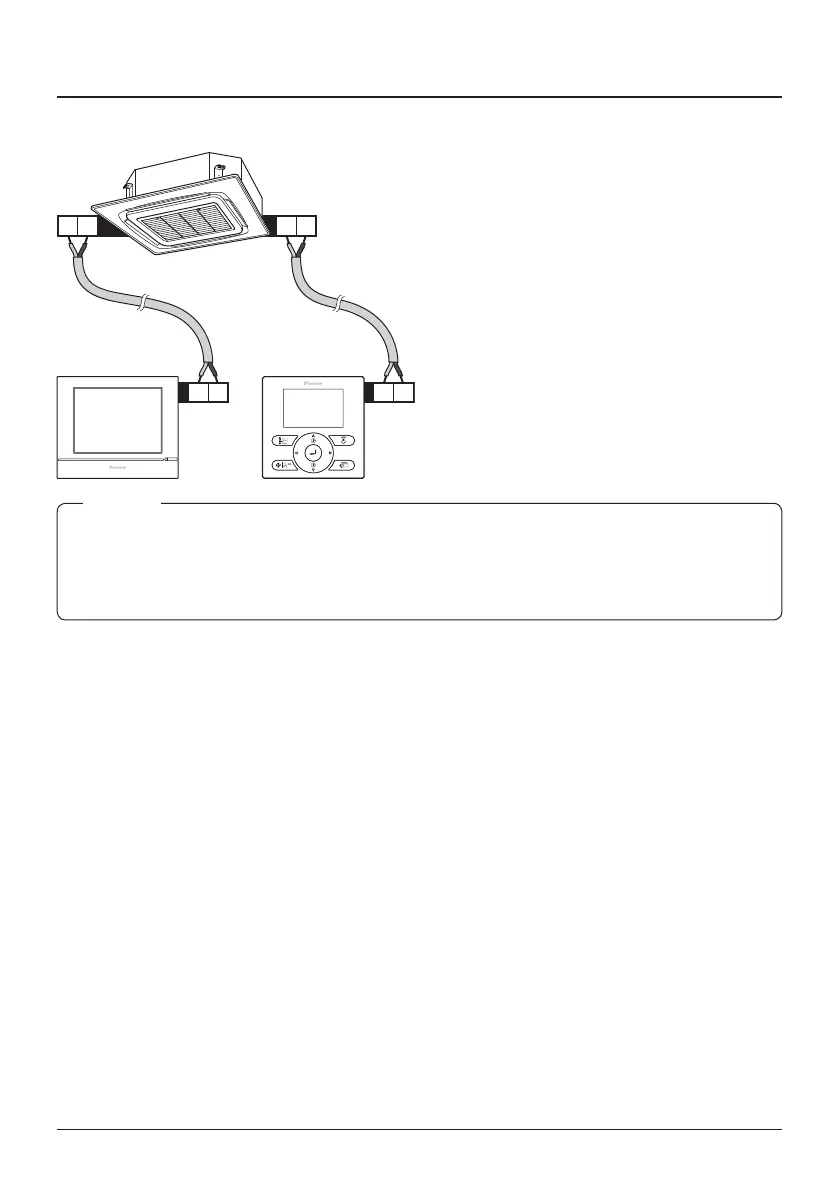

Connection diagram
22-5 Controller + DIII central control equipment
F1 F2 P1 P2
P1 P2F1 F2
If the controller is used together with DIII central control equipment, then …
● … the schedule timer function can be restricted.
● … do not enable setback mode.
NOTE
