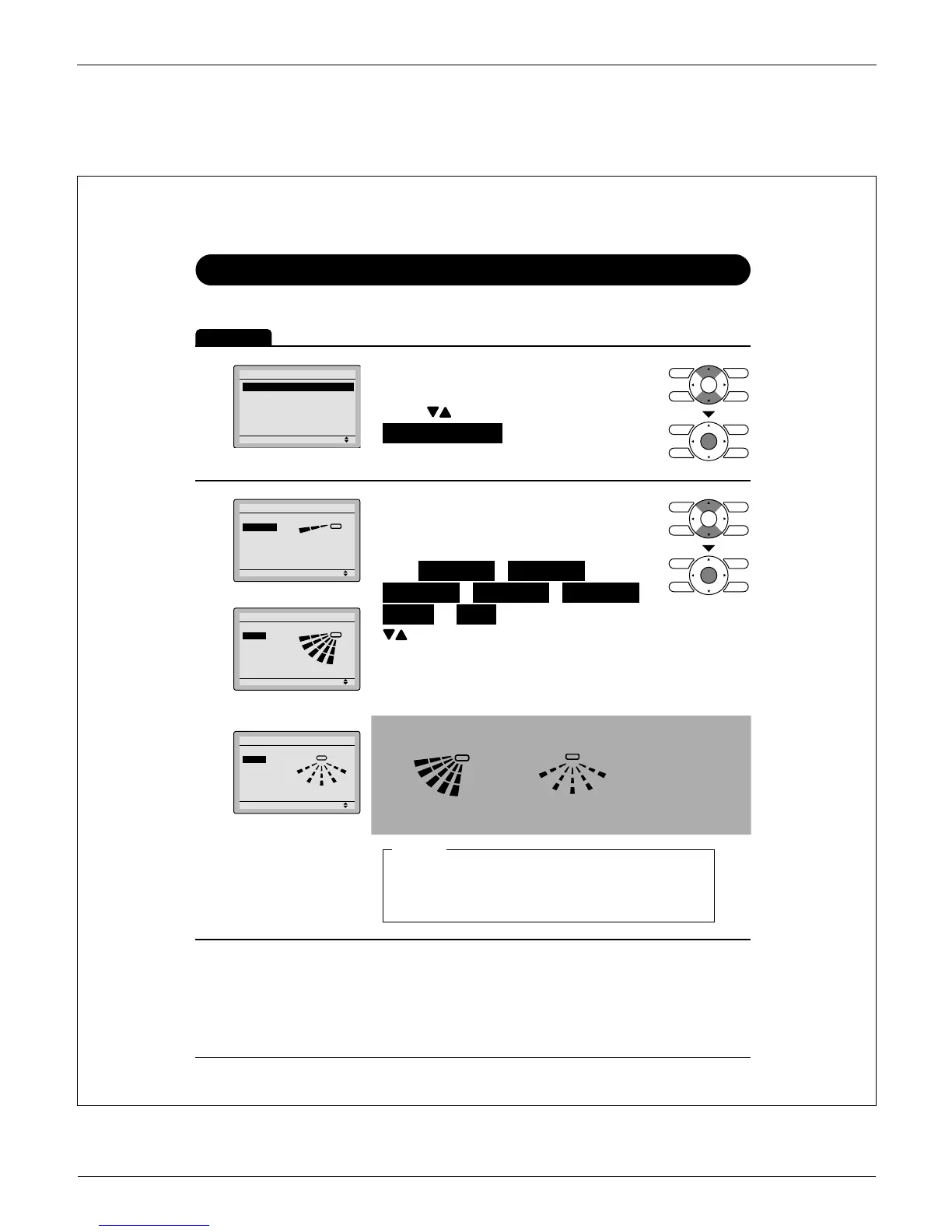

Airfl ow Direction
Confi guring Airfl ow direction 
Operation
1
Setting
Main Menu
Airflow Direction
Individual Airflow Direction
Ventilation
Schedule
Off Timer
Celsius / Fahrenheit
1/3
Display the main menu screen. Ɣ
(See page 22.)
Press Ɣ buttons to select
Airfl ow Direction and press
Menu/OK button.
2
Airflow Direction
Position 0
Setting
Swing
Setting
Airflow Direction
Airfl ow direction
setting (up/down)
Swing
Airflow Direction
Setting
Airfl ow direction
setting (left/right)
(1) Adjusting method when there is single
airfl ow direction.
Select the desired airfl ow direction Ɣ
from Position 0 , Position 1 ,
Position 2 , Position 3 , Position 4 ,
Swing or Auto using
buttons.
Press Ɣ Menu/OK button to confi rm the
settings and to return to the basic
screen.
Note
The airfl ow directions appear on the screen as follows: Ɣ
1
2
3
4
0
Up/down direction
0
1
2
3
4
Left/right direction
0 : Position 0
1 : Position 1
2 : Position 2
3 : Position 3
4 : Position 4
These operation and screen are example of
single airfl ow direction type indoor unit.
It is different from Single fl ow cassette model.
Notice
