Daikin DAR09 - Page 56

56
SERVICING
C
Y
Indoor
Unit

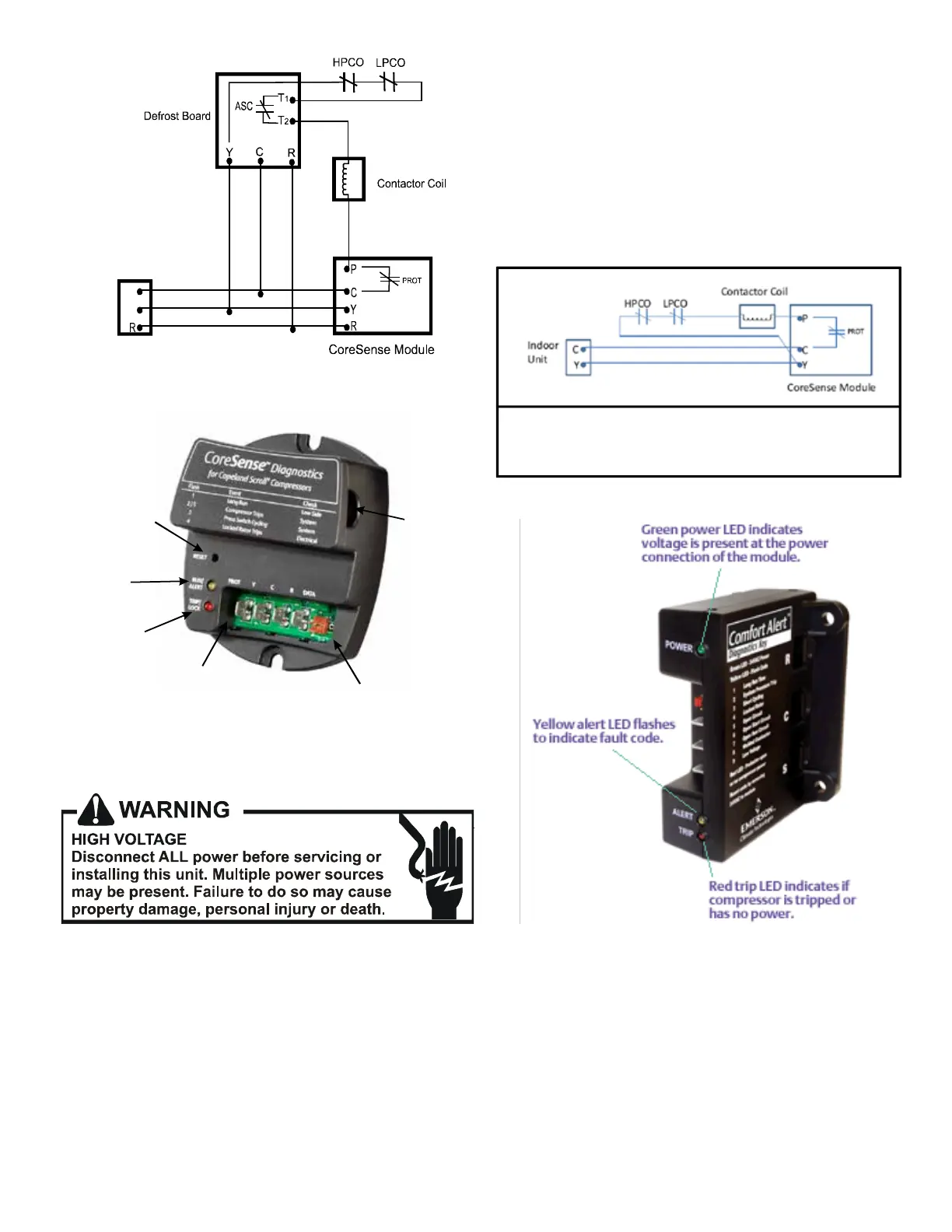

WiringSchemac-3-WireCoreSense™AlertModule
Reset
Switch
Run/Alert
LED
Trip/Lock-Out
Red LED
Protection
Output
Data Port
One
Current
Sensor
Diagnoscs - 2-Wire module
Applies to ASX130[18-60]CA, ASX140[18-36]1CA, ASX140421DA,
and ASX140[48-60]1BA units
The CoreSense™ module is self-contained with no required
external sensors and works with any residenal condensing unit
that has a Copeland Scroll™ compressor inside.
Once aached, CoreSense™ provides around-the-clock mon-
itoring for common electrical problems, compressor defects
and broad system faults. If a glitch is detected, an LED indicator
ashes the proper alert codes to help you quickly pinpoint the
problem. See Diagnosc Table: 2-Wire Comfort Alert™ Module
on following pages.)
Schematic Abbreviation Descriptions
HTCO High Temperature Cut Out Switch
HPCO High Pressure Cut Out Switch
LPCO Low Pressure Cut Out Switch
CC Compressor Contactor
ECB Electronic Control Board
(Defrost or Time Delay)
WiringSchemac-2-WireCoreSense™Module
