Daikin DZK030E4-3 - Wireless Lite Thermostat; DZK Bacnet Interface

11
Installation Manual
Rev. 2.00 Date 01-2019

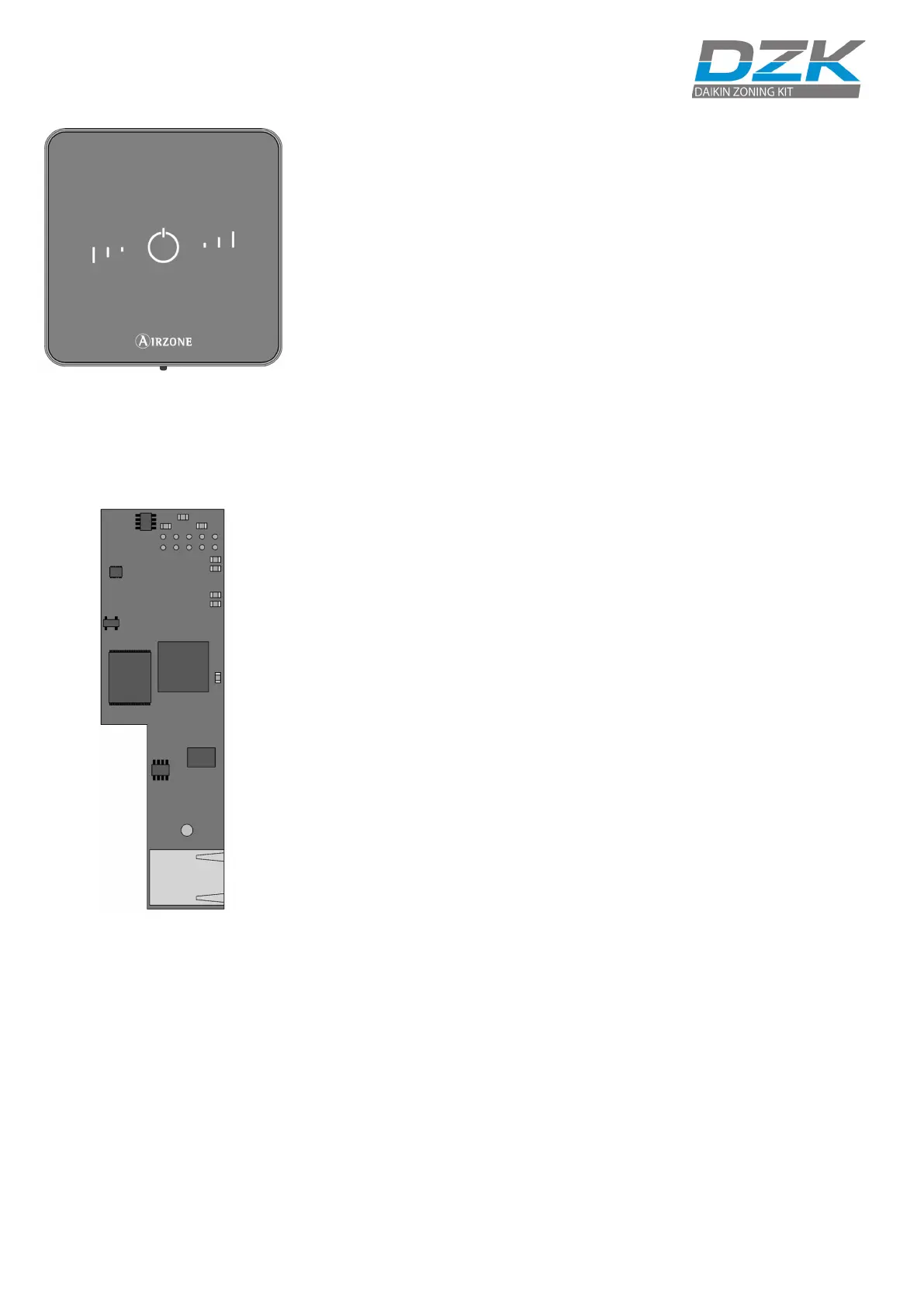

Wireless Lite Thermostat
Thermostat with capacitive buttons for controlling the temperature of the
zones in the DZK systems. Finished in steel and glass. Wireless
communications. Powered by CR2450 button battery (included). Wall
mounted. Functionalities:
• On/Off control of the zone.
• Control of base set point temperature with an increment of
± 1˚F/0.5˚C (default value) or ± 2˚F/1˚F, up to a limit of ±6˚F/3˚C. The
increments are configurable through Main Wired Thermostat. This
base set point temperature can be configured through any Wired
Thermostat.
• Room temperature and relative humidity sensing.
DZK BACnet Interface
The DZK BACnet Interface allows a Building Management System to
control all variables of the DZK systems. The DZK BACnet Interface uses a
standard open protocol based on ASHRAE Standard 135, and its objects
are:
- Compatible with BACnet (ANSI /ASHRAE-135)
- Compatible with BACnet/IP (ISO16484-5)
The DZK BACnet Interface is a Plug&Play device for DZK, and it allows for
control and monitoring of the following variables:
• Indoor Unit status.
• Fan status and Fan Speed.
• Auxiliary Heat stages status.
• Global Ventilation status.
• Operation Mode Control status.
• On/Off control for each zone.
• Set point setting for Cooling and Heating for each zone.
• Room Temperature in each zone.
• Local Ventilation activated/deactivated for each zone.
• Unoccupied Override activate/deactivate.
• Vacation Override activate/deactivate.
• Opening Damper Status for each zone.
• Indoor Unit and DZK errors.
