Daikin DZK030E4-3 - Auto Diagnostics - BACnet Interface; BACnet Interface LED Meanings

44
Installation Manual
Rev. 2.00 Date 01-2019

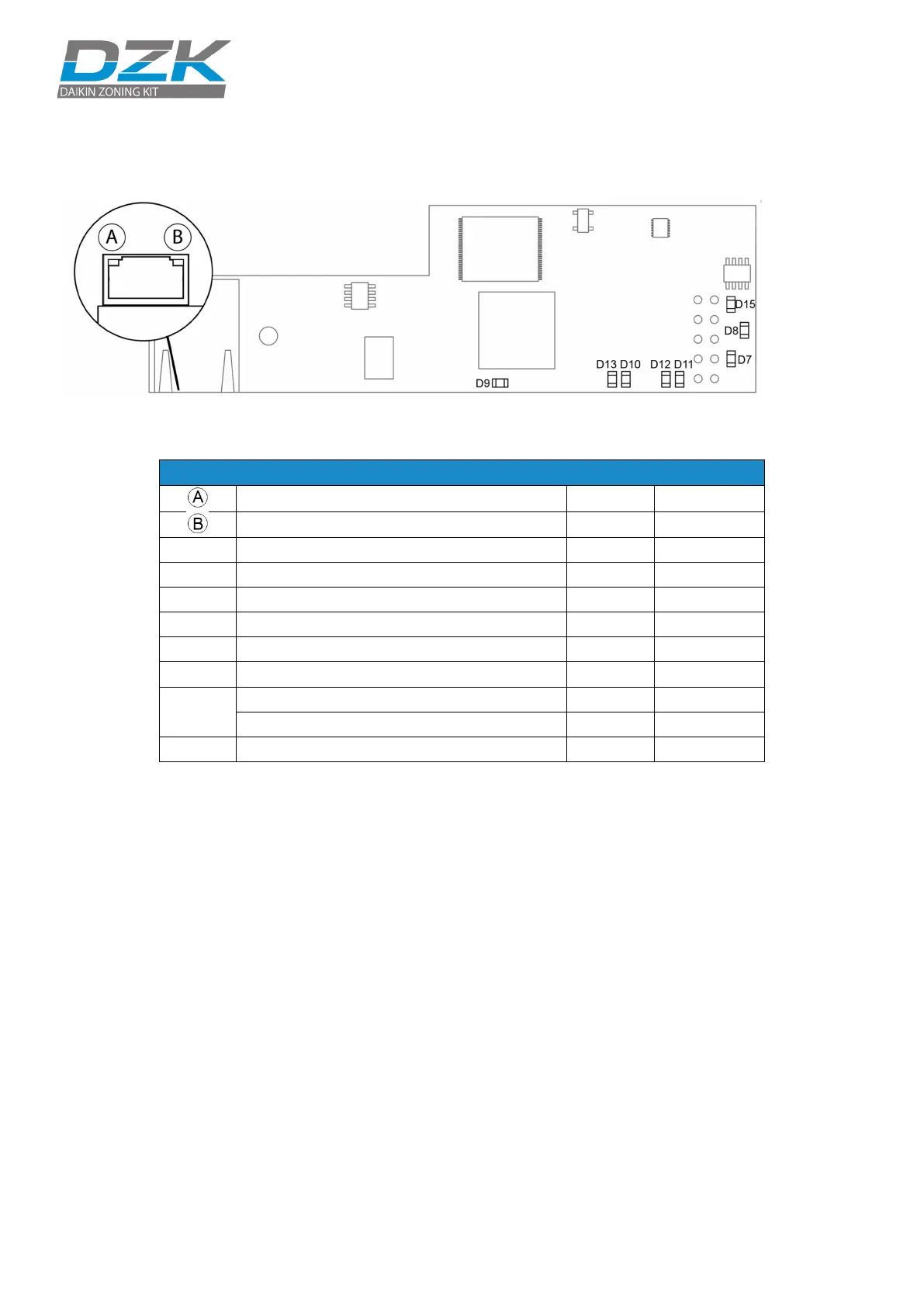

DZK BACNET INTERFACE AUTO DIAGNOSIS
The DZK BACnet Interface have integrated LEDs that detect unusual operations.
All LEDs are On
- Verify the correct connection between the DZK Control Board and the DZK BACnet Interface.
- Contact Technical Support.
Meaning
Ethernet connected
Blinking
Green
Ethernet activity
Blinking
Yellow
D7
Data transmission from automation
Blinking
Red
D8
Data reception from automation bus
Blinking
Green
D9
Microswitch performance
Blinking
Green
D10
Connected to the Internet
Blinking
Green
D11
Network data transmission
Blinking
Red
D12
Network data reception
Blinking
Green
D13
Configured as IP address through DHCP
On
Red
Configured as Fixed IP address
Off
Red
D15
Power supply
Solid
Red
