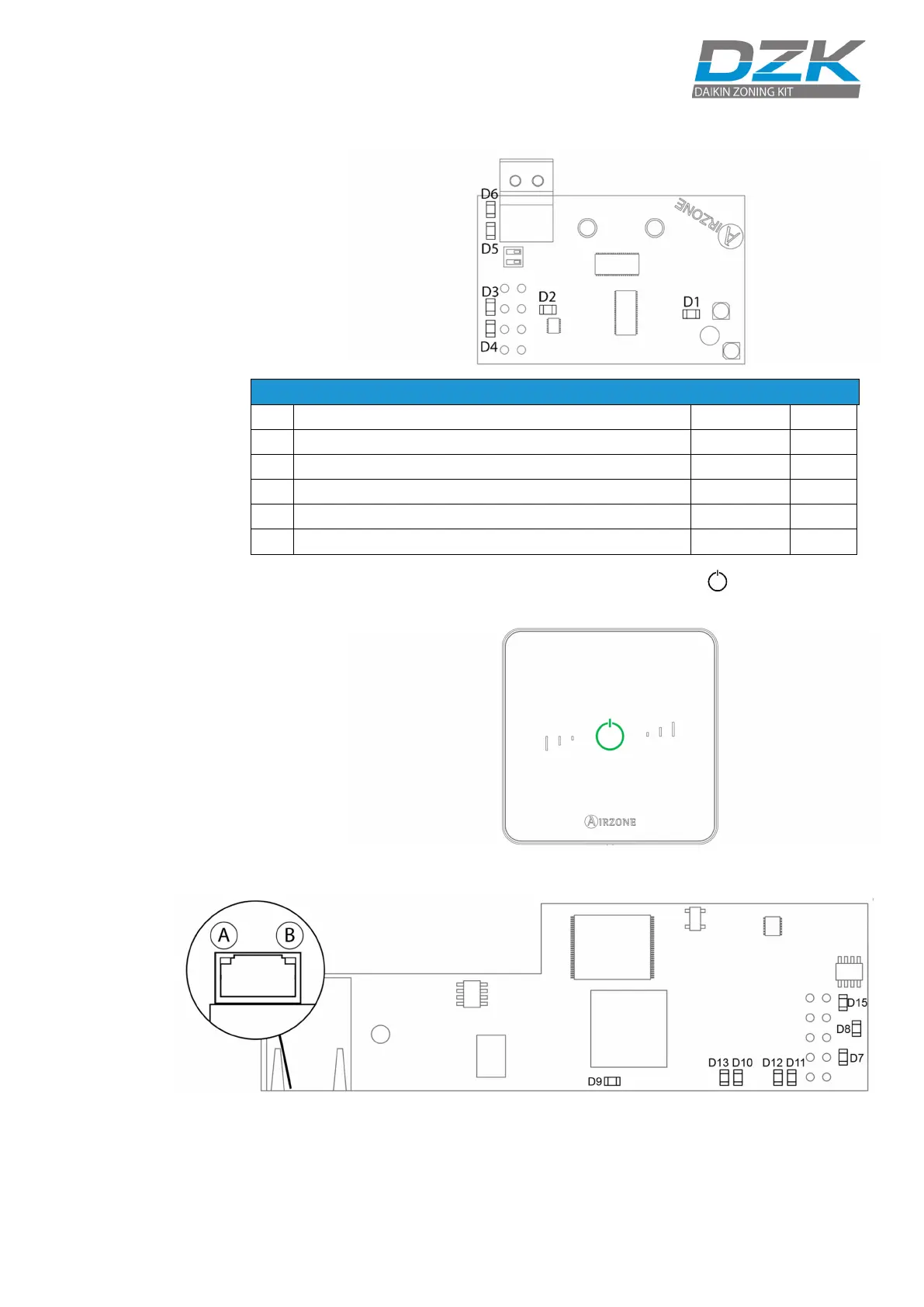

DZK Interface Board. Verify that the LEDs status is correct.
Wireless Lite Thermostat. Verify that the LED will flash green 5
times to confirm the association.
DZK BACnet Interface. Verify that the LEDs status is correct.
Meaning
D1
Interface power supply
Solid
Red
D2
DZK Interface Board internal bus activity
Blinking
Green
D3
Data transmission to Zoning box control board
Blinking
Red
D4
Data reception from Zoning box control board
Blinking
Green
D5
Data transmission to Daikin navigation controller
Blinking
Red
D6
Data reception from Daikin navigation controller
Blinking
Green
