Daikin ERGA06EAV3 - Indoor Unit; To Unpack the Indoor Unit; To Remove the Accessories from the Indoor Unit

4 | About the box
Installer reference guide
22
ERGA04~08EAV3(A) + EHVH04+08SU18+23EA6V
Daikin Altherma 3 R F
4P629090-1 – 2020.08
ENERG
IJAY
IAIE
ENERG
IJAY
IAIE
1×1× 1× 1× 2× 1×
da b c e f
a Outdoor unit installation manual
b Fluorinated greenhouse gases label
c Multilingual fluorinated greenhouse gases label
d Energy label
e Unit mounting plate
f Bolts, nuts, washers, spring washers and wire clamp

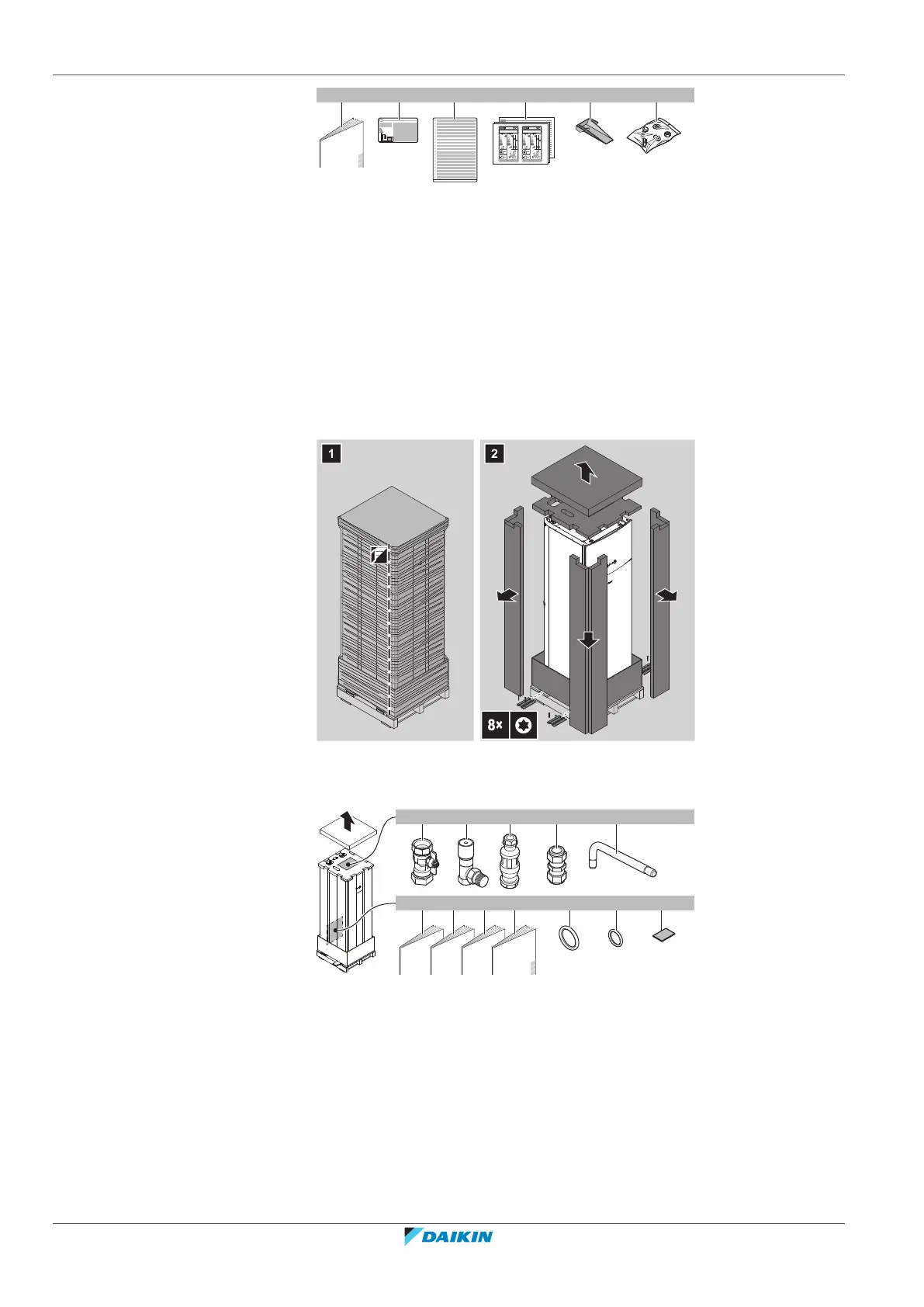

4.3 Indoor unit
4.3.1 To unpack the indoor unit
1 2
8×
4.3.2 To remove the accessories from the indoor unit
1×
4×
8×
1×
1× 1×
4× 1×
1× 1× 1× 1×
a b c d e
j k lf g h i
a Shut-off valves for water circuit
b Overpressure bypass valve
c Tundish (to mount onto the pressure relief valve discharge pipe)
d Brass compression coupler
e Discharge pipe (for pressure relief valve)
f General safety precautions
g Addendum book for optional equipment
h Indoor unit installation manual
i Operation manual
j Sealing rings for shut-off valves (space heating water circuit)
k Sealing rings for field-supplied shut-off valves (domestic hot water circuit)
l Sealing tape for low voltage wiring intake
