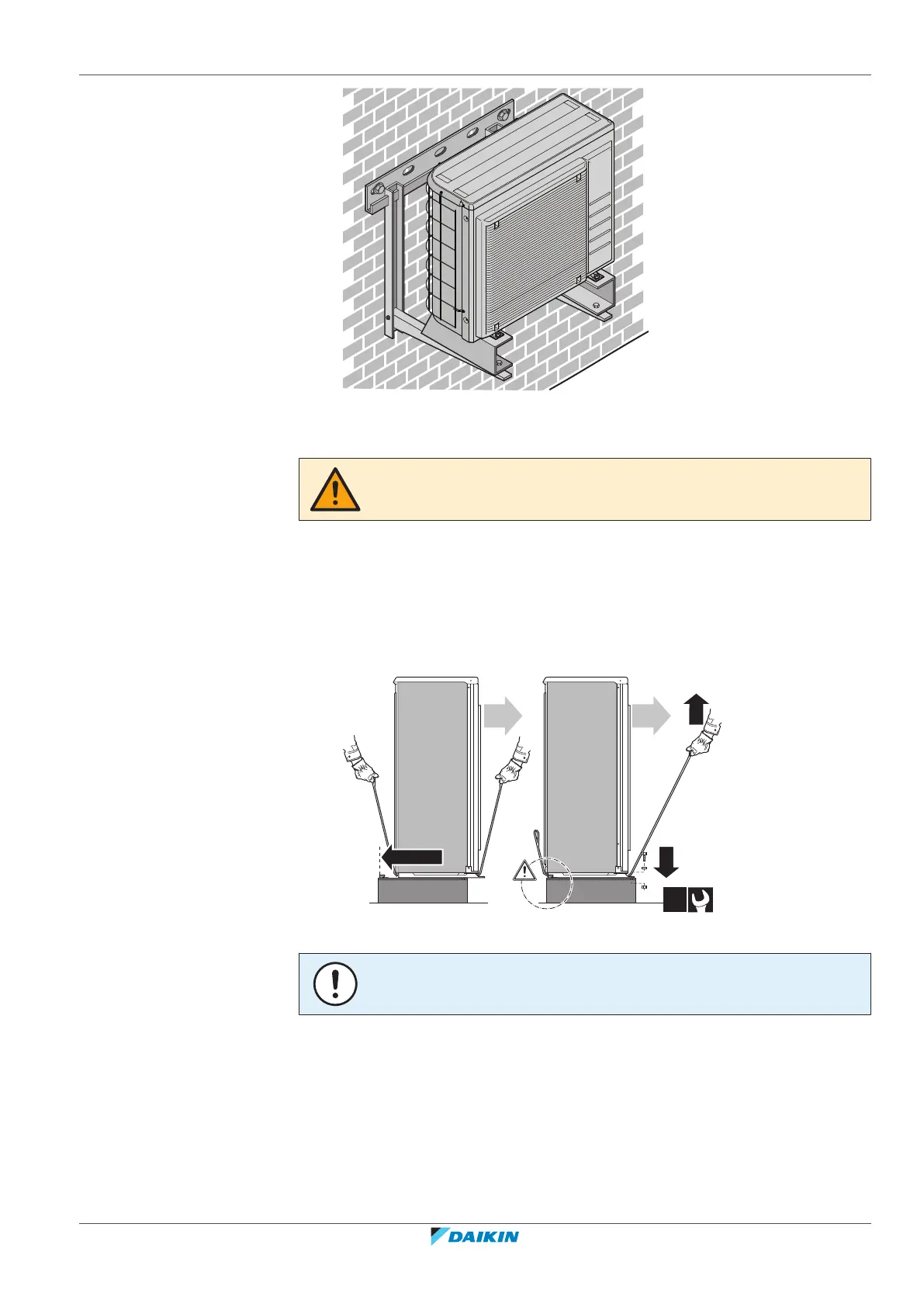

7.3.4 To install the outdoor unit
CAUTION
Do NOT remove the protective cardboard before the unit is installed properly.
1 Lift the outdoor unit as described in "4.2.2To handle the outdoor unit"[421].
2 Install the outdoor unit as follows:
â–ª (1) Put the unit into position (using the sling to the left and the handle to the
right).
â–ª (2) Remove the sling (by pulling 1 side of the sling).
â–ª (3) Fix the unit.
a Air outlet
NOTICE
Properly align the unit. Make sure the backside of the unit does NOT protrude.
3 Remove the protective cardboard and instruction sheet.
