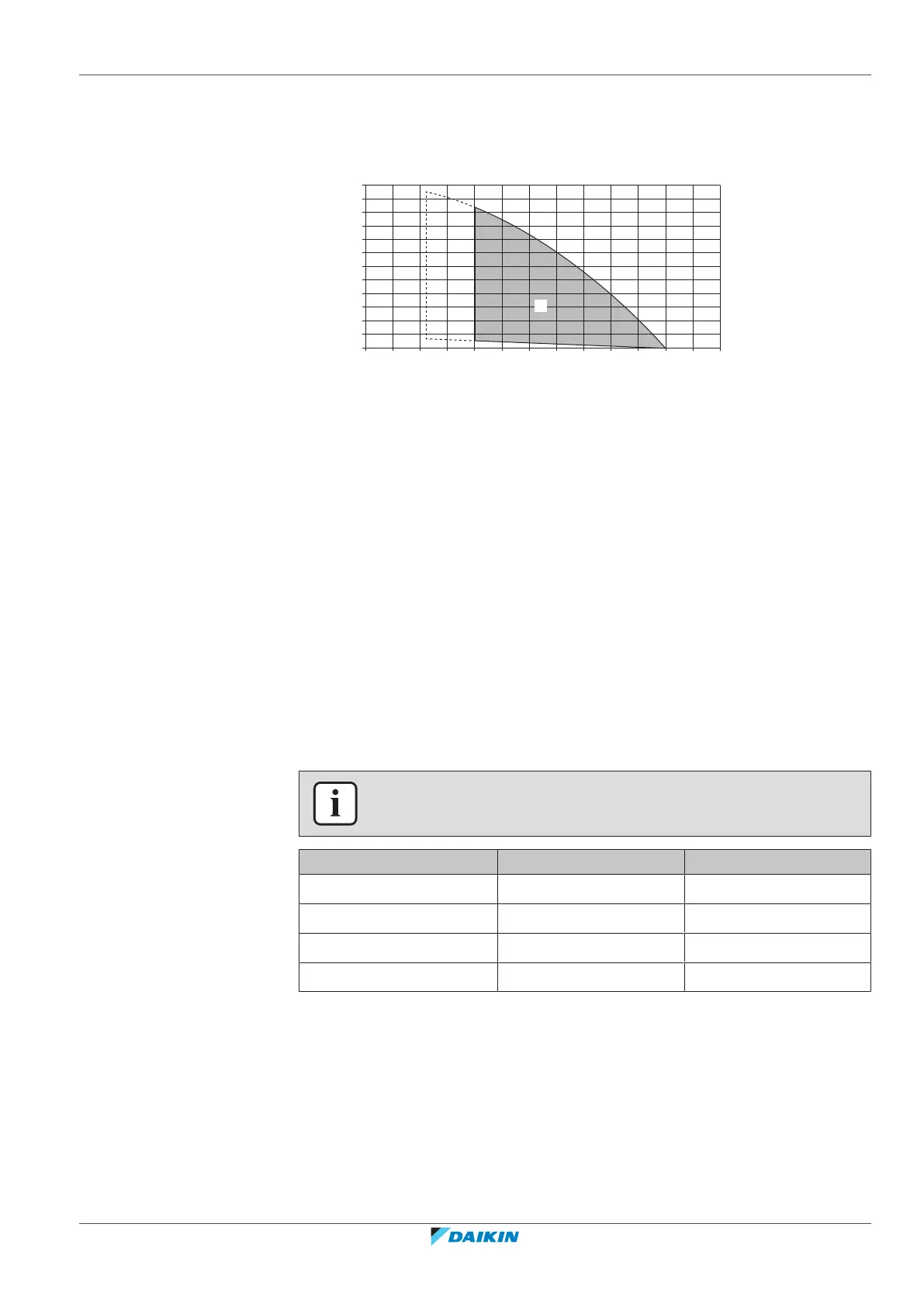

16.8 ESP curve: Indoor unit
Note: A flow error will occur when the minimum water flow rate is not reached.
4D120998
B (l/min)
0
40
60
80
100
30
50
70
90
110
20
0
5 10 15 20 25 30 35 40 45 50 55 60 65
10
120
C
A (kPa)
A External static pressure in the space heating/cooling circuit
B Water flow rate through the unit in the space heating/cooling circuit
C Operation range
Dashed lines: Operation area is extended to lower flow rates only in case the unit
operates with heat pump only. (Not in startup, no backup heater operation, no
defrost operation.)
Notes:
▪ Selecting a flow outside the operating area can damage the unit or cause the unit
to malfunction. See also the minimum and maximum allowed water flow range in
the technical specifications.
▪ Water quality must be according to EU directive 98/83EC.
16.9 Technical specifications: Domestic hot water tank
16.9.1 Test results in accordance with EN12897 (2016)
INFORMATION
This unit has been tested and approved according to BSEN12897:2016
Description Hot water capacity Reheat time
EHVH04SU18EA6V 145l 15min 26sec
EHVH04SU23EA6V 195l 20min 06sec
EHVH08SU18EA6V 145l 15min 26sec
EHVH08SU23EA6V 195l 20min 06sec
