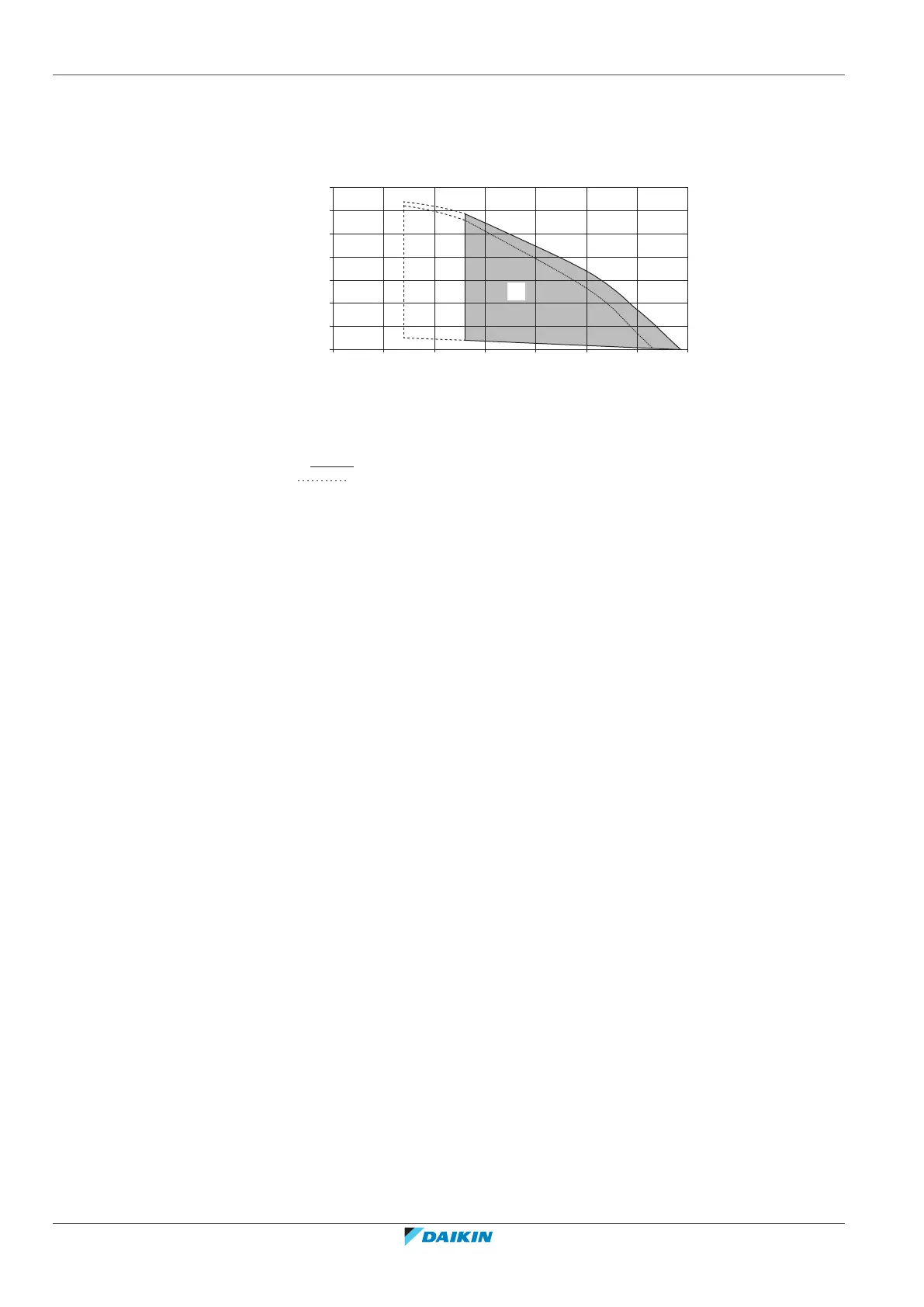

16.5 ESP curve: Indoor unit
Note: A flow error will occur when the minimum water flow rate is not reached.
B (l/min)
A (kPa)
0
0 5 10 15 20 25 30
35
20
30
C
40
50
60
70
10
4D112013
A External static pressure in the space heating circuit
B Water flow rate through the unit in the space heating circuit
C Operation range
Additional/direct zone
Main/mixed zone
Dashed lines: Operation area is extended to lower flow rates only in case the unit
operates with heat pump only. (Not in startup, no backup heater operation, no
defrost operation.)
Notes:
▪ Selecting a flow outside the operating area can damage the unit or cause the unit
to malfunction. See also the minimum and maximum allowed water flow range in
the technical specifications.
▪ Make sure water quality complies with EU directive 2020/2184.
