4.3 Indoor unit
▪ At delivery, the unit MUST be checked for damage. Any damage MUST be
reported immediately to the claims agent of the carrier.
▪ Bring the packed unit as close as possible to its final installation position to
prevent damage during transport.
▪ Unpack the indoor unit completely according to the instructions mentioned on
the unpacking instructions sheet.

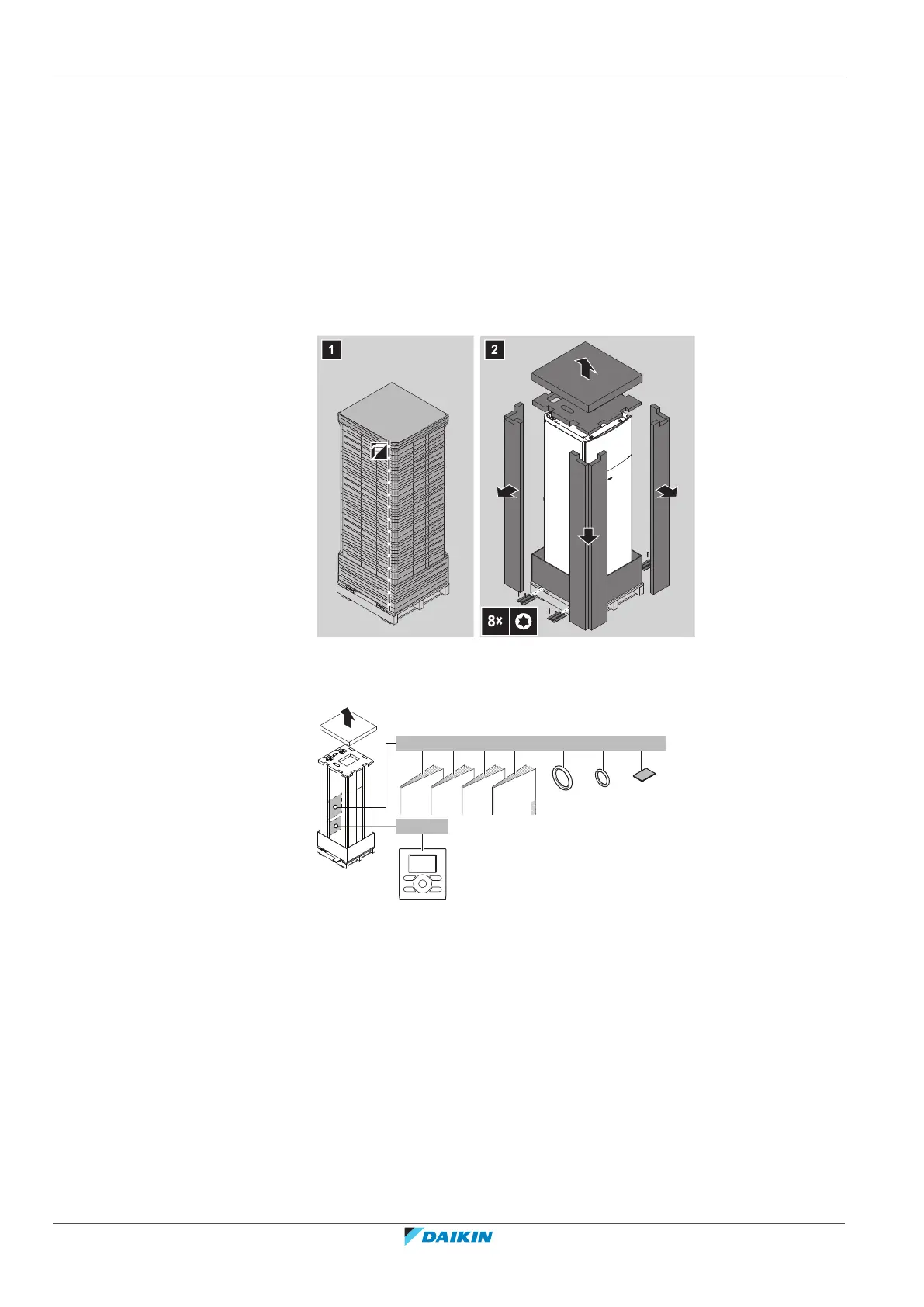

4.3.1 To unpack the indoor unit
4.3.2 To remove the accessories from the indoor unit
6× 4× 1×
1× 1× 1× 1×
e f ga b c d
1×
h
a General safety precautions
b Addendum book for optional equipment
c Indoor unit installation manual
d Operation manual
e Sealing rings for field-supplied shut-off valves (space heating water circuit)
f Sealing rings for field-supplied shut-off valves (domestic hot water circuit)
g Sealing tape for low voltage wiring intake
h Main user interface
4.3.3 To handle the indoor unit
Use the handles at the back and at the bottom to carry the unit.
