7.2.4 To open the indoor unit
Overview
a
b
d
c
e
a Top panel
b Upper front panel
c Switch box cover
d Front panel
e High voltage switch box cover
Open

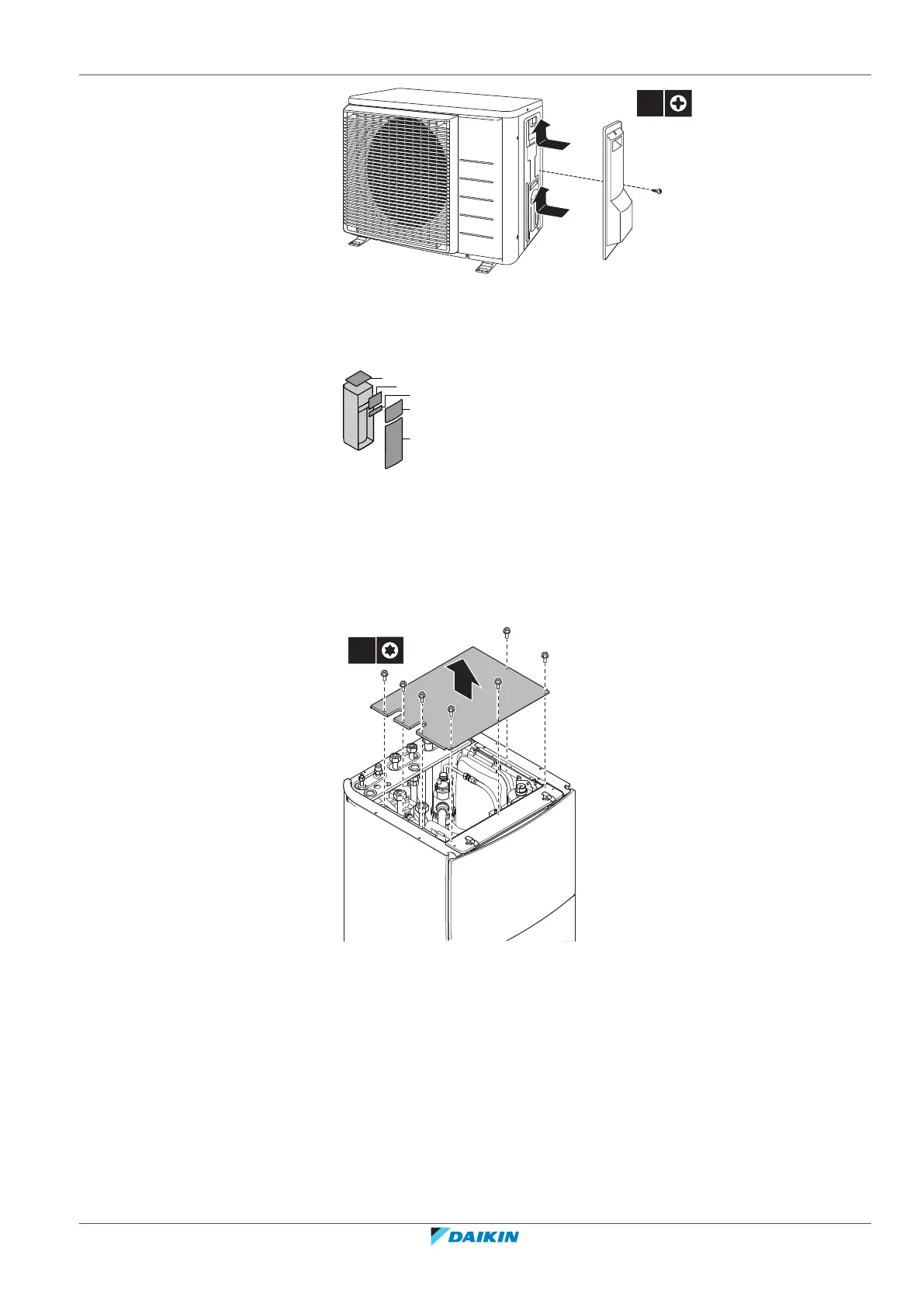

1 Remove the top panel.
7×
T25
2 Remove the upper front panel. Open the hinges at the top and slide the top
panel upwards.
