1 Top panel
1
2
3
2 User interface panel
3 Upper switch box cover

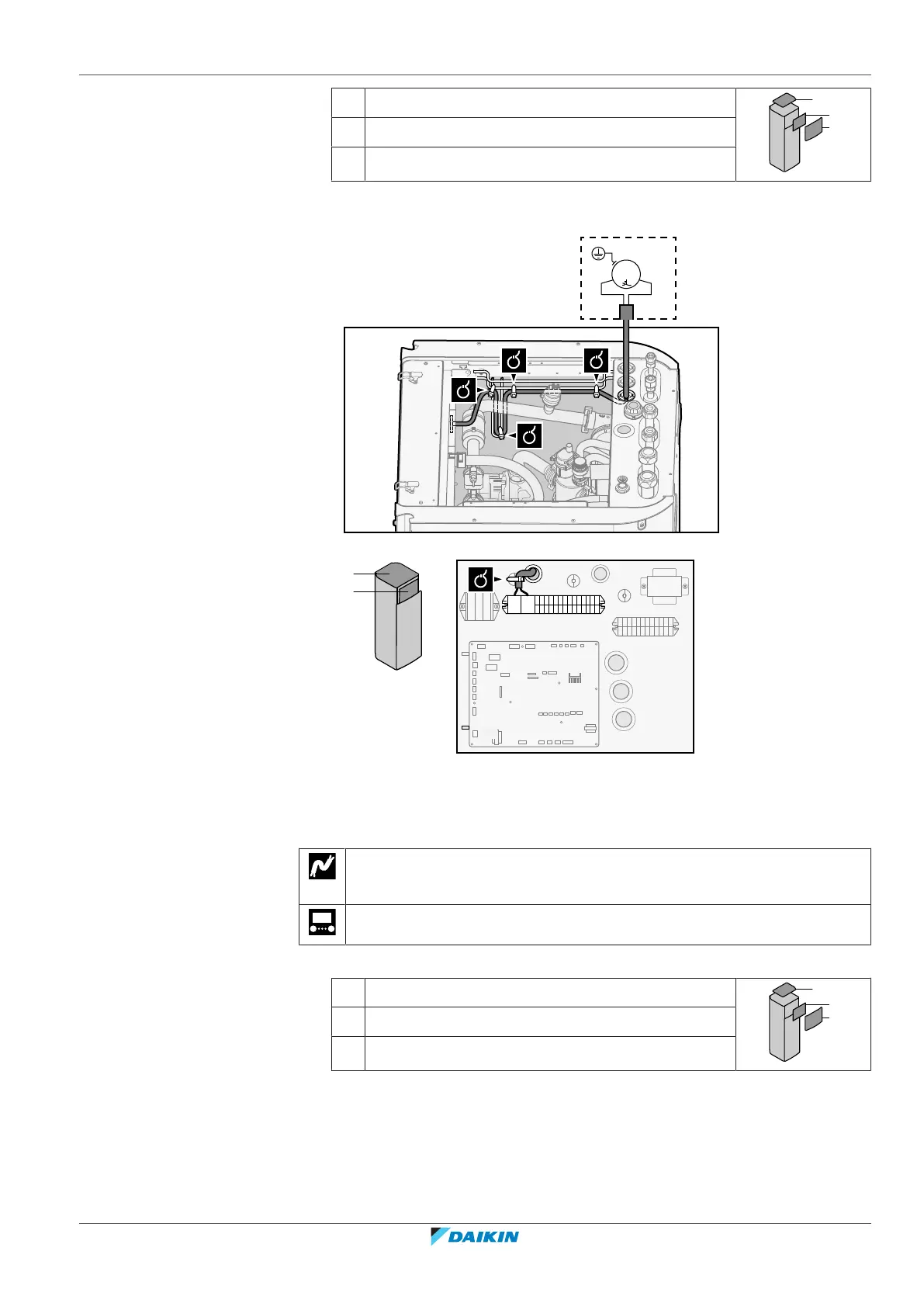

2 Connect the domestic hot water pump cable to the appropriate terminals as
shown in the illustration below.
A
1~
M
M2P
B
A
B
1 2
X2M
3 Fix the cable with cable ties to the cable tie mountings.
9.3.6 To connect the alarm output
Wires: (2+1)×0.75mm²
Maximum load: 0.3A, 250VAC
[9.D] Alarm output
1 Open the following (see "7.2.4To open the indoor unit"[479]):
1 Top panel
1
2
3
2 User interface panel
3 Upper switch box cover
2 Connect the alarm output cable to the appropriate terminals as shown in the
illustration below.
