Daikin ERLA16DAV3 User Manual

7 | Unit installation
Installer reference guide
79
ERLA11~16DAV3+W1 + EBVH16SU23DJ
Daikin Altherma 3 R F
4P655196-1 – 2021.09

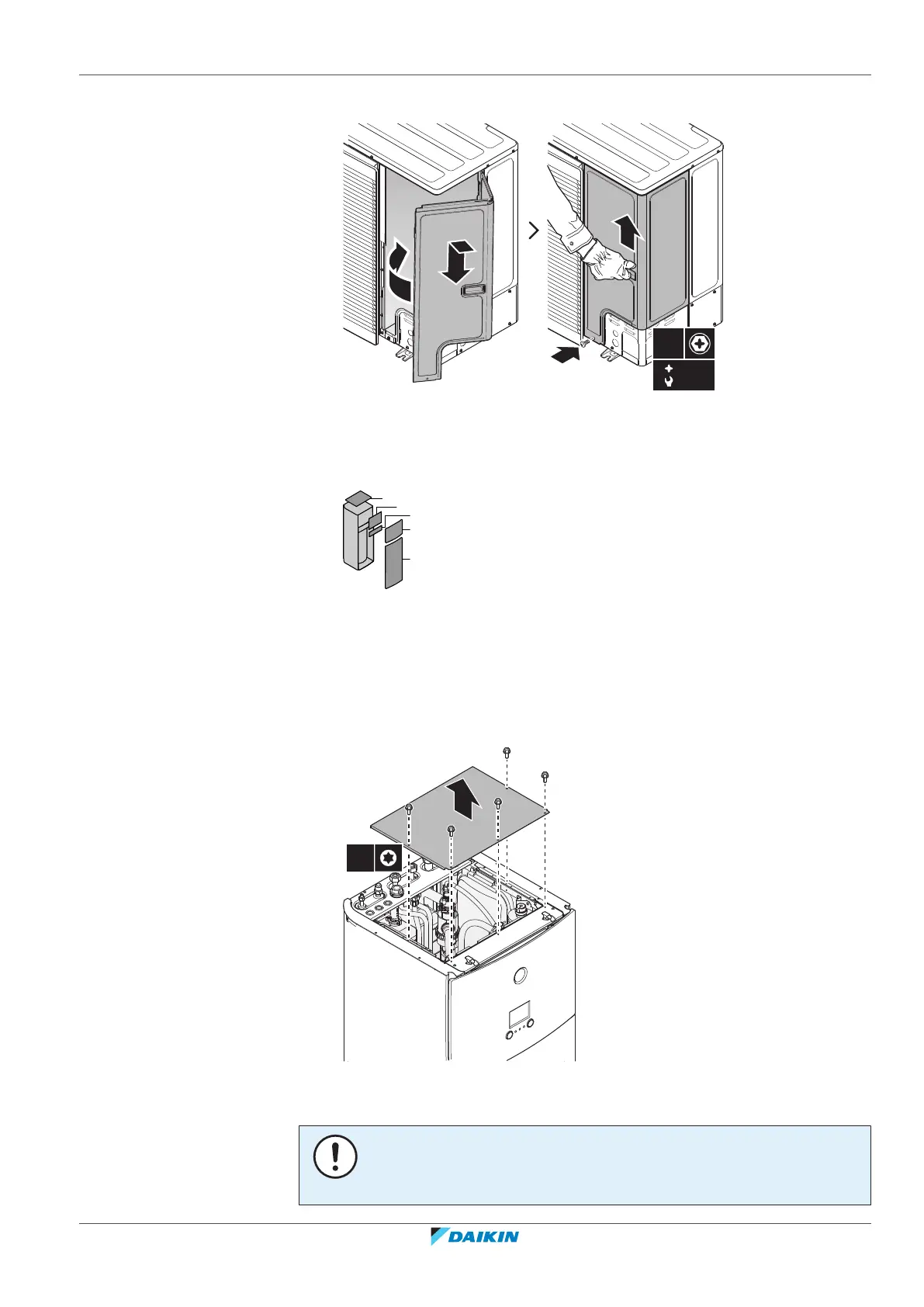

7.2.3 To close the outdoor unit
2
1
1×
PH2
8 mm
4
3
7.2.4 To open the indoor unit
Overview
a
b
d
c
e
a Top panel
b User interface panel
c Switch box cover
d Front panel
e High voltage switch box cover
Open
1 Remove the top panel.
5×
T25
2 Remove the user interface panel. Open the hinges at the top and slide the top
panel upwards.
NOTICE
If you remove the user interface panel, also disconnect the cables from the back of
the user interface panel to prevent damage.
