4 | About the box
Installer reference guide
25
ERLA11~16DAV3+W1 + EBVH16SU23DJ
Daikin Altherma 3 R F
4P655196-1 – 2021.09
2 Remove and discard the transportation stay (b).
3 Remove and discard the spacer (c).
4 Reinstall the nut (a) of the compressor mounting bolt and torque to 10.1N•m.
4.3 Indoor unit
▪ At delivery, the unit MUST be checked for damage. Any damage MUST be
reported immediately to the claims agent of the carrier.
▪ Bring the packed unit as close as possible to its final installation position to
prevent damage during transport.
▪ Unpack the indoor unit completely according to the instructions mentioned on
the unpacking instructions sheet.

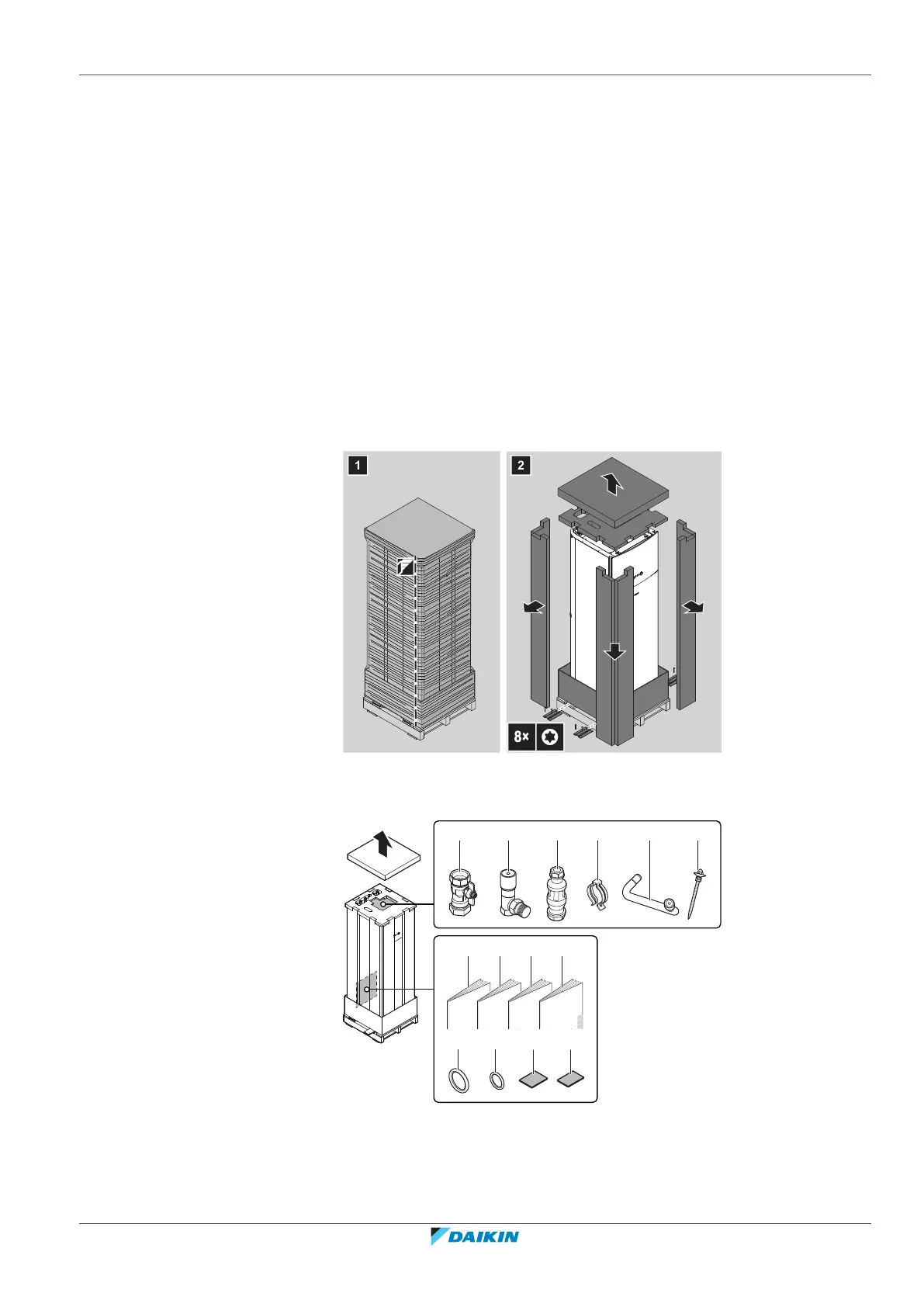

4.3.1 To unpack the indoor unit
1 2
8×
4.3.2 To remove the accessories from the indoor unit
1×
b
2×
a
1×
g
1×
h
1×
i
1×
j
4×
l
4×
k
1×
m
1×
n
1×
c
1× 1×
ed
1×
f
a Shut-off valves for water circuit
b Overpressure bypass valve
c Tundish (to mount onto the pressure relief valve discharge pipe)
d Quick fixture (for the discharge pipe)
e Discharge pipe (for pressure relief valve)
f Cable tie + clip (for the discharge pipe)
